COGIS - WELL SCOUT CARD

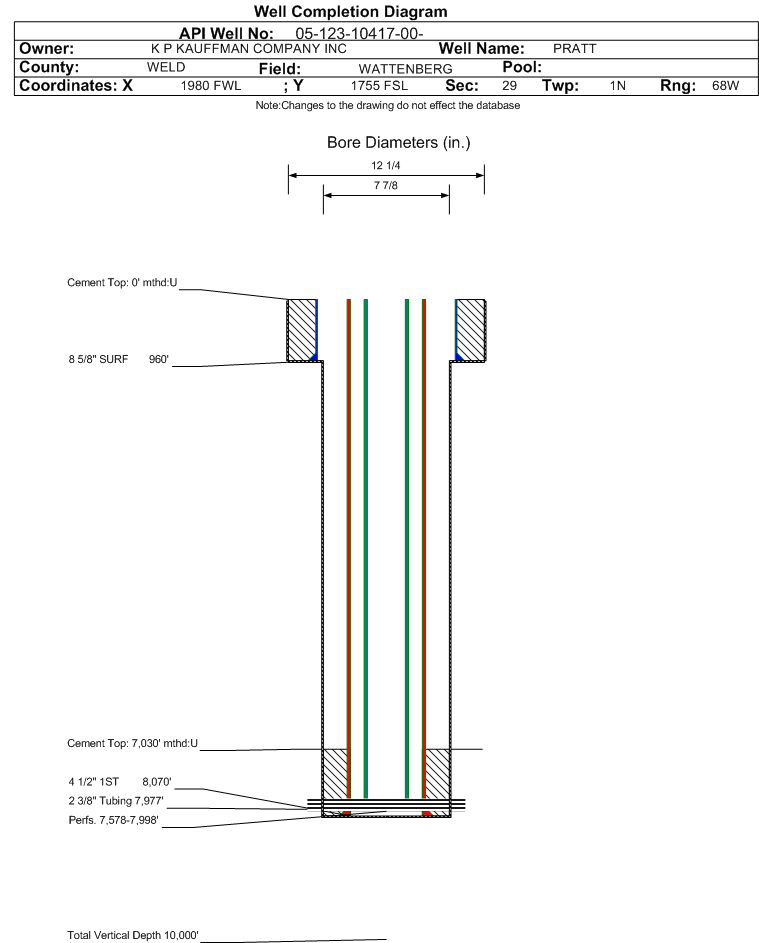

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10417		Well Classification: GW Status: PA - 10/21/2015
Well Name/No:PRATT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/21/2015
FacilityID:242626LocationID:318976
Municipality/County:ERIE / WELD #123Location:NESW 29 1N68W 6
Field:WATTENBERG - #90750Elevation:5142 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1755FSL  1980 FWLLat/Long: 40.019488 / -105.029766Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.020318 / -105.030239Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/21/2015             Measured TD: 8070 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/21/2015
Wellbore Permit
Permit #:20020678 Expiration Date:4/17/2003
Proposed Depth/Form:8600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 0 , Unit Acreage: 40, Drill Unit: NESW
Wellbore Completed
Completion Date:11/20/1981
Spud Date:10/25/1981Spud Date Is:ACTUAL
Measured TD:8070 ft.Measured PB depth:7950 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, DENSITY, CBL, GR DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 960 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 960 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8070 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7030 ft., Bottom: 8070 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7564 ft.
TIMPAS7955 ft.
CODELL7980 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/21/2015                Interval Top: 7578 ft.    Interval Bottom: 7998 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/20/1981
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7977 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/18/2001Test Method:FLOWING
Hours Tested:1Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 9
CALC_BBLS_H2O 72
CALC_BBLS_OIL 216
CALC_GOR 5
CALC_MCF_GAS 984
CASING_PRESS 675
MCF_GAS 41
TUBING_PRESS 600
Perforation Data:
Interval Top:7578 ft.# Of Holes:129
Interval Bottom:7998 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/21/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
