COGIS - WELL SCOUT CARD

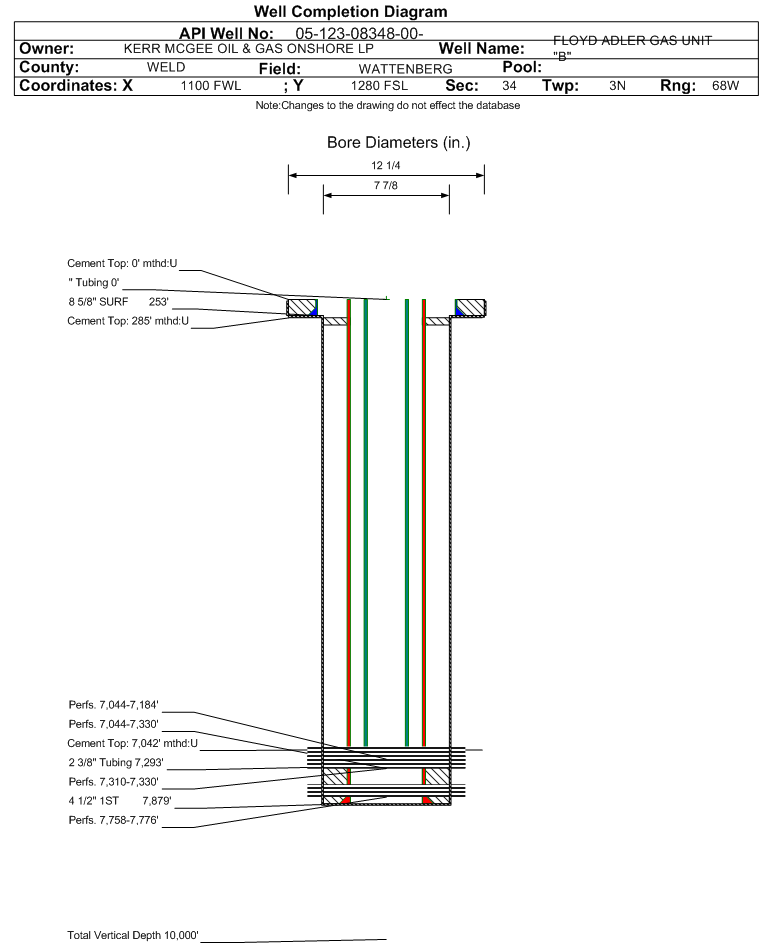

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08348		Well Classification: OW Status: PA - 11/3/2014
Well Name/No:FLOYD ADLER GAS UNIT "B" #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/3/2014
FacilityID:240560LocationID:318077
County:WELD #123Location:SWSW 34 3N68W 6
Field:WATTENBERG - #90750Elevation:4910 ft.
Planned Location:1280FSL  1100 FWLLat/Long: 40.178529 / -104.994387Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.178529 / -104.994387Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 4/26/2012
End Date: 4/26/2012
Reported: 5/24/2012
Days to report: 28
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/3/2014             Measured TD: 7880 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/3/2014
Wellbore Permit
Permit #: Expiration Date:5/10/2012
Proposed Depth/Form:7880 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: SW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 253 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 75, Top: 0 ft., Bottom: 253 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7880 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 7064 ft., Bottom: 7880 ft.
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 400 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 150, Top: 0 ft., Bottom: 400 ft.
Wellbore Completed
Completion Date:7/1/1975
Spud Date:4/17/1975Spud Date Is:ACTUAL
Measured TD:7880 ft.Measured PB depth:7835 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR
Log Types:CBL RAN 4/20/2012
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 253 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 253 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7879 ft., Weight: 10.6/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7042 ft., Bottom: 7882 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 400 ft., Weight: 10.6/11.6, Citings Type: ACTUAL
Cement:Sacks: 150, Top: 250 ft., Bottom: 580 ft., Determination Method: CBL
Casing:String Type: S.C. 2.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7010 ft., Weight: 10.6/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6632 ft., Bottom: 7010 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE215 ft.NN
SUSSEX3970 ft.4290 ft.
SHANNON4576 ft.5400 ft.
NIOBRARA6996 ft.7287 ft.
CODELL7310 ft.7330 ft.
MUDDY J7737 ft.7776 ft.NN
J SAND7758 ft.7776 ft.

Formation JSND                     Formation Classification:  OG                     Status:  AB - 11/3/2014                 Interval Top: 7758 ft.    Interval Bottom: 7776 ft.

 Completed Information for Formation J SAND
1st Production Date:6/11/1975Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/1975
Treatment Summary:315336 GAL, 79800# 100 MESH SN, 403200# 20/40 SN, 115600# 10/20 SN
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 26
CALC_BBLS_H2O 13
CALC_BBLS_OIL 26
CALC_GOR 26154
CALC_MCF_GAS 680
GRAVITY_OIL 60
MCF_GAS 680
TUBING_PRESS 225
Perforation Data:
Interval Top:7758 ft.# Of Holes:37
Interval Bottom:7776 ft.Hole Size:0.36 in.

Formation CODL                     Formation Classification:  OG                     Status:  CM - 11/3/2014                 Interval Top: 7310 ft.    Interval Bottom: 7330 ft.

 Completed Information for Formation CODELL
1st Production Date:12/9/1995Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/17/2012
Treatment Summary:CD PERF 7310-7330 HOLES 80 SIZE 0.38 4/11/2012 -SET SAND PLUG OVER CODL/JSND FOR NB REC 4/26/2012 -FRAC NBRR 5/01/2012 -PRODUCE NBRR, CODL/JSND UNDER PLUG 5/11/2012 -CLEAN OUT SAND OVER CODL TO COMMINGLE PRODUCTION, LEAVE PLUG @ 7550' OVER JSND 5/17/2012 -COMMINGLE NB/CD PRODUCTION, JSND UNDER PLUG
Formation Treatment
Treatment Date:11/15/2005
Treatment Summary:DIVERTAFRAC; PUMPED 71 BBLS OF GEL AND 215 BBLS OF GEL W/ 4500# OF 20/40 SN. FLUSH 102 BBLS OF GEL CODELL FRAC PUMPED 476 BBLS OF GEL AND 781 BBLS OF GEL W/ 225000# 20/40. FLUSH W/ 29 BBLS 2% KCL. MAX RSO 6,680. MAX RATE 17.0 BPM // 123,582 GALS FLUID & 261,160 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 9
BTU_GAS 1162
CALC_BBLS_H2O 0
CALC_BBLS_OIL 9
CALC_GOR 12222
CALC_MCF_GAS 110
CASING_PRESS 310
GRAVITY_OIL 52
MCF_GAS 110
TUBING_PRESS 220
Perforation Data:
Interval Top:7310 ft.# Of Holes:80
Interval Bottom:7330 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 2/6/2015                  Interval Top: 7044 ft.    Interval Bottom: 7330 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/17/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2012
Treatment Summary:NB PERF 7044-7184 HOLES 66 SIZE 0.42 CD PERF 7310-7330 HOLES 80 SIZE 0.38 4/26/2012 -FRAC NBRR 5/01/2012 -PRODUCE NBRR, CODL/JSND UNDER PLUG 5/17/2012 -COMMINGLE NB/CD PRODUCTION, JSND UNDER PLUG
Tubing Size:2.375 in.Tubing Setting Depth:7293 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/18/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
BTU_GAS 1255
CALC_BBLS_OIL 2
CALC_GOR 10000
CALC_MCF_GAS 20
CASING_PRESS 1350
GRAVITY_OIL 52
MCF_GAS 20
TUBING_PRESS 1350
Perforation Data:
Interval Top:7044 ft.# Of Holes:146
Interval Bottom:7330 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 11/3/2014                 Interval Top: 7044 ft.    Interval Bottom: 7184 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:5/1/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2012
Treatment Summary:NB PERF 7044-7184 HOLES 66 SIZE 0.42 4/26/2012 -Frac NBRR down 2.875" tbg w/ pkr ^ ni w/ 252 gal 15% HCl & 245,868 gal slickwater w/ 204,940# 40/70, 4,000# 20/40. Broke @ 4,366 psi @ 6.1 bpm. ATP=6,351 psi; MTP=6,718 psi; ATR=26.9 bpm; ISDP=2,980 psi 5/01/2012 -PRODUCE NBRR, CODL/JSND UNDER PLUG 5/17/2012 -COMMINGLE NB/CD PRODUCTION, JSND UNDER PLUG
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 5
BTU_GAS 1255
CALC_BBLS_OIL 5
CALC_GOR 10000
CALC_MCF_GAS 50
CASING_PRESS 900
GRAVITY_OIL 52
MCF_GAS 50
Perforation Data:
Interval Top:7044 ft.# Of Holes:66
Interval Bottom:7184 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/03/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
