COGIS - WELL SCOUT CARD

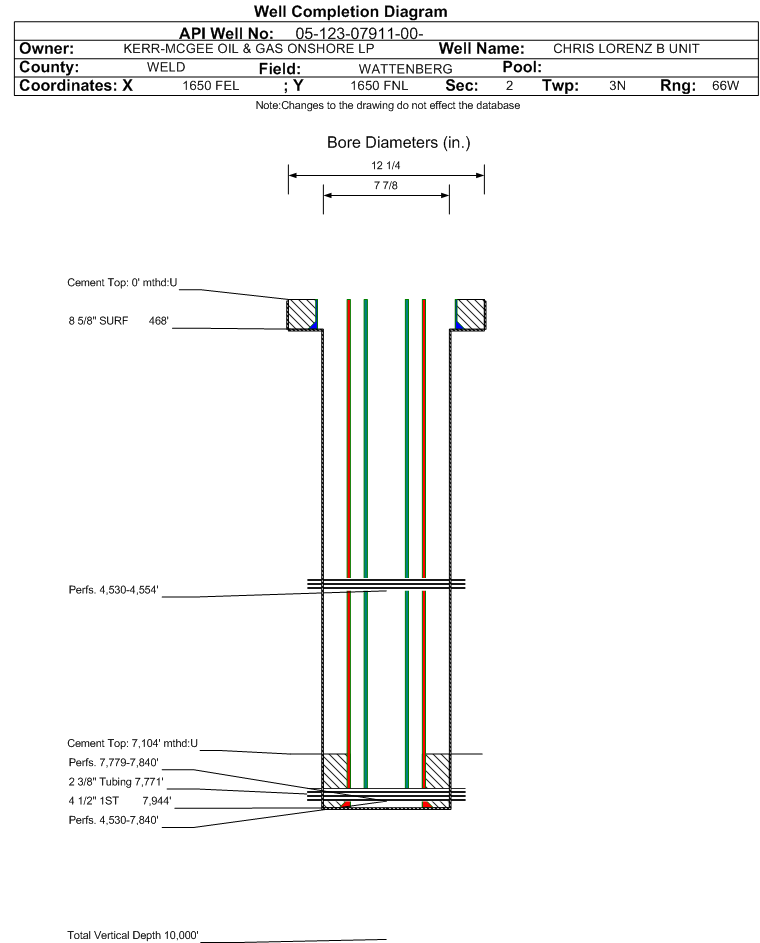

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07911		Well Classification: GW Status: PA - 4/16/2013
Well Name/No:CHRIS LORENZ B UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/16/2013
FacilityID:240123LocationID:317885
County:WELD #123Location:SWNE 2 3N66W 6
Field:WATTENBERG - #90750Elevation:4857 ft.
Planned Location:1650FNL  1650 FELLat/Long: 40.256656 / -104.740879Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.256600 / -104.740569Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/16/2013             Measured TD: 7945 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/16/2013
Wellbore Permit
Permit #:19730888 Expiration Date:5/15/1992
Proposed Depth/Form:7940 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 493 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:12/27/1973
Spud Date:11/1/1973Spud Date Is:ACTUAL
Measured TD:7945 ft.Measured PB depth:7892 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES,FDC,GR,CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 468 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 468 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7944 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7104 ft., Bottom: 7944 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4444 ft.NN
NIOBRARA6999 ft.NN
CODELL7318 ft.NN
J SAND7762 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/16/2013                 Interval Top: 7779 ft.    Interval Bottom: 7840 ft.

 Completed Information for Formation J SAND
1st Production Date:12/19/1973Choke Size:0.750 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/27/1973
Treatment Summary:182,754 GAL; 151,200# 100 MESH SAND; 100,800# 20/40 SAND; 16,200# 10/20 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/26/1973Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 45
CALC_BBLS_H2O 22
CALC_BBLS_OIL 45
CALC_GOR 32155
CALC_MCF_GAS 1447
MCF_GAS 1447
Perforation Data:
Interval Top:7779 ft.# Of Holes:122
Interval Bottom:7840 ft.Hole Size:0.5 in.

Formation J-SX                     Formation Classification:  GW                     Status:  CM - 4/16/2013                 Interval Top: 4530 ft.    Interval Bottom: 7840 ft.

 Completed Information for Formation J & SUSSEX
1st Production Date:N/AChoke Size:
Formation Name:J & SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/27/1973
Treatment Summary:COMMINGLED.
Tubing Size:2.375 in.Tubing Setting Depth:7771 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/29/1996Test Method:FLOWING
Hours Tested:13.5Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 60
BBLS_OIL 20
CALC_BBLS_H2O 106.67
CALC_BBLS_OIL 35.56
CALC_GOR 18950
CALC_MCF_GAS 705.78
CASING_PRESS 300
MCF_GAS 397
TUBING_PRESS 430
Perforation Data:
Interval Top:4530 ft.# Of Holes:314
Interval Bottom:7840 ft.Hole Size:0.5 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 4/16/2013                 Interval Top: 4530 ft.    Interval Bottom: 4554 ft.

 Completed Information for Formation SUSSEX
1st Production Date:1/10/1992Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/27/1973
Treatment Summary:FRAC DOWN CASING. PAD 1800 GAL 35# GEL. PUMPED 52,500 GAL 35# GEL; & 288,000# 20/30 SAND. FLUSHED W/52 BBLS OF KCL. ATP 1600 PSI. AIR 35 PBM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 30
CALC_BBLS_H2O 30
Perforation Data:
Interval Top:4530 ft.# Of Holes:192
Interval Bottom:4554 ft.Hole Size:0.5 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/16/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
