COGIS - WELL SCOUT CARD

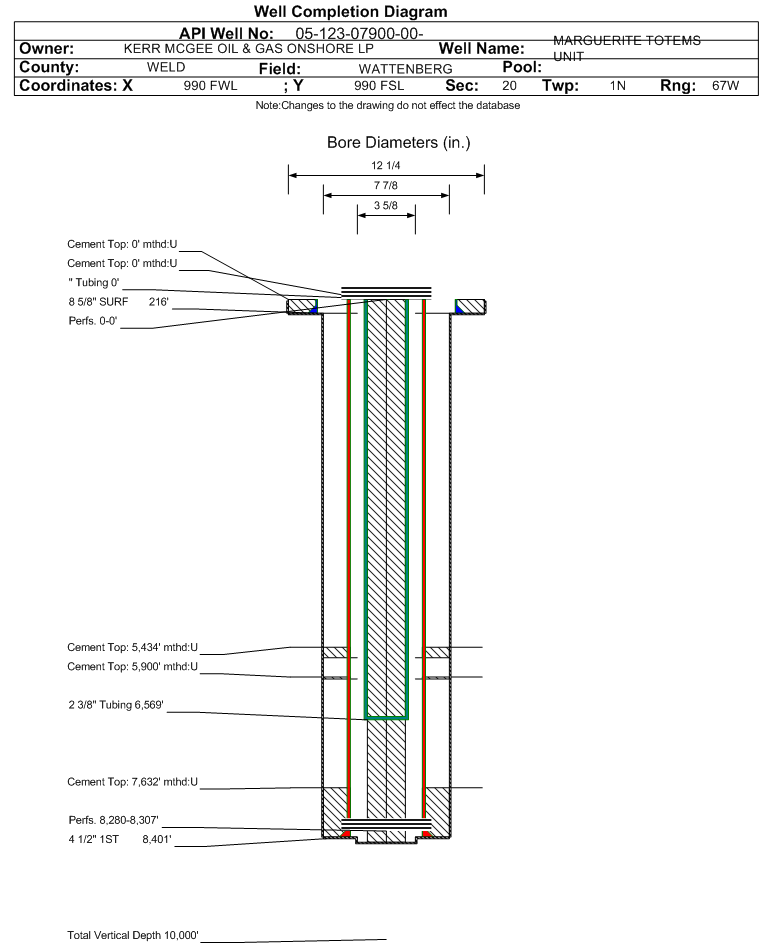

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07900		Well Classification: GW Status: PA - 8/21/2013
Well Name/No:MARGUERITE TOTEMS UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/21/2013
FacilityID:240112LocationID:317877
County:WELD #123Location:SWSW 20 1N67W 6
Field:WATTENBERG - #90750Elevation:5117 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FSL  990 FWLLat/Long: 40.031958 / -104.920333Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.032060 / -104.920300Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/21/2013             Measured TD: 8402 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/21/2013
Wellbore Permit
Permit #:19980354 Expiration Date:4/9/1999
Proposed Depth/Form:8620 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499,232 , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:2/5/1974
Spud Date:10/29/1973Spud Date Is:ACTUAL
Measured TD:8402 ft.Measured PB depth:8358 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 216 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 216 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8401 ft., Weight: 11.6/10.5, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7632 ft., Bottom: 8401 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5909 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 5900 ft., Bottom: 5930 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 5600 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 5434 ft., Bottom: 5600 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 819 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 349 ft., Bottom: 819 ft., Determination Method: CALC
Casing:String Type: OPEN HOLE, Hole Size: 3.625 in., Size: , Top: , Depth: 8481 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: S.C. 1.3, Hole Size: , Size: , Top: , Depth: 5440 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 5240 ft., Bottom: 5440 ft., Determination Method: CALC
Additional Cement:String Type: 1ST , Top: 5908 ft., Depth: 5912 ft., Bottom: 5912 ft., Sacks: 150, Method: CALC
Additional Cement:String Type: 1ST , Top: 5912 ft., Depth: 5930 ft., Bottom: 5930 ft., Sacks: 150, Method: CALC
Additional Cement:String Type: 1ST , Top: 349 ft., Depth: 819 ft., Bottom: 819 ft., Sacks: 200, Method: CALC
FormationInterval TopLog BottomCoredDSTs
J SAND8274 ft.NN
DAKOTA8443 ft.NN

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 8/21/2013                 Interval Top: 8443 ft.

 Completed Information for Formation DAKOTA
1st Production Date:7/25/1998Choke Size:
Formation Name:DAKOTACommingled:Yes
Production Method:FLOWING
Open Hole Completion:Yes
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
No Perforation Data was found for formation DKTA.

Formation DK-J                     Formation Classification:  GW                     Status:  CM - 8/21/2013                 Interval Top: 8280 ft.    Interval Bottom: 8307 ft.

 Completed Information for Formation DAKOTA-JSND
1st Production Date:7/25/1998Choke Size:
Formation Name:DAKOTA-JSNDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:2/5/1974
Treatment Summary:DEEPENED TO DAKOTA AND COMMINGLED WITH JSAND
Tubing Size:2.375 in.Tubing Setting Depth:6569 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/1998Test Method:FLOWING
Hours Tested:2Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
CALC_GOR 28000
CALC_MCF_GAS 336
CASING_PRESS 400
MCF_GAS 28
TUBING_PRESS 350
Perforation Data:
Interval Top:8280 ft.# Of Holes:
Interval Bottom:8307 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/21/2013                 Interval Top: 8274 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/5/1974
Treatment Summary:"SAND PLUG DEPTH-8442" "2 SACKS SAND ON TOP:6 SX 20/40/FRAC SAND"
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 34
MCF_GAS 1801
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/21/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
