COGIS - WELL SCOUT CARD

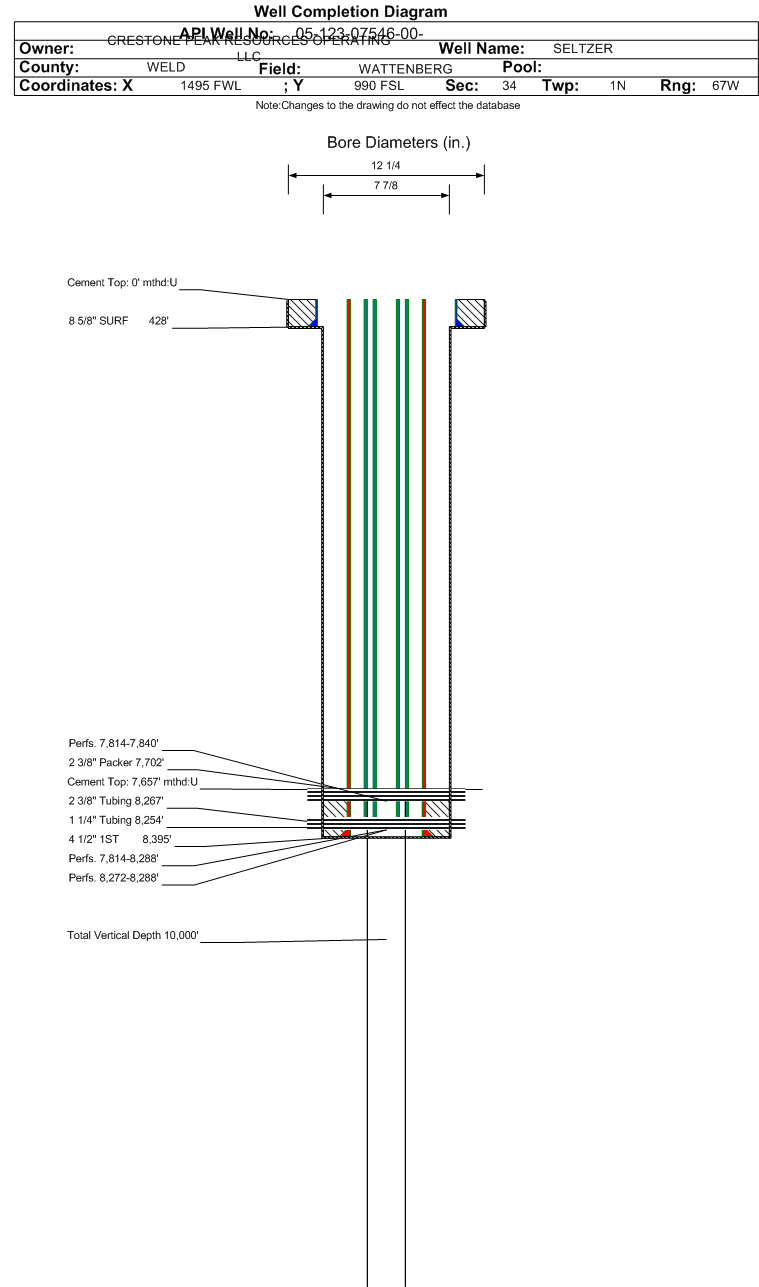

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07546		Well Classification: GW Status: PR - 3/1/2025
Well Name/No:SELTZER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:239758LocationID:317673
County:WELD #123Location:SESW 34 1N67W 6
Field:WATTENBERG - #90750Elevation:5077 ft.
Planned Location:990FSL  1495 FWLLat/Long: 40.003119 / -104.880622Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.003065 / -104.880579Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2025             Measured TD: 8400 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2025
Wellbore Permit
Permit #:19720749 Expiration Date:1/13/1973
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:N/A
Spud Date:8/2/1972Spud Date Is:ACTUAL
Measured TD:8400 ft.Measured PB depth:8360 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 428 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 428 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8395 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 7657 ft., Bottom: 8395 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 6810 ft., Depth: 7620 ft., Bottom: 7690 ft., Sacks: 200, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 493 ft., Depth: 1030 ft., Bottom: 1405 ft., Sacks: , Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
SUSSEX4896 ft.
NIOBRARA7348 ft.
CARLILE7812 ft.
GREENHORN7892 ft.
J SAND8233 ft.

Formation JSND                     Formation Classification:  GW                     Status:  PR - 3/1/2025                  Interval Top: 8272 ft.    Interval Bottom: 8288 ft.

 Completed Information for Formation J SAND
1st Production Date:9/2/1972Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/3/1972
Treatment Summary:6500 GAL PAD, 20# GEL KCL WTR. 12,000 GAL W/10,000# 20/40 40,000 GAL W/44,000# 10/20 4,000 GAL W/3000# (1000# GB & 2000 UCAR PAK) AT 50 BPM AT 4000 PSI ISIP 2150
Tubing Size:1.25 in.Tubing Setting Depth:8254 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/3/1972Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 3.6
CASING_PRESS 1475
MCF_GAS 2514
TUBING_PRESS 1359
Perforation Data:
Interval Top:8272 ft.# Of Holes:
Interval Bottom:8288 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  PR - 3/1/2025                  Interval Top: 7814 ft.    Interval Bottom: 7840 ft.

 Completed Information for Formation CODELL
1st Production Date:7/2/1992Choke Size:0.100 in.
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/3/1972
Treatment Summary:302,000# 20/40 SAND IN 88,000 GALLONS GEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/7/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 30
CALC_GOR 2666
MCF_GAS 80
TUBING_PRESS 380
Perforation Data:
Interval Top:7814 ft.# Of Holes:
Interval Bottom:7840 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 5/1/1997                  Interval Top: 7814 ft.    Interval Bottom: 8288 ft.

 Completed Information for Formation J-CODELL
1st Production Date:8/4/1992Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8267 ft.
Tubing Packer Depth:7722 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 8
CALC_GOR 7500
CASING_PRESS 550
MCF_GAS 60
TUBING_PRESS 550
Perforation Data:
Interval Top:7814 ft.# Of Holes:
Interval Bottom:8288 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)18
GOR
GOR DeterminationMCFE
Average BOE per Day0.005
Average MCFE per Day0.049

 Federal Financial Assurance  i

 Tribal Well  i No
