Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2025 Measured TD: 4820 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2025 | | Wellbore Permit | | | Permit #: | 19720484 | Expiration Date: | 10/21/1972 | | Proposed Depth/Form: | 4760 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW |
| | |

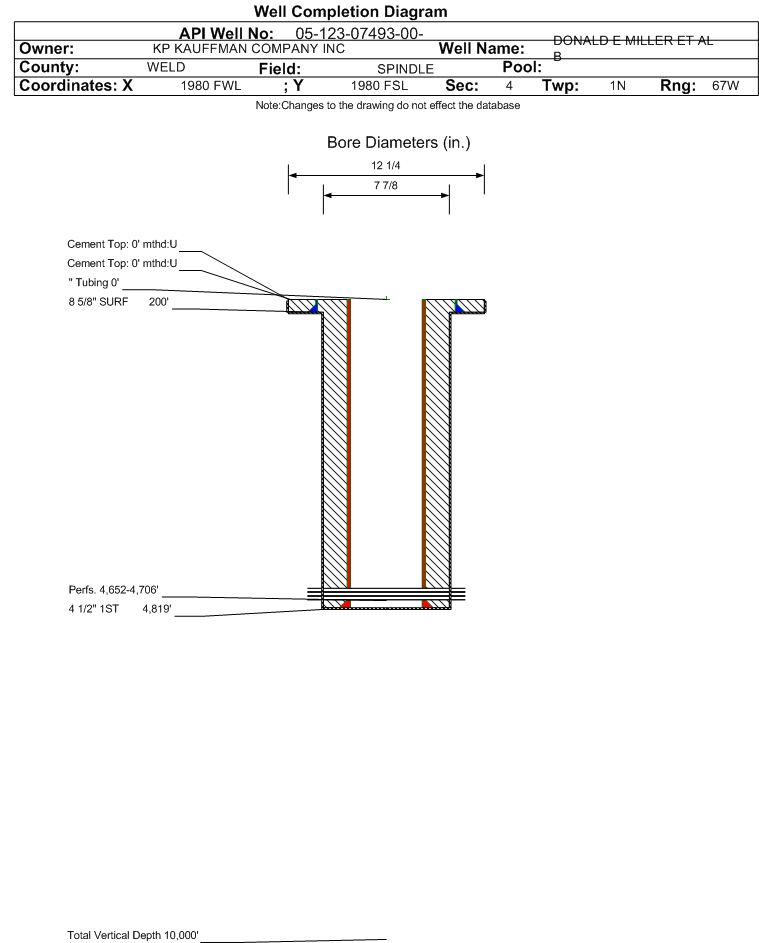

| Wellbore Completed | | Completion Date: | 7/26/1972 | | Spud Date: | 7/3/1972 | Spud Date Is: | ACTUAL | | Measured TD: | 4820 ft. | Measured PB depth: | 4760 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Log Types: | IES, FDC DENSITY-GR, CALIPER, GR COLLAR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 200 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4819 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 4819, Top: 0 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4664 ft. | | N | N |
Formation SUSX Formation Classification: GW Status: PR - 3/1/2025 Interval Top: 4652 ft. Interval Bottom: 4706 ft.| Completed Information for Formation SUSSEX | | 1st Production Date: | 7/21/1972 | Choke Size: | | | Formation Name: | SUSSEX | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 7/7/2016 | Treatment End Date: | 7/7/2016 | | Treatment Summary: | 30 bbl 15% HCL | | Total fluid used in treatment (bbls): | 72 | Max pressure during treatment (psi): | 1746 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 30 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 42 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 7/26/1972 | | Treatment Summary: | FRAC'D X 35,000# 10/20 SN 25,000# 8/12 SN 6000# 6/8 SN |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 23 | | GRAVITY_OIL | 41 |
| | Perforation Data: | | Interval Top: | 4652 ft. | # Of Holes: | 156 | | Interval Bottom: | 4706 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
07/2024 - 06/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 90 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.044 |
| Average MCFE per Day | 0.245 |
| Federal Financial Assurance | i | |
|
|
