COGIS - WELL SCOUT CARD

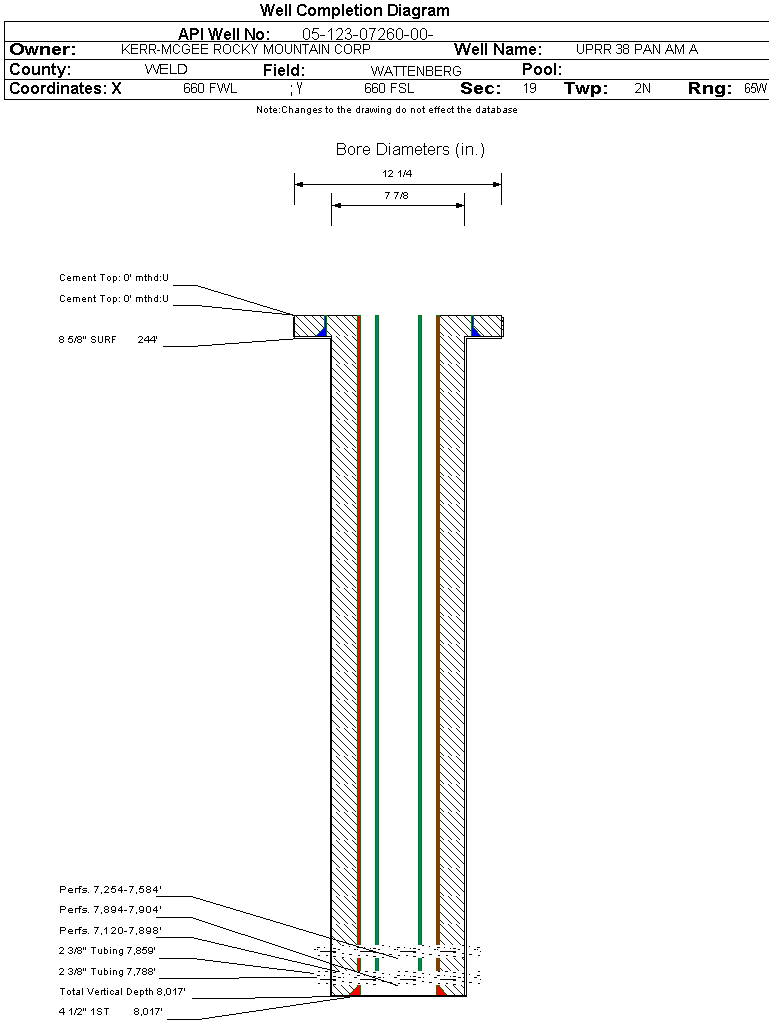

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07260		Well Classification: GW Status: PA - 4/4/2013
Well Name/No:UPRR 38 PAN AM A #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/4/2013
FacilityID:239473LocationID:317568
County:WELD #123Location:SWSW 19 2N65W 6
Field:WATTENBERG - #90750Elevation:5008 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  660 FWLLat/Long: 40.118498 / -104.713617Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.118520 / -104.713540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/4/2013             Measured TD: 8017 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/4/2013
Wellbore Permit
Permit #:19710089 Expiration Date:6/11/1971
Proposed Depth/Form:8050 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:3/31/1971
Spud Date:3/1/1971Spud Date Is:ACTUAL
Measured TD:8017 ft.Measured PB depth:7985 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC, GR, CNP, CORRELATION, DIL-SP
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 244 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 244 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7981 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7574 ft., Bottom: 7981 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7981 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 6740 ft., Bottom: 6960 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 891 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 300 ft., Bottom: 891 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7122 ft.
CODELL7418 ft.
J SAND7856 ft.Y

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/4/2013                  Interval Top: 7894 ft.    Interval Bottom: 7904 ft.

 Completed Information for Formation J SAND
1st Production Date:3/22/1971Choke Size:0.750 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/31/1971
Treatment Summary:FRAC'D X 4000# 20/40 SN, 36,000# 10/20 SN, 4000# 12/20 BEADS
Tubing Size:2.375 in.Tubing Setting Depth:7859 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/31/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CASING_PRESS 300
MCF_GAS 214
TUBING_PRESS 30
Perforation Data:
Interval Top:7894 ft.# Of Holes:
Interval Bottom:7904 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/4/2013                  Interval Top: 7254 ft.    Interval Bottom: 7584 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/30/1985Choke Size:1.000 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/31/1971
Treatment Summary:3690 BBLS WATER 350,000 LBS 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7859 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/30/1985Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 17
CALC_GOR 2823
GRAVITY_OIL 45
MCF_GAS 48
Perforation Data:
Interval Top:7254 ft.# Of Holes:73
Interval Bottom:7584 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 4/4/2013                  Interval Top: 7120 ft.    Interval Bottom: 7898 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:7/22/1999Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:3/31/1971
Treatment Summary:REMOVED CIBP AND COMMINGLED JNBCD
Tubing Size:2.375 in.Tubing Setting Depth:7788 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/17/1999Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
CALC_GOR 51000
CASING_PRESS 400
GRAVITY_OIL 60
MCF_GAS 102
TUBING_PRESS 300
Perforation Data:
Interval Top:7120 ft.# Of Holes:248
Interval Bottom:7898 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/04/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
