Wellbore #00 Wellbore Classification: GW Status: PA - 10/10/2014 Measured TD: 8148 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 10/10/2014 | | Wellbore Permit | | | Permit #: | 19700700 | Expiration Date: | 12/4/1971 | | Proposed Depth/Form: | 8250 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: J-CDL , Formation: J-CODELL , Order: , Unit Acreage: 320, Drill Unit: | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: |
| | |

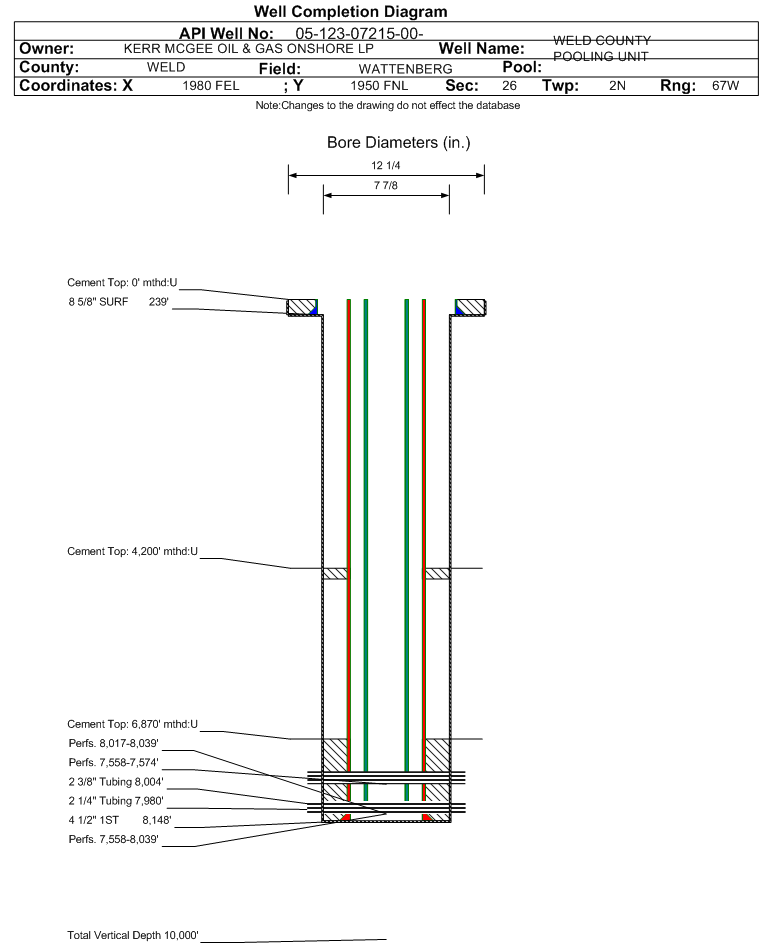

| Wellbore Completed | | Completion Date: | 10/23/1996 | | Spud Date: | 12/17/1970 | Spud Date Is: | ACTUAL | | Measured TD: | 8148 ft. | Measured PB depth: | 8092 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DENSITY, COMP. NEUTRON, CORR CBL | | Log Types: | IES, GR, COMPENSATED DENSITY, COMPENSATED NEUTRON, CORRELATION | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 239 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 239 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8148 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 6870 ft., Bottom: 8148 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 8148 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 4200 ft., Bottom: 4370 ft., Determination Method: CBL | | Casing: | String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: 8148 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 4910 ft., Bottom: 5090 ft., Determination Method: CBL | | Casing: | String Type: S.C. 3.1, Hole Size: , Size: , Top: , Depth: 8148 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 6870 ft., Bottom: 7361 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 657 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 657 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS BASE | 592 ft. | | N | N | | SUSSEX | 4500 ft. | | N | N | | SHANNON | 5060 ft. | | N | N | | NIOBRARA | 7265 ft. | | N | N | | CODELL | 7558 ft. | | N | N | | J SAND | 7978 ft. | | N | N | | MUDDY J | 8017 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 10/10/2014 Interval Top: 8017 ft. Interval Bottom: 8039 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 1/14/1971 | Choke Size: | 0.750 in. | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/23/1996 | | Treatment Summary: | FRAC'D X 4,000# 20-40 SN; 40,500# 10-20 SN X 4,500# 12-20 BEADS |
| | Tubing Size: | 2.3375 in. | Tubing Setting Depth: | 7980 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/19/1971 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 3575 | | CASING_PRESS | 1400 | | MCF_GAS | 3575 | | TUBING_PRESS | 430 |
| | Perforation Data: | | Interval Top: | 8017 ft. | # Of Holes: | 44 | | Interval Bottom: | 8039 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: AB - 10/10/2014 Interval Top: 7558 ft. Interval Bottom: 7574 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/7/1996 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/23/1996 | | Treatment Summary: | DIVERTAFRAC: PUMPED 71 BBLS POLYMER GEL & 214 BBLS GEL W/ 4,500# 20-40 SAND. FLUSHED W/ 103 BBLS 2% KCL. CODL FRAC: PUMPED 410 BBLS GEL & 1,030 BBLS GEL W/ 200,000# 20-40 SAND. FLUSHED W/ 30 BBLS 2% KCL. MAX PSI: 6,800, MAX RATE: 17.8 BPM. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/7/1996 | Test Method: | FLOWING | | Hours Tested: | 2.3 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 30 | | BBLS_OIL | 22 | | CALC_BBLS_H2O | 30 | | CALC_BBLS_OIL | 22 | | CALC_GOR | 2090.91 | | CALC_MCF_GAS | 46 | | CASING_PRESS | 1490 | | MCF_GAS | 46 | | TUBING_PRESS | 637 |
| | Perforation Data: | | Interval Top: | 7558 ft. | # Of Holes: | 64 | | Interval Bottom: | 7574 ft. | Hole Size: | 0.38 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 10/10/2014 Interval Top: 7558 ft. Interval Bottom: 8039 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | 10/23/1996 | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8004 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/23/1996 | Test Method: | FLOWING | | Hours Tested: | 96 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 80 | | BBLS_OIL | 44 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 53454.54 | | CALC_MCF_GAS | 588 | | MCF_GAS | 2352 |
| | Perforation Data: | | Interval Top: | 7558 ft. | # Of Holes: | 108 | | Interval Bottom: | 8039 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/10/2014 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
