COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-10759		Well Classification: GW Status: PA - 12/8/2017
Well Name/No:BARB LTD 'K' UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/8/2017
FacilityID:242968LocationID:319139
Municipality/County:ERIE / WELD #123Location:SESE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5082 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1020FSL  1020 FELLat/Long: 40.017438 / -105.040457Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.017578 / -105.040645Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

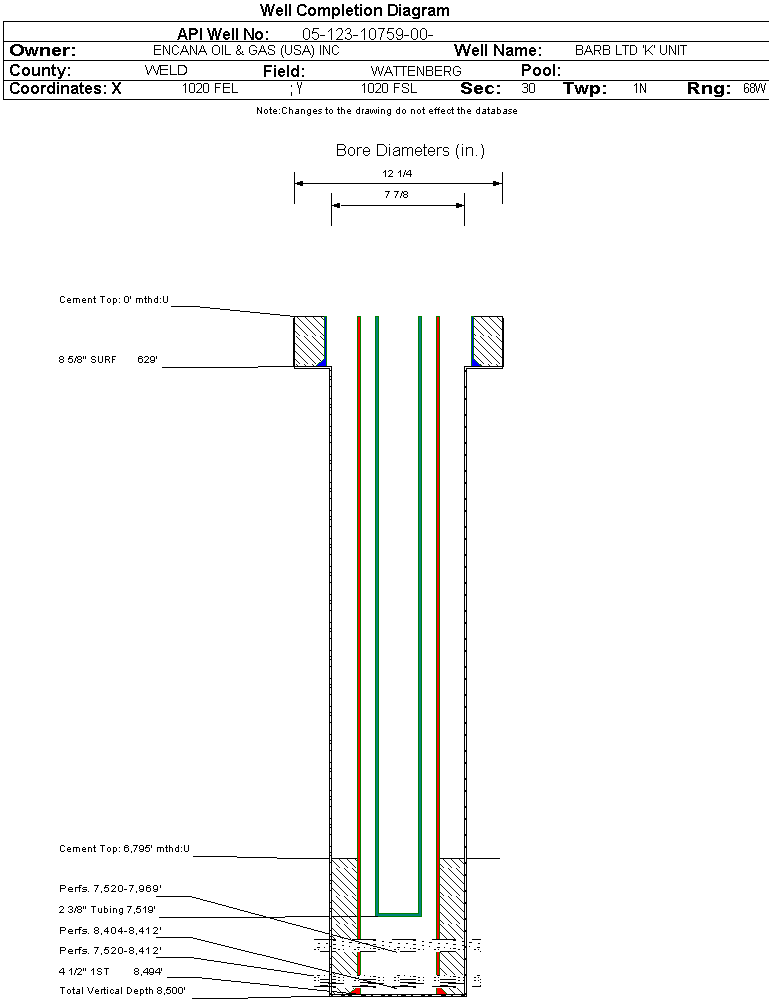

Wellbore #00             Wellbore Classification: GW             Status: PA - 12/8/2017             Measured TD: 8500 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/8/2017
Wellbore PermitDRIFTED
Permit #:19821168 Expiration Date:11/11/1982
Proposed Depth/Form:8250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:12/16/1983
Spud Date:8/13/1982Spud Date Is:ACTUAL
Measured TD:8500 ft.Measured PB depth:8480 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 629 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 629 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8494 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 7714 ft., Bottom: 8494 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7114 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 7230 ft., Bottom: 7714 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4268 ft.
SHANNON4764 ft.
NIOBRARA7507 ft.
TIMPAS7933 ft.
CODELL7954 ft.
GREENHORN8017 ft.
J SAND8370 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/8/2017                 Interval Top: 8404 ft.

 Completed Information for Formation J SAND
1st Production Date:12/16/1983Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/16/1983
Treatment Summary:290,000# 20/40 M IN 124,500 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:7519 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/16/1983Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 40
CASING_PRESS 400
MCF_GAS 310
TUBING_PRESS 170
No Perforation Data was found for formation JSND.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 12/8/2017                 Interval Top: 7520 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/23/1994Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7519 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/27/1994Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 20
CALC_GOR 9500
CASING_PRESS 540
MCF_GAS 190
TUBING_PRESS 400
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/8/2017                 Interval Top: 7520 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7519 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/08/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
