 Surface Location
 API# 05-107-06142		Well Classification: GW Status: PA - 6/19/2023
Well Name/No:EILTS-BRADLEY #1-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ROBERT L BAYLESS PRODUCER LLC - 6720
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:48286
Facility Status:PAStatus Date6/19/2023
FacilityID:232728LocationID:316765
County:ROUTT #107Location:NENE 14 6N87W 6
Field:BEAR RIVER - #5950Elevation:6760 ft.
Basin:SAND WASH BASIN
Planned Location:915FNL  1285 FELLat/Long: 40.482651 / -107.111035Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.482740 / -107.111020Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/19/2023             Measured TD: 4617 ft.    Vertical TD: 4617 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/19/2023
Wellbore Permit
Permit #:851163 Expiration Date:1/1/1986
Bottom Hole Location:Sec:14 Twp: 6N 87W Footage: 962 FNL  658 FEL
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 0 , Unit Acreage: 40, Drill Unit: NENE
Wellbore Completed
Completion Date:11/8/1985
Spud Date:9/24/1985Spud Date Is:ACTUAL
Measured TD:4617 ft.Measured PB depth:0 ft.
True Vertical TD:4617 ft.True Vertical PB depth:

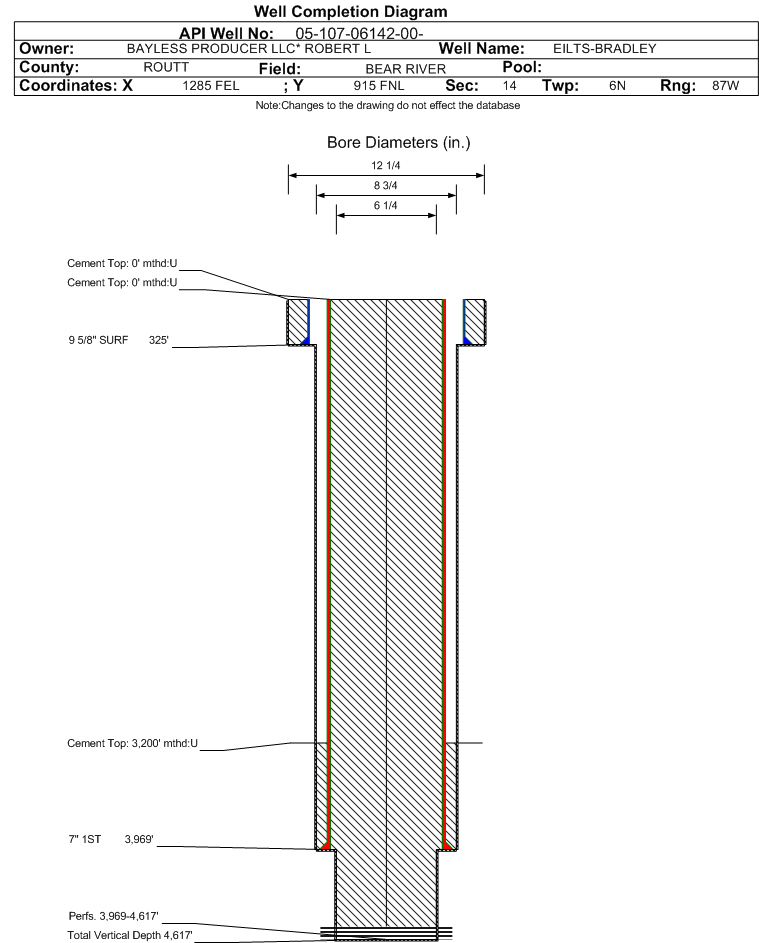

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 325 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 325 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 3969 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 3200 ft., Bottom: 3969 ft., Determination Method: CALC
Casing:String Type: 1ST LINER, Hole Size: 6.5 in., Size: 5.5 in., Top: 3969 ft., Depth: 4617 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA4182 ft.

Formation NBRR                     Formation Classification:  GW                     Status:  AB - 6/19/2023                 Interval Top: 3969 ft.    Interval Bottom: 4617 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/10/1985Choke Size:0.000 in.
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/4/1985Test Method:PUMPING
Hours Tested:23Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 922
CALC_BBLS_OIL 962
CALC_GOR 696
CALC_MCF_GAS 670
CASING_PRESS 30
GRAVITY_OIL 37.5
MCF_GAS 642
Perforation Data:
Interval Top:3969 ft.# Of Holes:
Interval Bottom:4617 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/19/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
