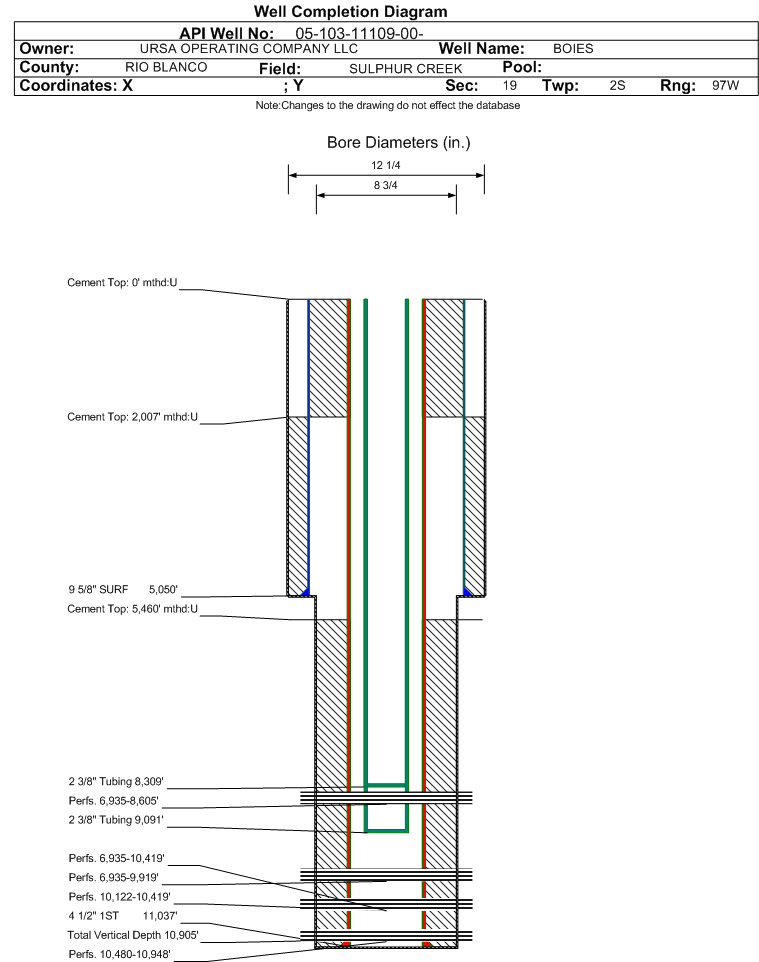

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-11109		Well Classification: GW Status: PR - 5/1/2023
Well Name/No:BOIES #B-19P-O1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2023
FacilityID:293253LocationID:335891
County:RIO BLANCO #103Location:SESE 19 2S97W 6
Field:SULPHUR CREEK - #80090Elevation:6246 ft.
Basin:PICEANCE BASIN
Planned Location:362FSL  1093 FELLat/Long: 39.855592 / -108.319093Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.855400 / -108.319235Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2023             Measured TD: 11037 ft.    Vertical TD: 10905 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20074794 Expiration Date:11/1/2008
Proposed Top PZ Location:Sec:19 Twp: 2S 97W Footage: 1136 FSL  1786 FEL
Bottom Hole Location:Sec:19 Twp: 2S 97W Footage: 1136 FSL  1786 FEL
Proposed Depth/Form:11373 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 527-4 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: 527-4 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 26 in., Top: , Depth: 100 ft., Weight: 54 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:6/25/2008
Spud Date:6/7/2008Spud Date Is:ACTUAL
Measured TD:11037 ft.Measured PB depth:10988 ft.
True Vertical TD:10905 ft.True Vertical PB depth:10856 ft.
Top PZ Location:Sec:19 Twp: 2S 97WFootage: 1136 FSL  1786 FEL
Bottom Hole Location:Sec:19 Twp: 2S 97WFootage: 1136 FSL  1786 FEL
Log Types:HV, AISFE, CDN/CPD, COMP TRIPLE COMBO, CBL, MUD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 5050 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 485, Top: 2007 ft., Bottom: 5050 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11037 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 841, Top: 5460 ft., Bottom: 11037 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2007 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 351, Top: 0 ft., Bottom: 2007 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH A2123 ft.NN
OHIO CREEK6065 ft.NN
WILLIAMS FORK6241 ft.NN
CAMEO9425 ft.NN
ROLLINS9977 ft.NN
COZZETTE10117 ft.NN
CORCORAN10452 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 5/1/2023                  Interval Top: 10480 ft.    Interval Bottom: 10948 ft.

 Completed Information for Formation CORCORAN
1st Production Date:8/28/2012Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/12/2008
Treatment Summary:10480'-10693' - 148439# 20/40 OTTAWA SAND, 3600 BBLS SLICK WATER; 10738'-10948' - 173300# 20/40 OTTAWA SAND, 4127 BBLS SLICK WATER.
Tubing Size:2.375 in.Tubing Setting Depth:9091 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BTU_GAS 1062
CALC_BBLS_H2O 20
CALC_MCF_GAS 301
CASING_PRESS 1300
MCF_GAS 50
Perforation Data:
Interval Top:10480 ft.# Of Holes:36
Interval Bottom:10948 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 5/1/2023                  Interval Top: 10122 ft.    Interval Bottom: 10419 ft.

 Completed Information for Formation COZZETTE
1st Production Date:8/28/2012Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/13/2008
Treatment Summary:10122'-10315' - 137100# 20/40 OTTAWA SAND, 3368 BBLS SLICK WATER; 10384'-10419' - 18961# 20/40 OTTAWA SAND, 460 BBLS SLICK WATER.
Tubing Size:2.375 in.Tubing Setting Depth:9091 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BTU_GAS 1062
CALC_BBLS_H2O 20
CALC_MCF_GAS 301
CASING_PRESS 1300
MCF_GAS 50
Perforation Data:
Interval Top:10122 ft.# Of Holes:25
Interval Bottom:10419 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/1/2023                  Interval Top: 6935 ft.    Interval Bottom: 9919 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:8/28/2012Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/25/2011
Treatment Summary:6935'-7103' - 30100# 100 MESH, 153600# 30/50 SAND. 7702'-7994' - 26000# 100 MESH, 122500# 30/50 SAND, 6011 BBLS SLICKWATER. 7146'-7403'-19800# 100 MESH, 98800# 30/50 SAND, 4617 BBLS SLICKWATER/8018'-8283' - 25800# 100 MESH, 129400# 30/50 SAND, SLICKWATER 7452'-7651' - 27100# 100 MESH, 140000# 30/50 SAND. 8313'-8605' - 38800# 100 MESH, 194400# 30/50 SAND, SLICKWATER.
Formation Treatment
Treatment Date:8/14/2008
Treatment Summary:8734'-9039' - 132500# 20/40 OTTAWA SAND, 3205 BBLS SLICK WATER; 9156'-9417' - 135300# 20/40 OTTAWA SAND, 3330 BBLS SLICK WATER; 9530'-9919' - 332200# 20/40 OTTAWA SAND, 7410 BBLS SLICKWATER.
Formation Treatment
Treatment Date:8/13/2008
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:9091 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 23
BBLS_OIL 0
BTU_GAS 1062
CALC_BBLS_H2O 137
CALC_BBLS_OIL 3
CALC_GOR 643667
CALC_MCF_GAS 2051
CASING_PRESS 1300
GRAVITY_OIL 52
MCF_GAS 342
Perforation Data:
Interval Top:6935 ft.# Of Holes:118
Interval Bottom:9919 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 9/4/2012                  Interval Top: 6935 ft.    Interval Bottom: 10419 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:8/28/2012Choke Size:16.000 in.
Formation Name:WILLIAMS FORK-ILESCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:9091 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/4/2012Test Method:Separator/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 34
BBLS_OIL 1
BTU_GAS 1
CALC_BBLS_H2O 34
CALC_BBLS_OIL 1
CALC_GOR 616000
CALC_MCF_GAS 616
CASING_PRESS 652
GRAVITY_OIL 52
MCF_GAS 616
TUBING_PRESS 321
Perforation Data:
Interval Top:6935 ft.# Of Holes:179
Interval Bottom:10419 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 9/17/2011                 Interval Top: 6935 ft.    Interval Bottom: 8605 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/11/2011Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/25/2011
Treatment Summary:6935'-7103' - 30100# 1000 MESH, 153600# 30/50 SAND; 7702'-7994' - 26000# 100 MESH, 122500# 30/50 SAND, 6011 BBLS SLICK WTR; 7146'-7403' - 19800# 100 MESH, 98800# 30/50 SAND, 4617 BBLS SLICK WTR/8018'-8283' - 25800# 100 MESH, 129400# 30/50 SAND; 7452'-7651' - 27100# 100 MESH, 140000# 30/50 SAND; 8313'-8605' - 38800# 100 MESH, 194400# 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8309 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/17/2011Test Method:SEPARATOR/EFM
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 625
BTU_GAS 1062
CALC_BBLS_H2O 625
CALC_MCF_GAS 2849
CASING_PRESS 800
MCF_GAS 2849
Perforation Data:
Interval Top:6935 ft.# Of Holes:59
Interval Bottom:8605 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)236
Total Gas Produced (MCF)48289
GOR204614
GOR DeterminationMCFE
Average BOE per Day23.168
Average MCFE per Day134.379

 Federal Financial Assurance  i

 Tribal Well  i No
