Wellbore #00 Wellbore Classification: GW Status: TA - 10/1/2025 Measured TD: 11210 ft. Vertical TD: 11131 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 10/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072208 | Expiration Date: | 6/5/2008 | | Proposed Top PZ Location: | Sec:30 Twp: 2S 97W | Footage: 147 FNL 455 FEL | | Bottom Hole Location: | Sec:30 Twp: 2S 97W | Footage: 147 FNL 455 FEL | | Proposed Depth/Form: | 11407 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 527-2 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: 572-2 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 527-1 , Unit Acreage: , Drill Unit: |
| | |

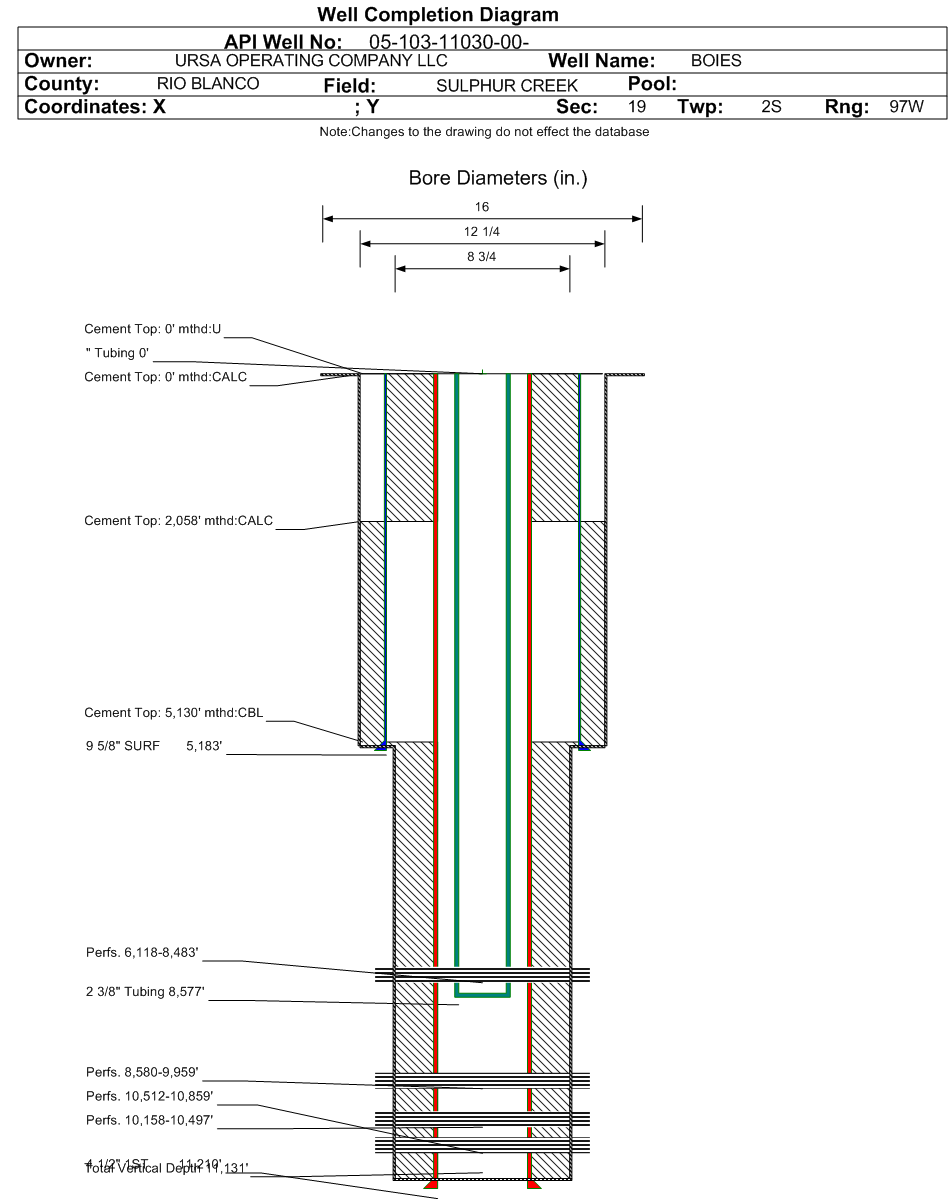

| Wellbore Completed | | Completion Date: | 5/13/2008 | | Spud Date: | 4/18/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 11210 ft. | Measured PB depth: | 10868 ft. | | True Vertical TD: | 11131 ft. | True Vertical PB depth: | 10789 ft. | | Top PZ Location: | Sec:30 Twp: 2S 97W | Footage: 147 FNL 455 FEL | | Bottom Hole Location: | Sec:30 Twp: 2S 97W | Footage: 147 FNL 455 FEL | | Log Types: | CBL, MUD, AI/GR/SP; L/CN/AIT; AISF, CPD/CDN; HOLE VOLUME | | Casing: | String Type: CONDUCTOR, Hole Size: 16 in., Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 5183 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 606, Top: 2058 ft., Bottom: 5183 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11210 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 828, Top: 5130 ft., Bottom: 11210 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2058 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 336, Top: 0 ft., Bottom: 2058 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | OHIO CREEK | 6104 ft. | | N | N | | WILLIAMS FORK | 6300 ft. | | N | N | | CAMEO | 9503 ft. | | N | N | | ROLLINS | 10016 ft. | | N | N | | COZZETTE | 10154 ft. | | N | N | | CORCORAN | 10510 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 10512 ft. Interval Bottom: 10859 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 10/13/2008 | Choke Size: | 0.313 in. | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/4/2008 | | Treatment Summary: | 10430'-10859' - 289300# 20/40 OTTAWA SAND, 7504 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8577 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/21/2008 | Test Method: | SEPARATOR/EFM | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 121 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 121 | | CALC_MCF_GAS | 687 | | CASING_PRESS | 1680 | | MCF_GAS | 687 |
| | Perforation Data: | | Interval Top: | 10512 ft. | # Of Holes: | 28 | | Interval Bottom: | 10859 ft. | Hole Size: | 0.35 in. |
|
Formation COZZ Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 10158 ft. Interval Bottom: 10497 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 10/13/2008 | Choke Size: | 0.313 in. | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/4/2008 | | Treatment Summary: | 123300# 30/50 OTTAWA SAND, 3074 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8577 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/21/2008 | Test Method: | SEPARATOR/EFM | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 26 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 26 | | CALC_MCF_GAS | 149 | | CASING_PRESS | 1680 | | MCF_GAS | 149 |
| | Perforation Data: | | Interval Top: | 10158 ft. | # Of Holes: | 25 | | Interval Bottom: | 10497 ft. | Hole Size: | 0.35 in. |
|
Formation WFCM Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 8580 ft. Interval Bottom: 9959 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/13/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/5/2008 | | Treatment Summary: | 8580'-9959' - 575300# 30/50 OTTAWA SAND, 13603 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8577 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/21/2008 | Test Method: | SEPARATOR/EFM | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 215 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 215 | | CALC_MCF_GAS | 1223 | | CASING_PRESS | 1680 | | MCF_GAS | 1223 |
| | Perforation Data: | | Interval Top: | 8580 ft. | # Of Holes: | 61 | | Interval Bottom: | 9959 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 10/11/2021 Interval Top: 6118 ft. Interval Bottom: 10859 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFILS. |
| | Perforation Data: | | Interval Top: | 6118 ft. | # Of Holes: | 396 | | Interval Bottom: | 10859 ft. | Hole Size: | |
|
Formation WMFK Formation Classification: GW Status: CM - 10/1/2021 Interval Top: 6118 ft. Interval Bottom: 8483 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/6/2019 | Treatment End Date: | 9/20/2019 | | Treatment Summary: | Re-Frac'd with 386,254 bbls of 2% KCL treated water and no proppant.
Added perfs 6,118' - 8,483'
CIBP set at 8,496' - 8,498' | | Total fluid used in treatment (bbls): | 386254 | Max pressure during treatment (psi): | 5821 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 11 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.68 | | Recycled water used in treatment (bbls): | 386254 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 6118 ft. | # Of Holes: | 396 | | Interval Bottom: | 8483 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA) | Y | Last Production
08/31/2021 |
| Low Producing | Y | Production Period
02/2025 - 01/2026 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
