COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-103-10945		Well Classification: GW Status: PR - 5/1/2012
Well Name/No:PICEANCE CREEK UNIT #296-17A4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COD 35680B
Facility Status:PRStatus Date5/1/2012
FacilityID:287695LocationID:335706
County:RIO BLANCO #103Location:SWSE 17 2S96W 6
Field:PICEANCE CREEK - #68800Elevation:7376 ft.
Basin:PICEANCE BASIN
Planned Location:770FSL  2160 FELLat/Long: 39.871506 / -108.190631Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.871505 / -108.190632Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2012             Measured TD: 13512 ft.    Vertical TD: 13280 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2012
Wellbore PermitDIRECTIONAL
Permit #:20075470 Expiration Date:11/1/2008
Proposed Top PZ Location:Sec:17 Twp: 2S 96W Footage: 206 FSL  834 FEL
Bottom Hole Location:Sec:17 Twp: 2S 96W Footage: 206 FSL  834 FEL
Proposed Depth/Form:14000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:PICEANCE CREEK Unit Number:COC 47666X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/3/2008
Spud Date:3/4/2008Spud Date Is:ACTUAL
Measured TD:13512 ft.Measured PB depth:13439 ft.
True Vertical TD:13280 ft.True Vertical PB depth:13207 ft.
Top PZ Location:Sec:17 Twp: 2S 96WFootage: 206 FSL  834 FEL
Bottom Hole Location:Sec:17 Twp: 2S 96WFootage: 206 FSL  834 FEL
Log Types:MUD LOGS, ACOUSTIC CBL

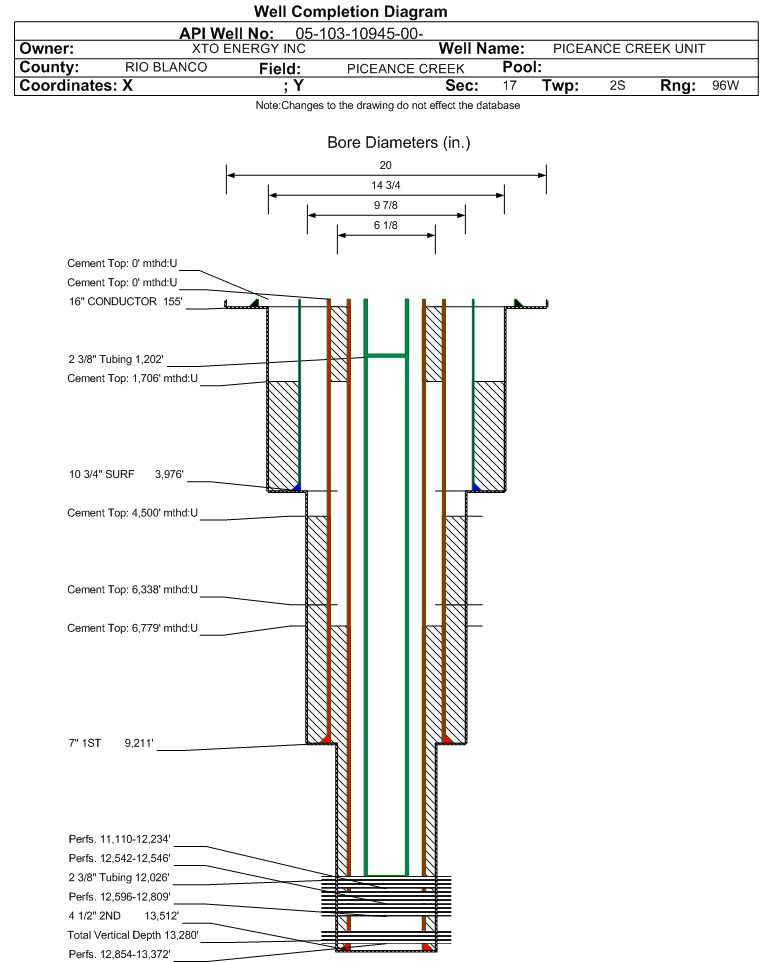

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 155 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 155 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 10.75 in., Top: , Depth: 3976 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 1706 ft., Bottom: 3976 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: , Depth: 9211 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 998, Top: 6338 ft., Bottom: 9211 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6338 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 871, Top: 4500 ft., Bottom: 6338 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 13512 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 817, Top: 6779 ft., Bottom: 13512 ft., Determination Method: CALC
Casing:String Type: S.C. 2.2, Hole Size: , Size: , Top: , Depth: 1706 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 0 ft., Bottom: 1706 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G5951 ft.7890 ft.NN
OHIO CREEK7890 ft.8058 ft.NN
WILLIAMS FORK - CAMEO8058 ft.12340 ft.NN
ROLLINS12340 ft.12572 ft.NN
COZZETTE12572 ft.12833 ft.NN
CORCORAN12833 ft.13512 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 6/1/2012                  Interval Top: 12854 ft.    Interval Bottom: 13372 ft.

 Completed Information for Formation CORCORAN
1st Production Date:9/15/2009Choke Size:0.219 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/24/2009
Treatment Summary:FRAC W/ 367,000# PROPPANT (305,800# 40/70 & 61,200# 100 MESH). FRAC PLUG @ 13,250'.
Tubing Size:2.375 in.Tubing Setting Depth:1202 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1058
CALC_BBLS_H2O 65
CALC_BBLS_OIL 0
CALC_MCF_GAS 271
CASING_PRESS 3220
GRAVITY_OIL 51
Perforation Data:
Interval Top:12854 ft.# Of Holes:144
Interval Bottom:13372 ft.Hole Size:0.28 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 6/1/2012                  Interval Top: 12596 ft.    Interval Bottom: 12809 ft.

 Completed Information for Formation COZZETTE
1st Production Date:9/15/2009Choke Size:0.219 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2009
Treatment Summary:FRAC W/ 150,500# PROPPANT (124,300 40/70 & 26,200# 100 MESH). FRAC PLUG @ 12,675'.
Tubing Size:2.375 in.Tubing Setting Depth:1202 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1058
CALC_BBLS_H2O 25
CALC_BBLS_OIL 0
CALC_MCF_GAS 104
CASING_PRESS 3220
GRAVITY_OIL 51
Perforation Data:
Interval Top:12596 ft.# Of Holes:64
Interval Bottom:12809 ft.Hole Size:0.28 in.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 2/1/2013                  Interval Top: 12542 ft.    Interval Bottom: 12546 ft.

 Completed Information for Formation ROLLINS
1st Production Date:9/15/2009Choke Size:0.219 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2009
Treatment Summary:FRAC W/ 33,500# PROPPANT (27,700# 40/70 & 5,800 # 100 MESH).
Tubing Size:2.375 in.Tubing Setting Depth:12026 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1058
CALC_BBLS_H2O 22
CALC_BBLS_OIL 0
CALC_MCF_GAS 93
CASING_PRESS 3220
GRAVITY_OIL 51
Perforation Data:
Interval Top:12542 ft.# Of Holes:16
Interval Bottom:12546 ft.Hole Size:0.28 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/1/2012                  Interval Top: 11110 ft.    Interval Bottom: 12234 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/15/2009Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2009
Treatment Summary:FRAC W/723,700 # PROPPANT (599,600# 40/70 & 124,100# MESH). FRAC PLUGS @ 11,330', 11,732', 11,988' & 12,210'. DO ALL PLUGS.
Tubing Size:2.375 in.Tubing Setting Depth:12026 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1058
CALC_BBLS_H2O 410
CALC_BBLS_OIL 0
CALC_MCF_GAS 1712
CASING_PRESS 3220
GRAVITY_OIL 51
Perforation Data:
Interval Top:11110 ft.# Of Holes:288
Interval Bottom:12234 ft.Hole Size:0.28 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)94
Total Gas Produced (MCF)25253
GOR268648
GOR DeterminationMCFE
Average BOE per Day12.166
Average MCFE per Day70.580

 Federal Financial Assurance  i Y

 Tribal Well  i No
