Wellbore #00 Wellbore Classification: CBM Status: SI - 7/1/2023 Measured TD: 8200 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM SI - 7/1/2023 | | Wellbore Permit | | | Permit #: | 20052332 | Expiration Date: | 9/15/2006 | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

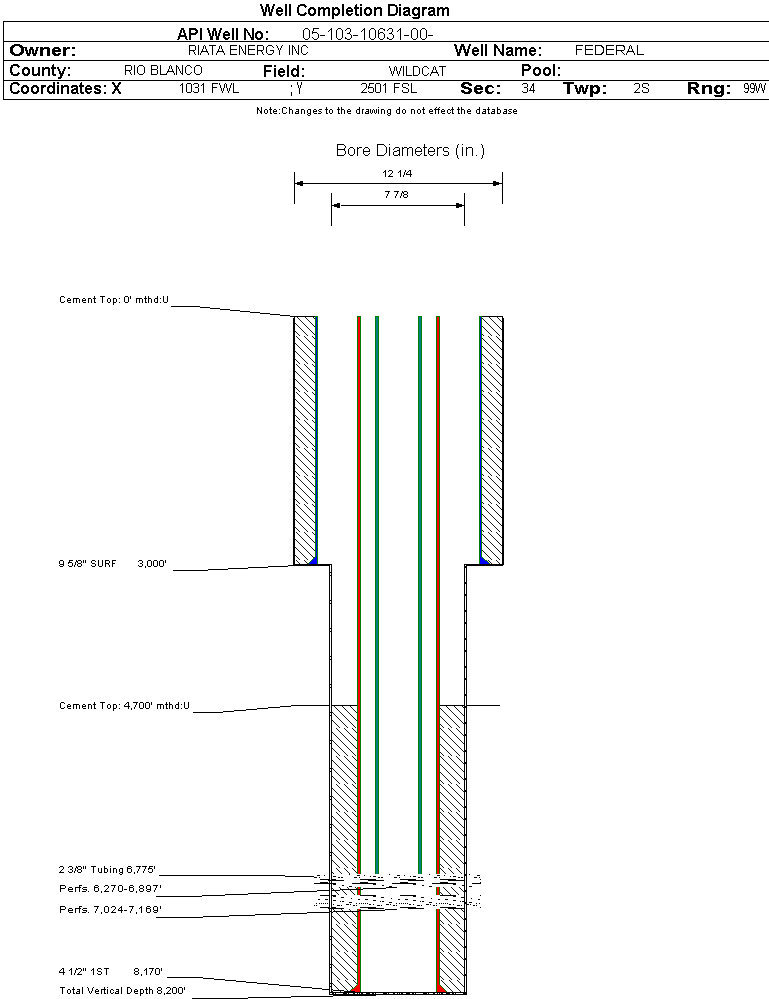

| Wellbore Completed | | Completion Date: | 2/21/2006 | | Spud Date: | 1/19/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8200 ft. | Measured PB depth: | 8120 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CEMENT VOL.,CEMENT & CORROSION,CORRELATION, ARRAY INDUCTION, COMP NEUTRON DENSITY | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3000 ft., Weight: 40 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 1131 ft., Bottom: 3000 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8170 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 4700 ft., Bottom: 8170 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: 9.625 in., Top: , Depth: 1131 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 295, Top: 0 ft., Bottom: 1131 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2367 ft. | | N | N | | OHIO CREEK | 4496 ft. | | N | N | | WILLIAMS FORK | 4695 ft. | | N | N | | CAMEO | 7004 ft. | | N | N | | ILES | 7326 ft. | | N | N |
Formation CMEOC Formation Classification: GW Status: CM - 11/1/2015 Interval Top: 7024 ft. Interval Bottom: 7169 ft.| Completed Information for Formation CAMEO COAL | | 1st Production Date: | 3/25/2006 | Choke Size: | 0.469 in. | | Formation Name: | CAMEO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/7/2006 | | Treatment Summary: | 24K GALS SW PAD, 57,750 GALS SW + 42,000# 20/40 JORDAN SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6775 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/20/2006 | Test Method: | FLOW TO PIT | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 143 | | BBLS_OIL | 0 | | BTU_GAS | 1096 | | CALC_BBLS_H2O | 143 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 769 | | CASING_PRESS | 1000 | | MCF_GAS | 769 | | TUBING_PRESS | 475 |
| | Perforation Data: | | Interval Top: | 7024 ft. | # Of Holes: | 33 | | Interval Bottom: | 7169 ft. | Hole Size: | |
|
Formation WMFK Formation Classification: GW Status: CM - 3/20/2006 Interval Top: 6270 ft. Interval Bottom: 6897 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/25/2006 | Choke Size: | 0.469 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/7/2006 | | Treatment Summary: | STAGE 2: 27K GALS SW PAD, 86,020 GALS SW + 107,000# 20/40 JORDAN SAND STAGE 3: 27K GALS SW PAD, 93,800 GALS SW + 112,000# 20/40 JORDAN SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6775 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/20/2006 | Test Method: | FLOW TO PIT | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 288 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 288 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1542 | | CASING_PRESS | 1000 | | MCF_GAS | 1542 | | TUBING_PRESS | 475 |
| | Perforation Data: | | Interval Top: | 6270 ft. | # Of Holes: | 81 | | Interval Bottom: | 6897 ft. | Hole Size: | |
|
Formation WFCMC Formation Classification: GW Status: SI - 7/1/2023| Completed Information for Formation WILLIAMS FORK-CAMEO COAL | | 1st Production Date: | 3/25/2006 | Choke Size: | 0.469 in. | | Formation Name: | WILLIAMS FORK-CAMEO COAL | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCMC. |
| | No Perforation Data was found for formation WFCMC. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/10/2026 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
|
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
