Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-103-08724		Well Classification: GW	Status: TA - 10/1/2025
Well Name/No:	FEDERAL #298 -25-1 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	47621
Facility Status:	TA	Status Date	10/1/2025
FacilityID:	231055	LocationID:	315565
County:	RIO BLANCO #103	Location:	SENW 25 2S98W 6
Field:	SULPHUR CREEK - #80090	Elevation:	6522 ft.
Basin:	PICEANCE BASIN
Planned Location:	2033FNL 1789 FWL	Lat/Long: 39.848962 / -108.346637	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.848910 / -108.346550	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: TA - 10/1/2025 Measured TD: 8379 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW TA - 10/1/2025
Wellbore Permit
Permit #:	810668	Expiration Date:	8/28/1981
Proposed Depth/Form:
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEDERAL	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit:

Wellbore Completed
Completion Date:	5/8/1981
Spud Date:	3/28/1981	Spud Date Is:	ACTUAL
Measured TD:	8379 ft.	Measured PB depth:	8313 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:

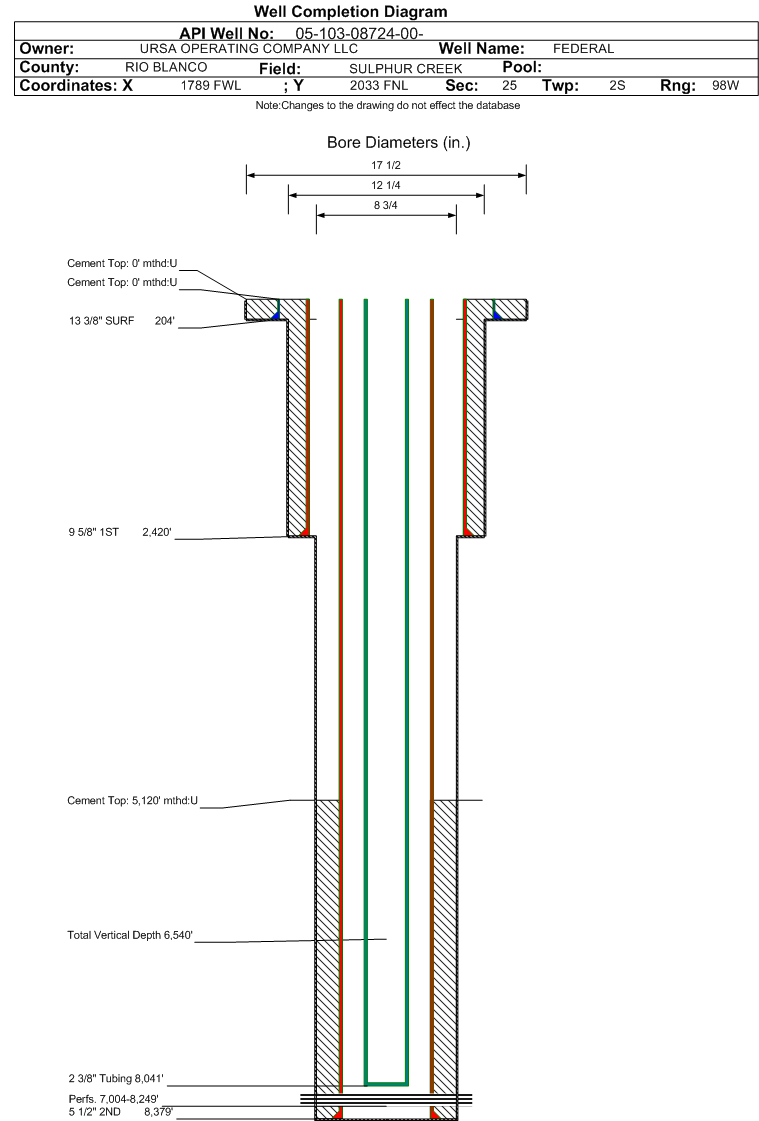

Casing:	String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 204 ft., Weight: 54.5 , Citings Type: ACTUAL
Cement:	Sacks: 255, Top: 0 ft., Bottom: 205 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2420 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 700, Top: 0 ft., Bottom: 2420 ft., Determination Method: VISU
Casing:	String Type: 2ND, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 8379 ft., Weight: 17 , Citings Type: ACTUAL
Cement:	Sacks: 1200, Top: 5120 ft., Bottom: 8379 ft., Determination Method: CBL
Additional Cement:	String Type: 1ST , Top: 5076 ft., Depth: 5026 ft., Bottom: 5107 ft., Sacks: 25, Method: SQUEEZE
Additional Cement:	String Type: 1ST , Top: 3721 ft., Depth: 3671 ft., Bottom: 3997 ft., Sacks: 177, Method: SQUEEZE
Additional Cement:	String Type: 1ST , Top: 3198 ft., Depth: 3148 ft., Bottom: 3232 ft., Sacks: 50, Method: SQUEEZE
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH A	2818 ft.		N	N
WASATCH G	4017 ft.		N	N
MESAVERDE	5780 ft.
OHIO CREEK	5786 ft.		N	N
WILLIAMS FORK	5963 ft.		N	N

Formation MVRD Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 7002 ft. Interval Bottom: 8250 ft.

Completed Information for Formation MESAVERDE

1st Production Date:	7/24/1981	Choke Size:
Formation Name:	MESAVERDE	Commingled:
Production Method:
Open Hole Completion:

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	29
BBLS_OIL	3
CALC_BBLS_H2O	50
CALC_BBLS_OIL	5
CALC_MCF_GAS	749
MCF_GAS	437
TUBING_PRESS	66

Perforation Data:
Interval Top:	7002 ft.	# Of Holes:	58
Interval Bottom:	8250 ft.	Hole Size:

All Designations		Date
Primary Well Designation: Out Of Service i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	Y	Plugging Due Date 12/31/2028
Inactive Exception	N
Noticed Inactive	N
Defined Inactive (TA )	Y	Defined Inactive 05/20/2025
Low Producing	Y	Production Period 11/2024 - 10/2025

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination	MCFE
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
