COGIS - WELL SCOUT CARD

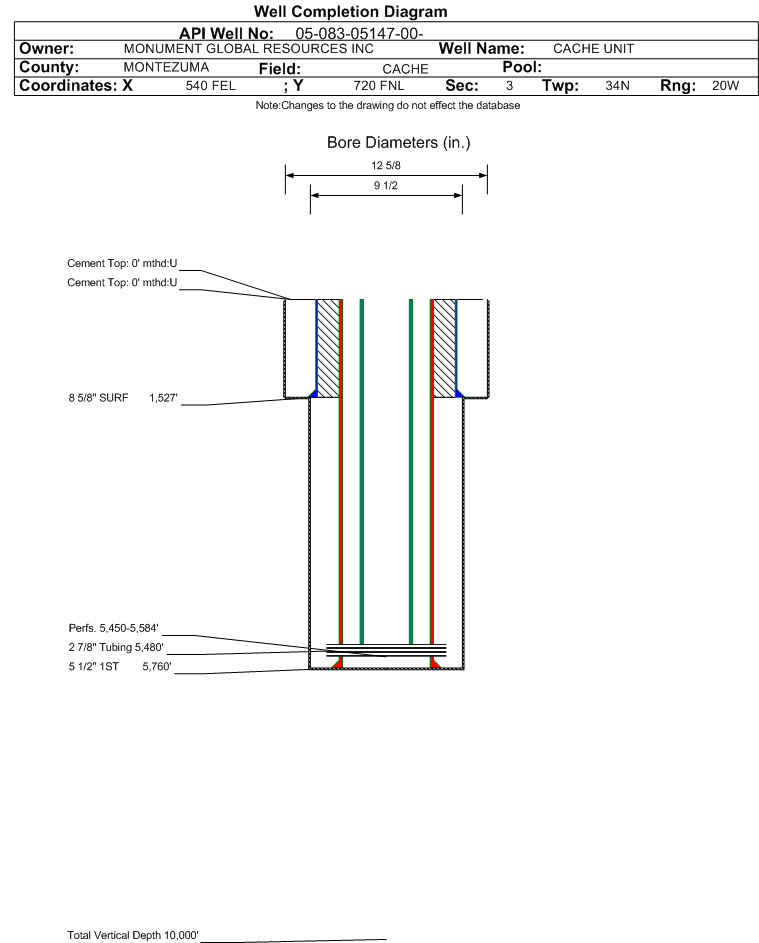

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-083-05147		Well Classification: ERIW Status: PA - 1/4/2017
Well Name/No:CACHE UNIT #8 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MONUMENT GLOBAL RESOURCES INC - 10430
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/4/2017
FacilityID:223747LocationID:313425
County:MONTEZUMA #083Location:NENE 3 34N20W N
Field:CACHE - #9610Elevation:4895 ft.
Basin:PARADOX BASIN
Planned Location:720FNL  540 FELLat/Long: 37.238319 / -109.029033Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.238463 / -109.028837Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 1/4/2017             Measured TD: 5760 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 1/4/2017
Wellbore Permit
Permit #:19640586 Expiration Date:4/21/1965
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:CACHE UNIT Unit Number:
Wellbore Completed
Completion Date:3/24/1968
Spud Date:12/24/1964Spud Date Is:ACTUAL
Measured TD:5760 ft.Measured PB depth:5500 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ES-INDUCTION, GAMMA RAY SONIC
Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 1527 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 0 ft., Bottom: 1527 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: , Size: 5.5 in., Top: 0 ft., Depth: 5760 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 0 ft., Bottom: 5760 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
CUTLER2632 ft.
HERMOSA4518 ft.
ISMAY5424 ft.
LOWER ISMAY5537 ft.
DESERT CREEK5650 ft.

Formation ISMY                     Formation Classification:  GW                     Status:  AB - 1/4/2017                  Interval Top: 5450 ft.    Interval Bottom: 5584 ft.

 Completed Information for Formation ISMAY
1st Production Date:2/15/1965Choke Size:
Formation Name:ISMAYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:3/24/1968
Treatment Summary:20,950 GALS ACID
Tubing Size:2.875 in.Tubing Setting Depth:5480 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/14/1965Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 195
CALC_GOR 1040
GRAVITY_OIL 43.5
MCF_GAS 203
Perforation Data:
Interval Top:5450 ft.# Of Holes:
Interval Bottom:5584 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/04/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
