Wellbore #00 Wellbore Classification: GW Status: SI - 5/1/2025 Measured TD: 6490 ft. Vertical TD: 6199 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 5/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054393 | Expiration Date: | 12/8/2006 | | Proposed Top PZ Location: | Sec:14 Twp: 8S 96W | Footage: 1911 FNL 2026 FEL | | Bottom Hole Location: | Sec:14 Twp: 8S 96W | Footage: 1911 FNL 2026 FEL | | Proposed Depth/Form: | 6496 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | ORCHARD UNIT | Unit Number: | COC 66496X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

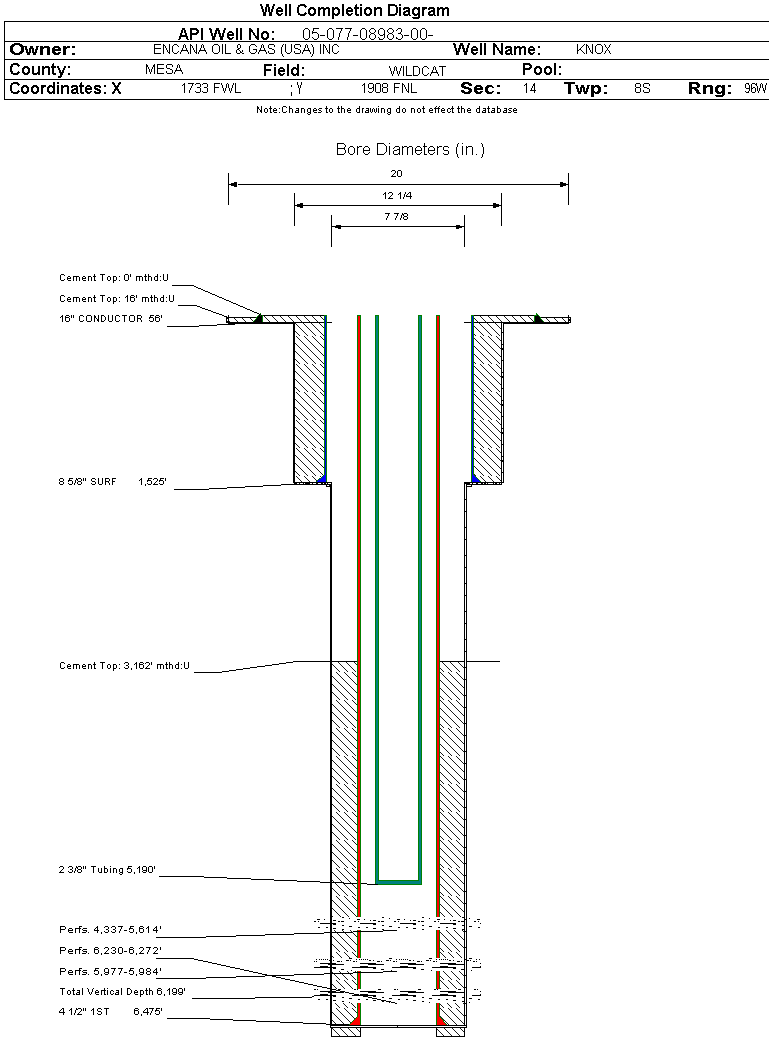

| Wellbore Completed | | Completion Date: | 4/17/2006 | | Spud Date: | 4/2/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6490 ft. | Measured PB depth: | 6390 ft. | | True Vertical TD: | 6199 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:14 Twp: 8S 96W | Footage: 1911 FNL 2026 FEL | | Bottom Hole Location: | Sec:14 Twp: 8S 96W | Footage: 1911 FNL 2026 FEL | | Log Types: | PEX,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 56 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 16 ft., Bottom: 56 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1525 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 960, Top: 0 ft., Bottom: 1560 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6475 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 3162 ft., Bottom: 6577 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3019 ft. | N | N | | MESAVERDE | 3020 ft. | 3433 ft. | N | N | | WILLIAMS FORK | 3434 ft. | 5692 ft. | N | N | | ROLLINS | 5693 ft. | 5976 ft. | N | N | | COZZETTE | 5977 ft. | 6226 ft. | N | N | | CORCORAN | 6227 ft. | 6490 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 5/1/2025 Interval Top: 6230 ft. Interval Bottom: 6272 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | N/A | Choke Size: | 30.000 in. | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/8/2006 | | Treatment Summary: | STAGES 01 TREATED WITH A TOTAL OF : 2823 BBLS OF SLICKWATER, 103442 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5190 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/28/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 60 | | CASING_PRESS | 975 | | TUBING_PRESS | 550 |
| | Perforation Data: | | Interval Top: | 6230 ft. | # Of Holes: | 24 | | Interval Bottom: | 6272 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: SI - 3/1/2024 Interval Top: 5977 ft. Interval Bottom: 5984 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | N/A | Choke Size: | 30.000 in. | | Formation Name: | COZZETTE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/8/2006 | | Treatment Summary: | STAGES 01 TOTAL BBLS OF SLICKWATER LISTED ABOVE. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5190 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/28/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 60 | | CASING_PRESS | 975 | | TUBING_PRESS | 550 |
| | Perforation Data: | | Interval Top: | 5977 ft. | # Of Holes: | 14 | | Interval Bottom: | 5984 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: SI - 5/1/2025 Interval Top: 4337 ft. Interval Bottom: 5614 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/21/2006 | Choke Size: | 30.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/24/2006 | | Treatment Summary: | STAGES 02-05 TREATED WITH A TOTAL OF: 9644 BBLS OF SLICKWATER, 334959 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5190 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/22/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 83 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 83 | | CALC_MCF_GAS | 1997 | | CASING_PRESS | 1061 | | MCF_GAS | 1997 | | TUBING_PRESS | 640 |
| | Perforation Data: | | Interval Top: | 4337 ft. | # Of Holes: | 82 | | Interval Bottom: | 5614 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 12 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.006 |
| Average MCFE per Day | 0.034 |
| Federal Financial Assurance | i | Y |
|
|
