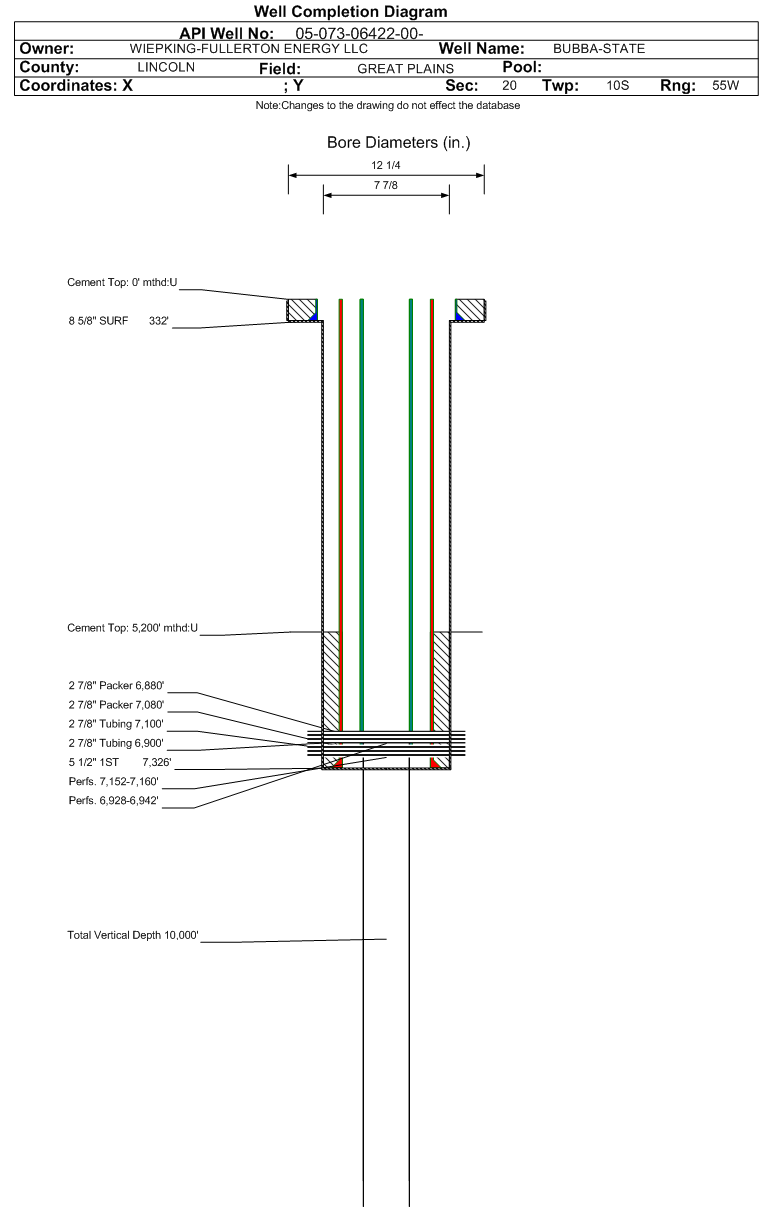

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-073-06422		Well Classification: OW Status: PR - 7/1/2020
Well Name/No:BUBBA-STATE #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WIEPKING-FULLERTON ENERGY LLC - 96340
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:9365
Facility Status:PRStatus Date7/1/2020
FacilityID:417923LocationID:417917
County:LINCOLN #073Location:SWNW 20 10S55W 6
Field:GREAT PLAINS - #32756Elevation:5194 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FWLLat/Long: 39.165920 / -103.582320Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.165920 / -103.582320Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 7/1/2020             Measured TD: 7870 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 7/1/2020
Wellbore Permit
Permit #: Expiration Date:6/23/2012
Proposed Depth/Form:7800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 300 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 0 ft., Bottom: 300 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7800 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 325, Top: 6900 ft., Bottom: 7800 ft.
Wellbore Completed
Completion Date:1/2/2011
Spud Date:12/14/2010Spud Date Is:ACTUAL
Measured TD:7870 ft.Measured PB depth:7870 ft.
True Vertical TD:True Vertical PB depth:
Log Types:Compensatd Density Compensated Neutron Gamma Ray High Resolution Induction Dual Spaced Dement Bond Log
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 332 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 332 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7326 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 5200 ft., Bottom: 7326 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 2950 ft., Depth: 4710 ft., Bottom: 4710 ft., Sacks: 180, Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3077 ft.
CODELL3632 ft.
DAKOTA4068 ft.
SHAWNEE5649 ft.
LANSING6595 ft.
MARMATON6934 ft.
PAWNEE6980 ft. Y
CHEROKEE7067 ft. Y
MORROW7580 ft.
KEYES7754 ft.

Formation CHRK                     Formation Classification:                       Status:  AB - 2/10/2011                 Interval Top: 7152 ft.    Interval Bottom: 7160 ft.

 Completed Information for Formation CHEROKEE
1st Production Date:N/AChoke Size:
Formation Name:CHEROKEECommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:2/10/2011
Treatment Summary:800 Gal 15% MCA 44 bbls 2% KCL Not open hole through casing
Tubing Size:2.875 in.Tubing Setting Depth:7100 ft.
Tubing Packer Depth:7100 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CHRK.
Perforation Data:
Interval Top:7152 ft.# Of Holes:32
Interval Bottom:7160 ft.Hole Size:0.25 in.

Formation TORCH                   Formation Classification:  OW                   Status:  PR - 7/1/2020                  Interval Top: 6928 ft.    Interval Bottom: 6942 ft.

 Completed Information for Formation TORCH
1st Production Date:2/15/2011Choke Size:
Formation Name:TORCHCommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:2/10/2011
Treatment Summary:1000 gal 15% HCL 43 bbls 2% KCL Not Open Hole through casing
Tubing Size:2.875 in.Tubing Setting Depth:6900 ft.
Tubing Packer Depth:6900 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/2011Test Method:SWAB
Hours Tested:8Gas Type:DRY
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 54
BTU_GAS 450
CALC_BBLS_OIL 162
CALC_MCF_GAS 81
GRAVITY_OIL 37
MCF_GAS 27
Perforation Data:
Interval Top:6928 ft.# Of Holes:56
Interval Bottom:6942 ft.Hole Size:0.25 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)1392
Total Gas Produced (MCF)1108
GOR795
GOR DeterminationBOE
Average BOE per Day4.329
Average MCFE per Day25.140

 Federal Financial Assurance  i

 Tribal Well  i No
