COGIS - WELL SCOUT CARD

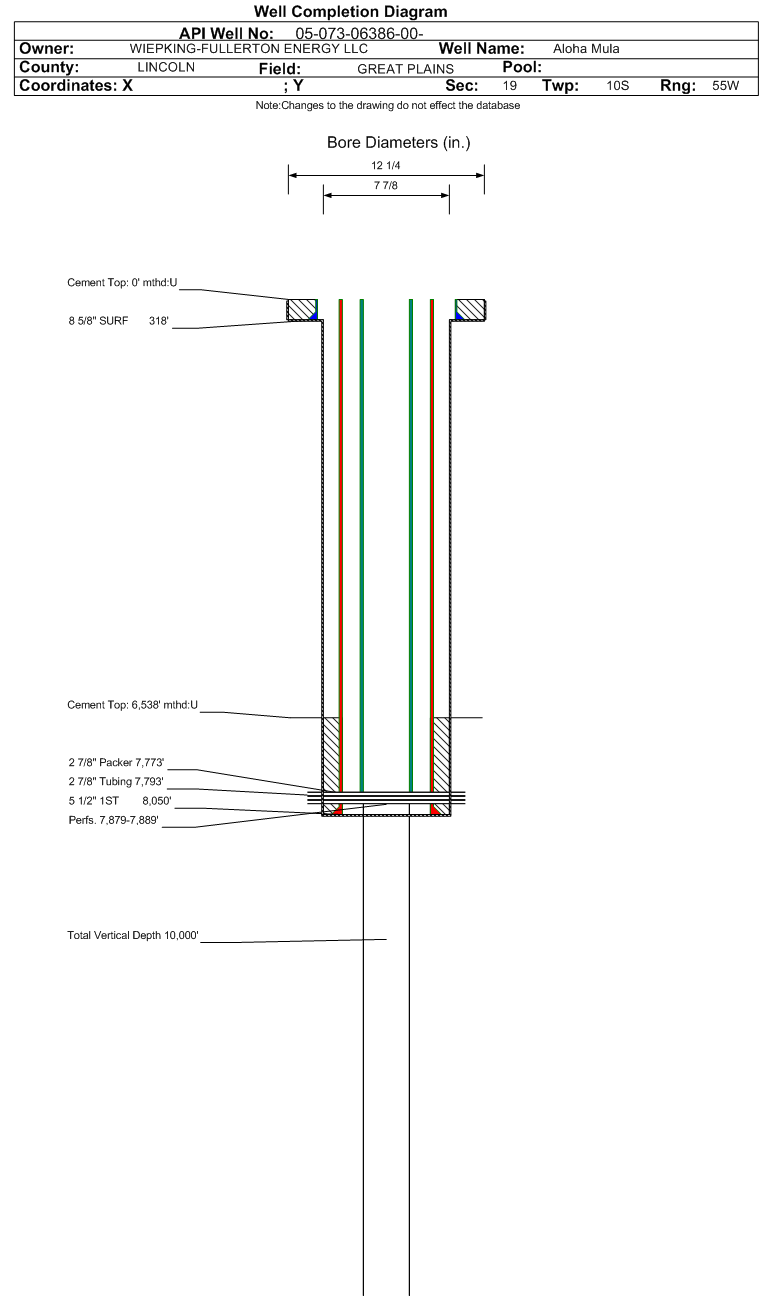

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-073-06386		Well Classification: OW Status: PR - 6/1/2020
Well Name/No:ALOHA MULA #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WIEPKING-FULLERTON ENERGY LLC - 96340
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2020
FacilityID:413099LocationID:413096
County:LINCOLN #073Location:SWSW 19 10S55W 6
Field:GREAT PLAINS - #32756Elevation:5257 ft.
Basin:DENVER (DJ) BASIN
Planned Location:670FSL  730 FWLLat/Long: 39.158770 / -103.600700Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.158770 / -103.600700Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/1/2020             Measured TD: 8050 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/1/2020
Wellbore Permit
Permit #: Expiration Date:2/13/2016
Proposed Depth/Form:8400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ABCK , Formation: ARBUCKLE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MSSP , Formation: MISSISSIPPIAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: PENN , Formation: PENNSYLVANIAN , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 318 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 265, Top: 0 ft., Bottom: 318 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8400 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 300, Top: 5500 ft., Bottom: 8400 ft.
Wellbore Completed
Completion Date:7/23/2014
Spud Date:7/13/2014Spud Date Is:ACTUAL
Measured TD:8050 ft.Measured PB depth:7986 ft.
True Vertical TD:True Vertical PB depth:
Log Types:Compensated Density Compensated Neutron Gamma Ray High Resolution Induction
Log Types:Radial Cement Bond Log Compensated Density Compensated Neutron Gamma Ray and High Resolution Induction previously submitted when Aloha Mula # 4 well was originally drilled in June of 2011 only new log Radial Cement Bond Log attaeched
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 318 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 265, Top: 0 ft., Bottom: 318 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8050 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 345, Top: 6538 ft., Bottom: 8050 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 3114 ft., Depth: 4650 ft., Bottom: 4650 ft., Sacks: 250, Method: STAGE TOOL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3156 ft.
CODELL3709 ft.
DAKOTA4134 ft.
LANSING6667 ft.
MARMATON7011 ft.
PAWNEE7045 ft.
CHEROKEE7118 ft.
MORROW7596 ft.
KEYES7756 ft.
OSAGE7879 ft.

Formation OSAGE                   Formation Classification:  OW                   Status:  PR - 6/1/2020                  Interval Top: 7879 ft.    Interval Bottom: 7889 ft.

 Completed Information for Formation OSAGE
1st Production Date:8/21/2014Choke Size:
Formation Name:OSAGECommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/4/2014Treatment End Date:N/A
Treatment Summary:No Treatment. SWAB only
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:2.875 in.Tubing Setting Depth:7793 ft.
Tubing Packer Depth:7793 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/4/2014Test Method:SWAB
Hours Tested:8Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 75
CALC_BBLS_H2O 75
CALC_BBLS_OIL 225
GRAVITY_OIL 32
Perforation Data:
Interval Top:7879 ft.# Of Holes:40
Interval Bottom:7889 ft.Hole Size:0.25 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)3816
Total Gas Produced (MCF)0
GOR
GOR DeterminationBOE
Average BOE per Day10.435
Average MCFE per Day60.524

 Federal Financial Assurance  i

 Tribal Well  i No
