Wellbore #00 Wellbore Classification: OBW Status: AB - 9/7/2022 Measured TD: 2185 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OBW AB - 9/7/2022 | | Wellbore Permit | | | Permit #: | 20065939 | Expiration Date: | 12/26/2007 | | Proposed Depth/Form: | 2125 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1395 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 1395 ft. |
| | |

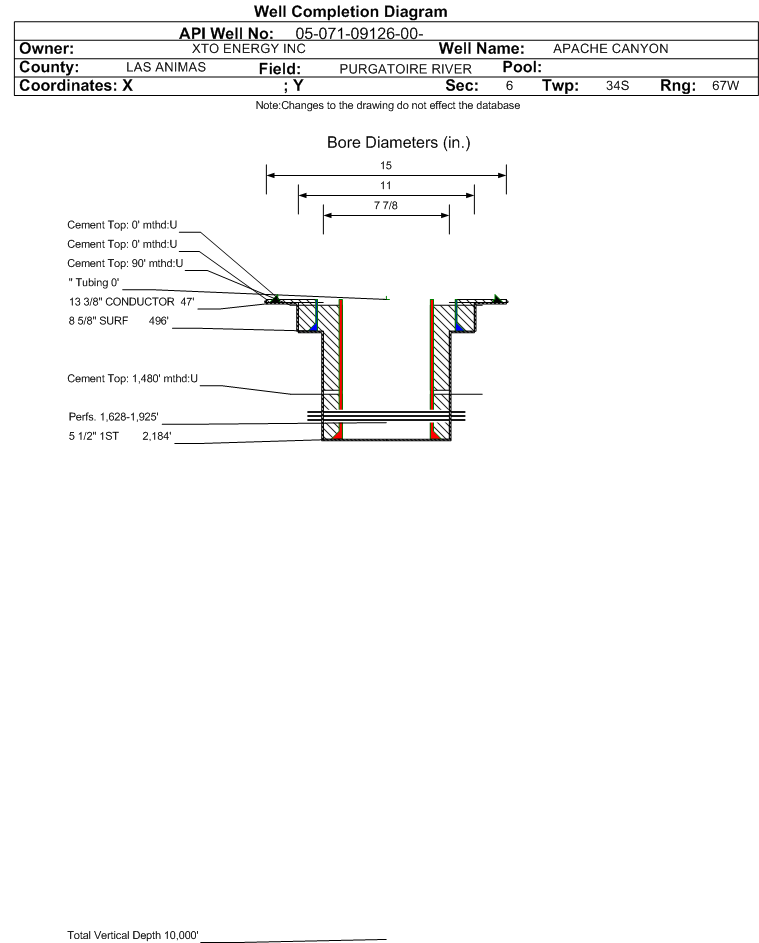

| Wellbore Completed | | Completion Date: | 7/4/2007 | | Spud Date: | 7/2/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 2185 ft. | Measured PB depth: | 2138 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIL, CN/DL, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 50 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 81, Top: 0 ft., Bottom: 50 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 495 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 495 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2185 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 115, Top: 1490 ft., Bottom: 2185 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1421 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 220, Top: 90 ft., Bottom: 1421 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1459 ft. | N | N | | VERMEJO COAL | 1575 ft. | 1948 ft. | N | N | | TRINIDAD | 1948 ft. | 2186 ft. | N | N |
Formation VRMJ Formation Classification: OBW Status: AB - 9/7/2022 Interval Top: 1628 ft. Interval Bottom: 1925 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/5/2012 | Treatment End Date: | N/A | | Treatment Summary: | Status Change Only | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 7/27/2007 | | Treatment Summary: | ACIDIZED W/1000 GALS 15% HCL ACID. FRAC'D W/46,539 GALS 20# DELTA 140 WITH SANDWEDGE OS CARRYING 6900# 16/30 BRADY SAND & 107,800# 12/20 ARIZONA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 97 | | BBLS_OIL | 0 | | BTU_GAS | 1005 | | CALC_BBLS_H2O | 97 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 5 | | MCF_GAS | 0 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 1628 ft. | # Of Holes: | 24 | | Interval Bottom: | 1925 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/07/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
