COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06220		Well Classification: GW Status: PA - 10/12/2020
Well Name/No:APACHE CANYON #10-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/12/2020
FacilityID:217443LocationID:307315
County:LAS ANIMAS #071Location:NESW 10 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:6992 ft.
Basin:RATON BASIN
Planned Location:2005FSL  1603 FWLLat/Long: 37.097013 / -104.879279Lat/Long Source: Field Measured
As Drilled Location:2001 FSL  1569 FWLLat/Long: 37.096968 / -104.878727Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/12/2020             Measured TD: 1390 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/12/2020
Wellbore Permit
Permit #:19960473 Expiration Date:6/12/1997
Bottom Hole Location:Sec:10 Twp: 34S 67W Footage: 2001 FSL  1569 FWL
Proposed Depth/Form:1650 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: 160, Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:11/14/1996Spud Date Is:ACTUAL
Measured TD:1390 ft.Measured PB depth:1368 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL, CDL, CBL

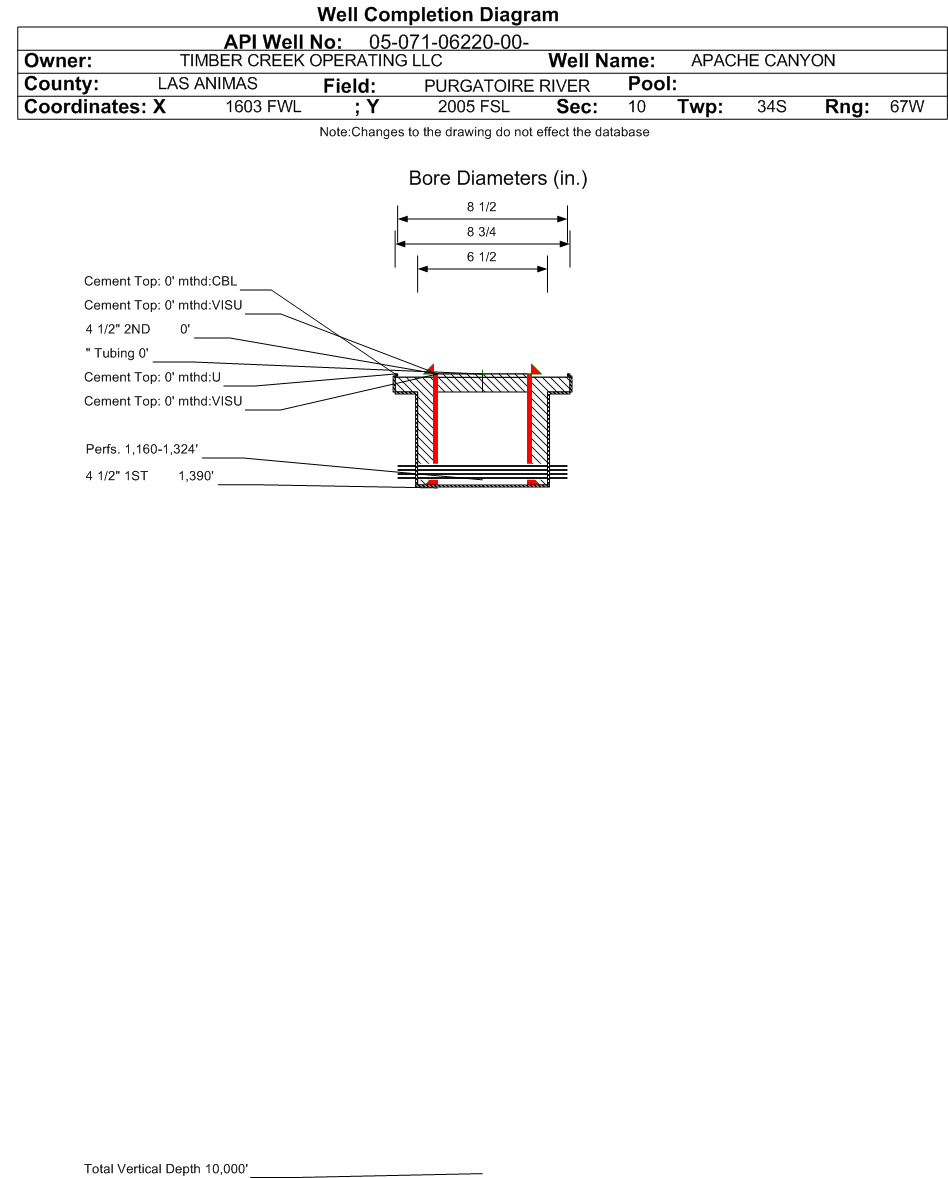

Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 41 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 70, Top: 0 ft., Bottom: 41 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 227 ft., Weight: 15 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 227 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 1390 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 130, Top: 0 ft., Bottom: 1390 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: , Size: 4.5 in., Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 1160 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL265 ft.269 ft.NN
VERMEJO COAL1138 ft.1333 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 10/12/2020                Interval Top: 1160 ft.    Interval Bottom: 1324 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/11/2002
Treatment Summary:Status Change Only
Formation Treatment
Treatment Date:3/11/1997
Treatment Summary:SEE SCANNED DOCUMENT # 00599227
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
MCF_GAS 0
Perforation Data:
Interval Top:1160 ft.# Of Holes:43
Interval Bottom:1324 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/12/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
