COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-06402		Well Classification: GW Status: PA - 6/29/2020
Well Name/No:MIRACLE #9-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/29/2020
FacilityID:417296LocationID:333301
Municipality/County:JOHNSTOWN / LARIMER #069Location:NESE 12 5N68W 6
Field:WATTENBERG - #90750Elevation:4948 ft.
Planned Location:2480FSL  315 FELLat/Long: 40.413783 / -104.945575Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.413787 / -104.945589Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/28/2012
End Date: 2/28/2012
Reported: 3/29/2012
Prior to rule 205A.b.(2)(A)
Days to report: 30

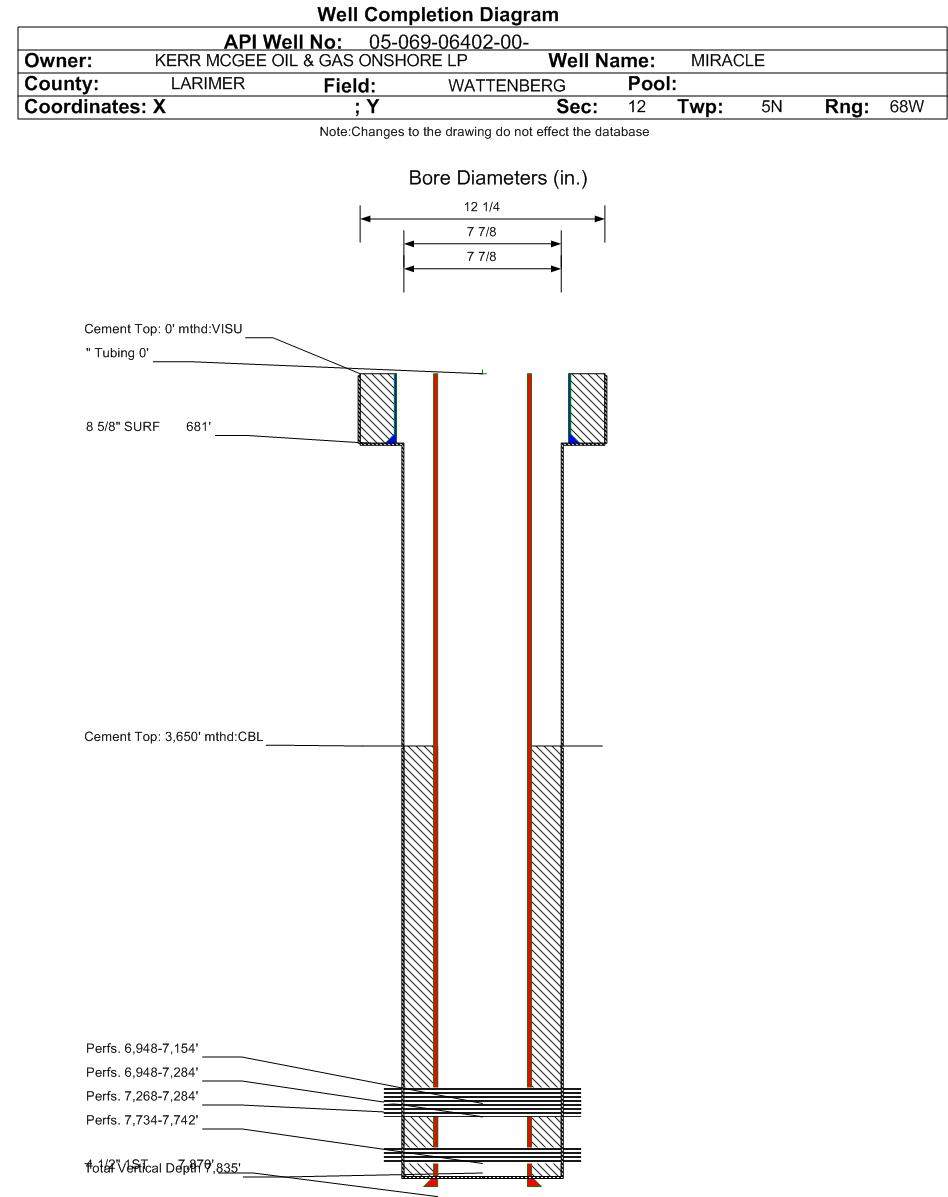

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/29/2020             Measured TD: 7883 ft.    Vertical TD: 7835 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/29/2020
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/18/2012
Proposed Top PZ Location:Sec:12 Twp: 5N 68W Footage: 2130 FSL  510 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68W Footage: 2130 FSL  510 FEL
Proposed Depth/Form:7826 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: SE/4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N/2SE/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 650 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 455, Top: , Bottom: 650 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7826 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 7826 ft.
Wellbore Completed
Completion Date:8/19/2010
Spud Date:8/14/2010Spud Date Is:ACTUAL
Measured TD:7883 ft.Measured PB depth:7838 ft.
True Vertical TD:7835 ft.True Vertical PB depth:7790 ft.
Top PZ Location:Sec:12 Twp: 5N 68WFootage: 2107 FSL  545 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68WFootage: 2106 FSL  547 FEL
Log Types:Preliminary Form 5
Log Types:P/E AILC-CNDL-CMV/C-ML; CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 681 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 681 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7870 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 603, Top: 3650 ft., Bottom: 7870 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 3650 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 431, Top: 705 ft., Bottom: 3650 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3530 ft.
SUSSEX4144 ft.
SHANNON4595 ft.
NIOBRARA6930 ft.
FORT HAYS7246 ft.
CODELL7266 ft.
J SAND7732 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/29/2020                 Interval Top: 7734 ft.    Interval Bottom: 7742 ft.

 Completed Information for Formation J SAND
1st Production Date:2/23/2011Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/14/2012
Treatment Summary:JSND TA WITH SAND PLUG AT 7500' FOR NB/CD RECOMPLETE
Formation Treatment
Treatment Date:11/30/2010
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 500 gal 15% HCl & 138,650 gal Slickwater w/ 108,300# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1284
CALC_MCF_GAS 52
CASING_PRESS 1200
MCF_GAS 52
TUBING_PRESS 1200
Perforation Data:
Interval Top:7734 ft.# Of Holes:48
Interval Bottom:7742 ft.Hole Size:0.37 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/15/2012                 Interval Top: 7268 ft.    Interval Bottom: 7284 ft.

 Completed Information for Formation CODELL
1st Production Date:3/6/2012Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2012
Treatment Summary:CD PERF 7268-7284 HOLES 64 SIZE 0.40 Frac CODL down casing w/ 131,502 gal AMP w/ 220,000# 20/40, 4,000# SB Excel. Broke @ 3,220 psi @ 2.6 bpm. ATP=3,381 psi; MTP=3,615 psi; ATR=21.4 bpm; ISDP=2,958 psi
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7268 ft.# Of Holes:64
Interval Bottom:7284 ft.Hole Size:0.4 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/29/2020                 Interval Top: 6948 ft.    Interval Bottom: 7284 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/6/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2012
Treatment Summary:NB PERF 6948-7154 HOLES 54 SIZE 0.42 CD PERF 7268-7284 HOLES 64 SIZE 0.40
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/7/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 100
BTU_GAS 1255
CALC_BBLS_OIL 100
CALC_GOR 1000
CALC_MCF_GAS 100
CASING_PRESS 1425
GRAVITY_OIL 45
MCF_GAS 100
Perforation Data:
Interval Top:6948 ft.# Of Holes:118
Interval Bottom:7284 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 6/15/2012                 Interval Top: 6948 ft.    Interval Bottom: 7154 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/6/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2012
Treatment Summary:NB PERF 6948-7154 HOLES 54 SIZE 0.42 Frac NBRR down casing w/ 252 gal 15% HCl & 168,714 gal AMP w/ 250,520# 20/40, 4,000# SB Excel. Broke @ 3,381 psi @ 2 bpm. ATP=4,817 psi; MTP=5,062 psi; ATR=21.5 bpm; ISDP=3,055 psi
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6948 ft.# Of Holes:54
Interval Bottom:7154 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/29/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
