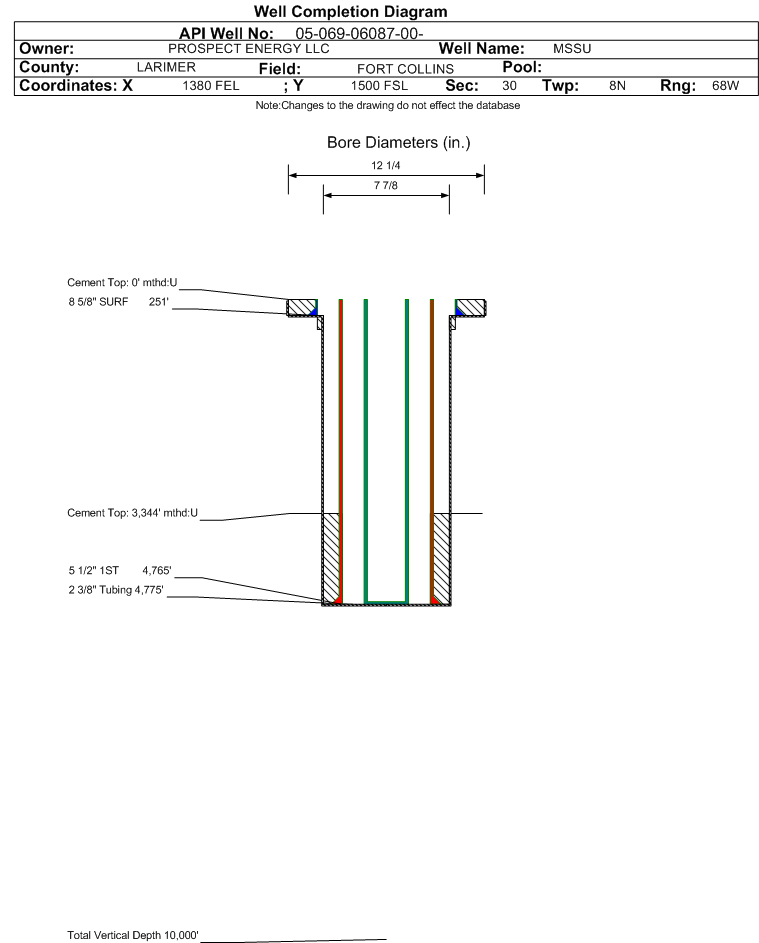

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-06087		Well Classification: OW Status: PA - 4/14/2017
Well Name/No:MSSU #30-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/14/2017
FacilityID:216900LocationID:333082
Municipality/County:FORT COLLINS / LARIMER #069Location:NWSE 30 8N68W 6
Field:FORT COLLINS - #25100Elevation:5080 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1500FSL  1380 FELLat/Long: 40.628940 / -105.043882Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.628909 / -105.043818Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/14/2017             Measured TD: 4876 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/14/2017
Wellbore Permit
Permit #:19791024 Expiration Date:1/25/1980
Proposed Depth/Form:4770 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:10/23/1992
Spud Date:10/15/1979Spud Date Is:ACTUAL
Measured TD:4876 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, OWP RADIOACTIVITY LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 251 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 471 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4765 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3344 ft., Bottom: 4765 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3881 ft.
FORT HAYS4235 ft.
CARLILE4270 ft.
GREENHORN4288 ft.
MUDDY4760 ft.

Formation MDDY                     Formation Classification:  GW                     Status:  AB - 4/14/2017                 Interval Top: 4760 ft.

 Completed Information for Formation MUDDY
1st Production Date:2/14/1980Choke Size:
Formation Name:MUDDYCommingled:
Production Method:PUMPING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:10/23/1992
Treatment Summary:SEE SCANNED DOCUMENT # 00240066
Tubing Size:2.375 in.Tubing Setting Depth:4775 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/1980Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 50
BBLS_OIL 35
CALC_GOR 914
GRAVITY_OIL 35
MCF_GAS 32
No Perforation Data was found for formation MDDY.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/14/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
