COGIS - WELL SCOUT CARD

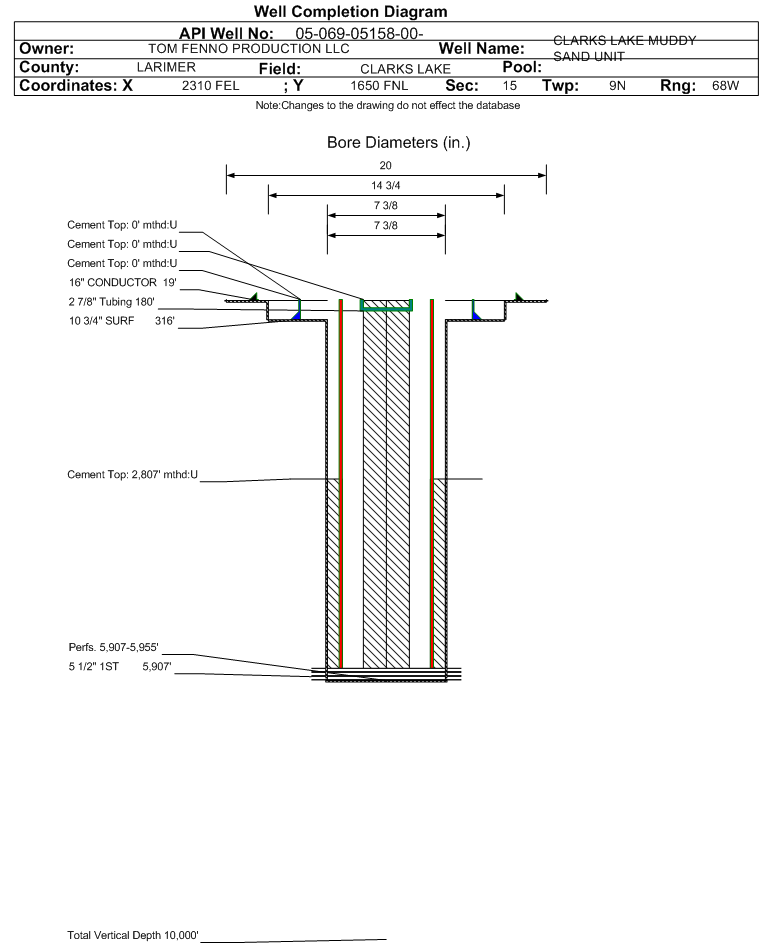

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-05158		Well Classification: OW Status: PA - 6/30/2014
Well Name/No:CLARKS LAKE MUDDY SAND UNIT #P-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BLACKROCK ENERGY CORP - 10746
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/30/2014
FacilityID:216736LocationID:307069
County:LARIMER #069Location:SWNE 15 9N68W 6
Field:CLARKS LAKE - #11300Elevation:5316 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FNL  2310 FELLat/Long: 40.750599 / -104.989541Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.750551 / -104.989529Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/30/2014             Measured TD: 5955 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/30/2014
Wellbore Permit
Permit #:19440000 Expiration Date:8/31/1945
Proposed Depth/Form:5960 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:8/5/1965
Spud Date:9/25/1944Spud Date Is:ACTUAL
Measured TD:5955 ft.Measured PB depth:5730 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 19 ft., Weight: 57.47 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: , Size: 10.75 in., Top: , Depth: 316 ft., Weight: 40.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 316 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.375 in., Size: 5.5 in., Top: , Depth: 5907 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: 2807 ft., Bottom: 5907 ft., Determination Method: CALC
Casing:String Type: OPEN HOLE, Hole Size: 7.375 in., Size: , Top: , Depth: 5955 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:

Formation MDDY                     Formation Classification:  OW                     Status:  AB - 6/30/2014                 Interval Top: 5907 ft.    Interval Bottom: 5955 ft.

 Completed Information for Formation MUDDY
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:MUDDYCommingled:
Production Method:
Open Hole Completion:
Tubing Size:2.875 in.Tubing Setting Depth:180 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 500
Perforation Data:
Interval Top:5907 ft.# Of Holes:
Interval Bottom:5955 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/30/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
