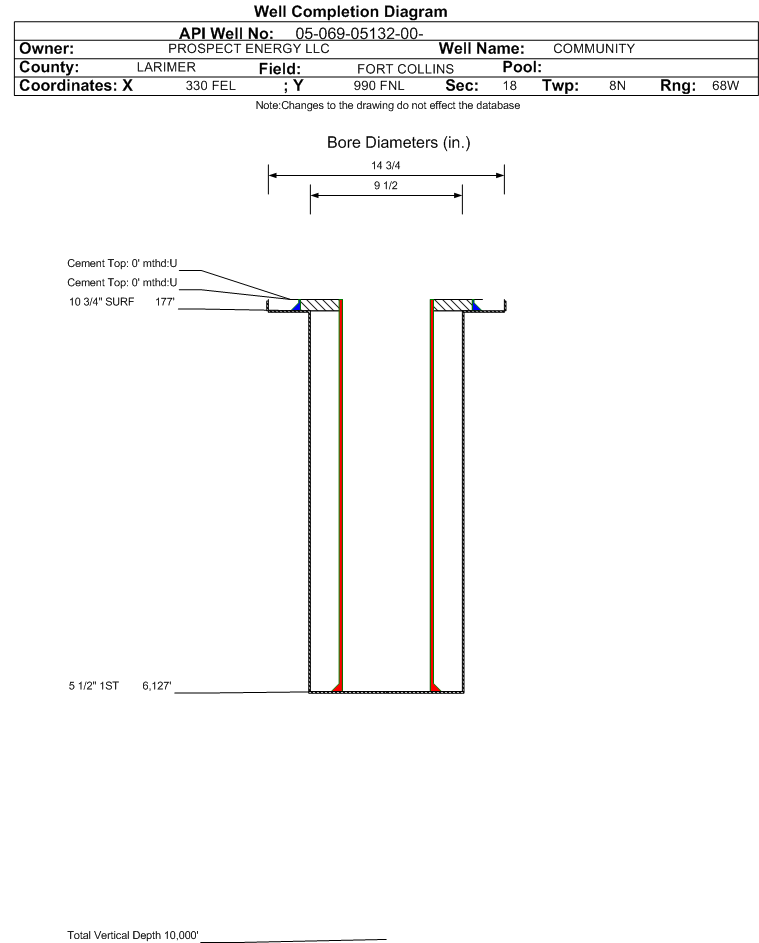

Wellbore #00 Wellbore Classification: OW Status: SI - 7/1/2023 Measured TD: 6134 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 7/1/2023 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/29/2015 | | Proposed Depth/Form: | 5200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: 40, Drill Unit: NENE/4 | | Formation And Spacing: | Code: LYNS , Formation: LYONS , Order: 0 , Unit Acreage: 0, Drill Unit: | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: 0 ft., Depth: 177 ft., Weight: 32.75 , Citings Type: PLANNED | | Cement: | Sacks: 150, Top: 0 ft., Bottom: 177 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6126 ft., Weight: 14 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 5016 ft., Bottom: 6126 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5016 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 4700 ft., Bottom: 5016 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/8/1957 | | Spud Date: | 12/12/1956 | Spud Date Is: | ACTUAL | | Measured TD: | 6134 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Log Types: | ELECTRICAL, GAMMA-MICRO-LATER, DIPMETER | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: 0 ft., Depth: 177 ft., Weight: 32.75 , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 0 ft., Bottom: 177 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6126 ft., Weight: 14 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 5016 ft., Bottom: 6126 ft., Determination Method: CBL | | Casing: | String Type: OPEN HOLE, Hole Size: 7.875 in., Size: , Top: 6126 ft., Depth: 6134 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 6134 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 5016 ft., Depth: 5300 ft., Bottom: 5300 ft., Sacks: 60, Method: STAGE TOOL | | Additional Cement: | String Type: 1ST , Top: 3500 ft., Depth: 4240 ft., Bottom: 4240 ft., Sacks: 235, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 1000 ft., Depth: 1450 ft., Bottom: 1450 ft., Sacks: 235, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 4500 ft., Depth: 5016 ft., Bottom: 5016 ft., Sacks: 200, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 0 ft. | | | | | HYGIENE | 400 ft. | | | | | NIOBRARA | 3861 ft. | | | | | TIMPAS | 4198 ft. | | | | | CODELL | 4214 ft. | | | | | BENTONITE | 4230 ft. | | | | | GRANEROS | 4493 ft. | | | | | MUDDY | 4660 ft. | | | | | DAKOTA | 4929 ft. | | | | | MORRISON | 4971 ft. | | | | | SUNDANCE | 5135 ft. | | | | | ENTRADA | 5223 ft. | | | | | LYKINS | 5422 ft. | | | | | LYONS | 6098 ft. | | Y | |
Formation LYNS Formation Classification: OG Status: AB - 6/28/2013 Interval Top: 6100 ft. Interval Bottom: 6134 ft.| Completed Information for Formation LYONS | | 1st Production Date: | 2/8/1957 | Choke Size: | | | Formation Name: | LYONS | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_BBLS_OIL | 95 | | GRAVITY_OIL | 27.2 |
| | Perforation Data: | | Interval Top: | 6100 ft. | # Of Holes: | | | Interval Bottom: | 6134 ft. | Hole Size: | |
|
Formation DKTA Formation Classification: OW Status: SI - 7/1/2023 Interval Top: 4927 ft. Interval Bottom: 4942 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | 7/3/2013 | Choke Size: | | | Formation Name: | DAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/3/2013 | Treatment End Date: | 7/3/2013 | | Treatment Summary: | The Dakota formation was not treated with water, acid, or gas. | | Total fluid used in treatment (bbls): | 0 | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 4871 ft. | | Tubing Packer Depth: | 4856 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation DKTA. |
| | Perforation Data: | | Interval Top: | 4927 ft. | # Of Holes: | 45 | | Interval Bottom: | 4942 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
06/30/2023 |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
