Wellbore #00 Wellbore Classification: CBM Status: PR - 5/22/2012 Measured TD: 2965 ft. Vertical TD: 2878 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 5/22/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/9/2013 | | Proposed Top PZ Location: | Sec:35 Twp: 33N 7W | Footage: 707 FNL 742 FEL | | Bottom Hole Location: | Sec:35 Twp: 33N 7W | Footage: 682 FNL 694 FEL | | Proposed Depth/Form: | 2949 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-185 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 225 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 225 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2949 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 377, Top: 0 ft., Bottom: 2949 ft. |
| | |

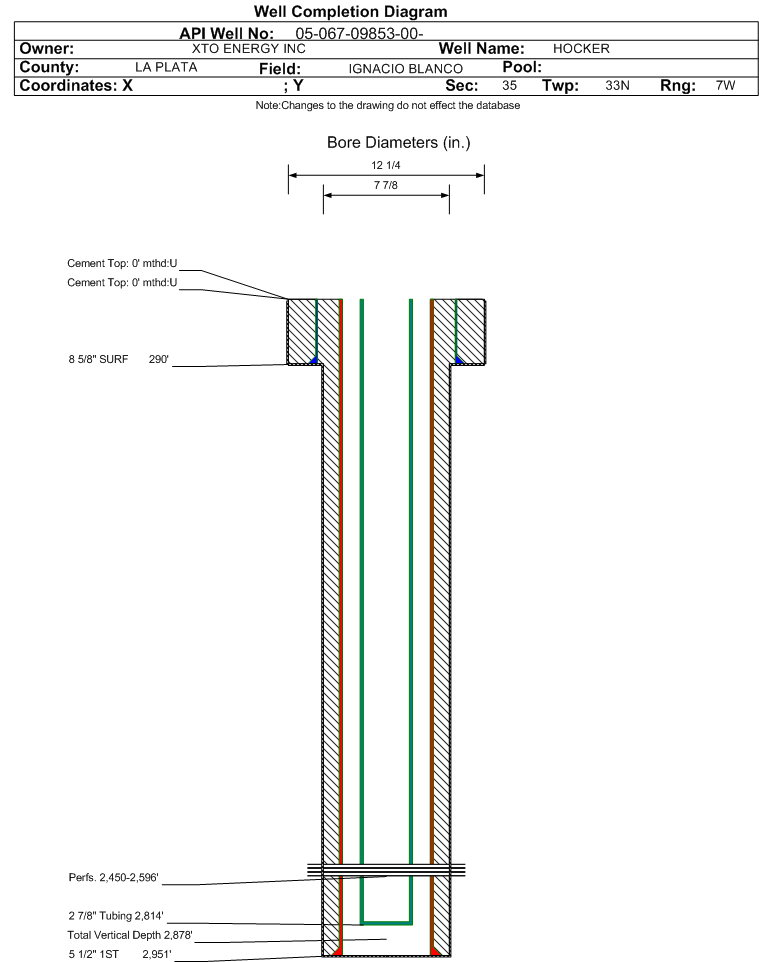

| Wellbore Completed | | Completion Date: | 11/17/2011 | | Spud Date: | 11/10/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 2965 ft. | Measured PB depth: | 2904 ft. | | True Vertical TD: | 2878 ft. | True Vertical PB depth: | 2817 ft. | | Top PZ Location: | Sec:35 Twp: 33N 7W | Footage: 707 FNL 742 FEL | | Bottom Hole Location: | Sec:35 Twp: 33N 7W | Footage: 682 FNL 694 FEL | | Log Types: | Hole Volume Caliper, Compact Triple Combo Quicklook, Compensated Photo Density Compensated Dual Neutron, Array Induction-RTAP Shallow Focused Electric Log | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 290 ft., Weight: 24# , Citings Type: ACTUAL | | Cement: | Sacks: 245, Top: 0 ft., Bottom: 290 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2951 ft., Weight: 17# , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 2951 ft., Determination Method: VISU | | Formation | Interval Top | Log Bottom | Cored | DSTs | | OJO ALAMO | 1349 ft. | | N | N | | KIRTLAND | 1612 ft. | | N | N | | FRUITLAND | 2159 ft. | | N | N | | FRUITLAND COAL | 2447 ft. | | N | N | | PICTURED CLIFFS | 2833 ft. | | N | N |
Formation FRLDC Formation Classification: GW Status: PR - 5/22/2012 Interval Top: 2450 ft. Interval Bottom: 2596 ft.| Completed Information for Formation FRUITLAND COAL | | 1st Production Date: | 5/16/2012 | Choke Size: | | | Formation Name: | FRUITLAND COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/30/2012 | | Treatment Summary: | Acidized w/2,000 gals 15% HCl acid. Frac'd w/152,421 gals frac fld gel carrying 156,500# 16/30 & 70,890# 12/20 sand. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2814 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/22/2012 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1010 | | CALC_BBLS_H2O | 111 | | CALC_MCF_GAS | 169 | | CASING_PRESS | 224 | | GRAVITY_OIL | 604 | | TUBING_PRESS | 168 |
| | Perforation Data: | | Interval Top: | 2450 ft. | # Of Holes: | 97 | | Interval Bottom: | 2596 ft. | Hole Size: | 0.54 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 28051 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 13.268 |
| Average MCFE per Day | 76.961 |
| Federal Financial Assurance | i | Y |
|
|
