Wellbore #00 Wellbore Classification: CBM Status: PR - 12/14/2010 Measured TD: 3232 ft. Vertical TD: 2959 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 12/14/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/29/2012 | | Proposed Top PZ Location: | Sec:2 Twp: 32N 7W | Footage: 1913 FSL 728 FEL | | Bottom Hole Location: | Sec:2 Twp: 32N 7W | Footage: 1975 FSL 677 FEL | | Proposed Depth/Form: | 3230 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: FRLDC , Formation: FRUITLAND COAL , Order: 112-185 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 225 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 225 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 3230 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 408, Top: 0 ft., Bottom: 3230 ft. |
| | |

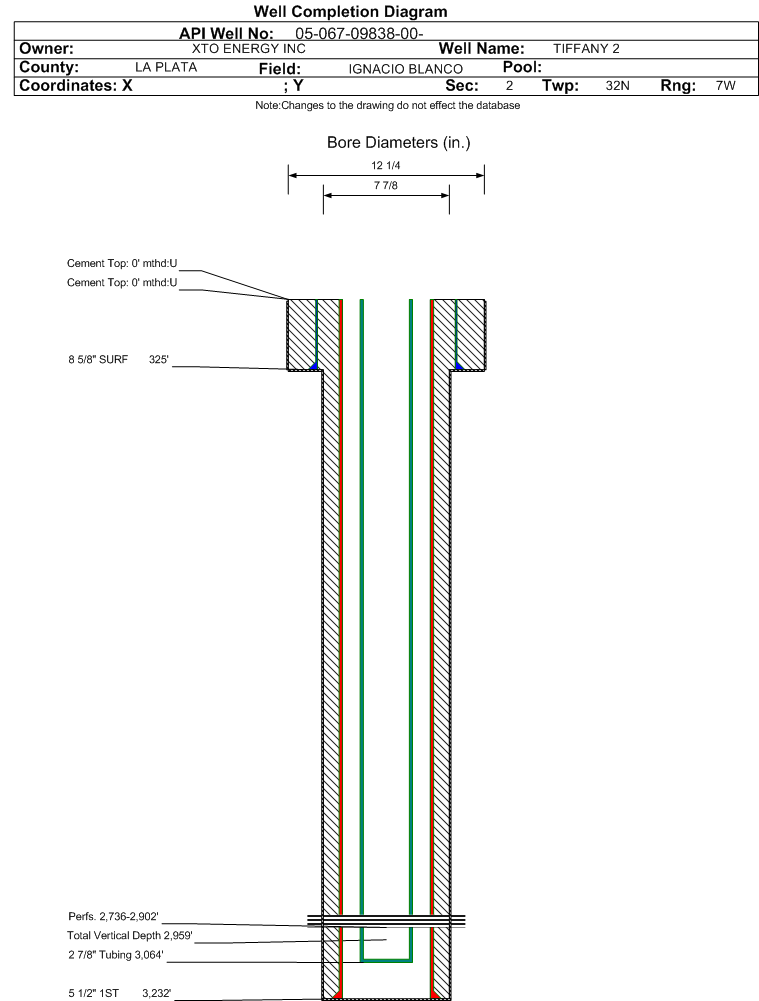

| Wellbore Completed | | Completion Date: | 11/3/2010 | | Spud Date: | 10/30/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 3232 ft. | Measured PB depth: | 3181 ft. | | True Vertical TD: | 2959 ft. | True Vertical PB depth: | 2908 ft. | | Top PZ Location: | Sec:2 Twp: 32N 7W | Footage: 1913 FSL 728 FEL | | Bottom Hole Location: | Sec:2 Twp: 32N 7W | Footage: 1975 FSL 677 FEL | | Log Types: | RST/GR/CCL; CBL/GR/CCL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 325 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 215, Top: 0 ft., Bottom: 325 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 3232 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 3232 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | OJO ALAMO | 1354 ft. | | N | N | | KIRTLAND | 1452 ft. | | N | N | | FRUITLAND | 2531 ft. | | N | N | | FRUITLAND COAL | 2734 ft. | | N | N | | PICTURED CLIFFS | 2923 ft. | | | |
Formation FRLDC Formation Classification: GW Status: PR - 12/14/2010 Interval Top: 2736 ft. Interval Bottom: 2902 ft.| Completed Information for Formation FRUITLAND COAL | | 1st Production Date: | 12/9/2010 | Choke Size: | | | Formation Name: | FRUITLAND COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/20/2010 | | Treatment Summary: | Acidized w/3,500 gals. 15% HCL acid. Frac'd w/175,638 gals. XL fluid carrying 265,160# 16/30 sand. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 3064 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/14/2010 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 79 | | BTU_GAS | 979 | | CALC_BBLS_H2O | 79 | | CALC_MCF_GAS | 401 | | CASING_PRESS | 132 | | MCF_GAS | 401 | | TUBING_PRESS | 191 |
| | Perforation Data: | | Interval Top: | 2736 ft. | # Of Holes: | 89 | | Interval Bottom: | 2902 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 51587 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 24.356 |
| Average MCFE per Day | 141.269 |
| Federal Financial Assurance | i | Y |
|
|
