Wellbore #00 Wellbore Classification: GW Status: PA - 11/3/2014 Measured TD: 8195 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 11/3/2014 | | Wellbore Permit | | | Permit #: | 20050472 | Expiration Date: | 3/16/2006 | | Proposed Depth/Form: | 7960 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 112-46 , Unit Acreage: 640, Drill Unit: ALL |
| | |

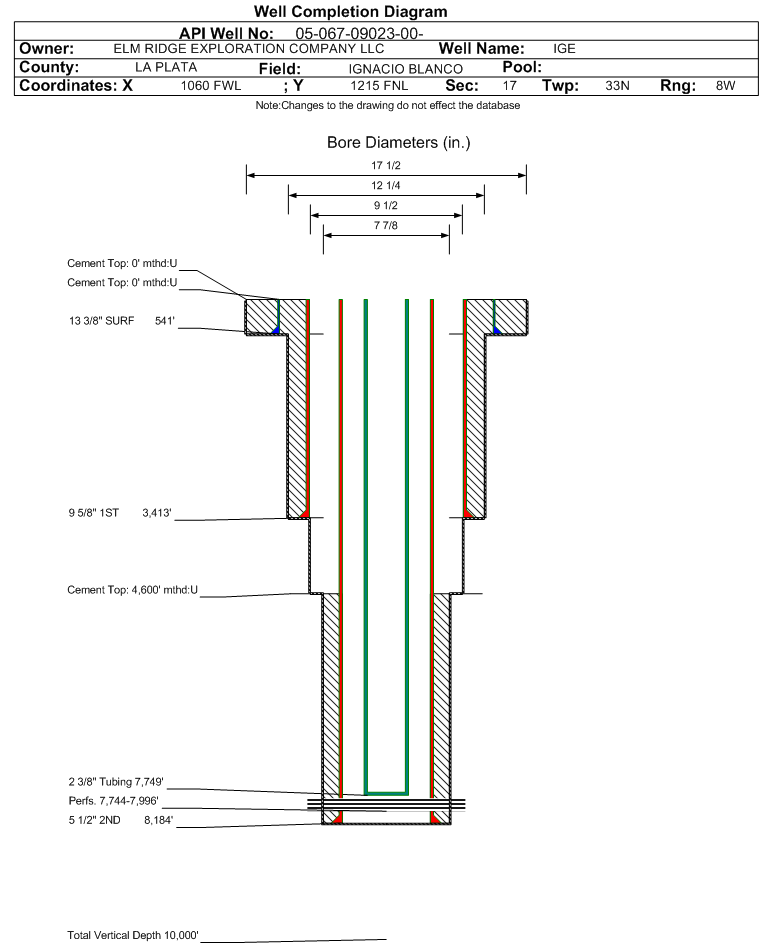

| Wellbore Completed | | Completion Date: | 10/2/2005 | | Spud Date: | 8/7/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8195 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | HIGH RESOLUTION INDUCTION LOG & SPECTRAL DENSITY EPITHERMAL NEUTRON | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: , Depth: 541 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 0 ft., Bottom: 541 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 3413 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 1250, Top: 0 ft., Bottom: 3413 ft., Determination Method: VISU | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8184 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 693, Top: 4600 ft., Bottom: 8184 ft., Determination Method: CALC | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: 5.5 in., Top: , Depth: 4585 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 682, Top: 0 ft., Bottom: 4585 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FRUITLAND COAL | 2643 ft. | 2926 ft. | N | N | | PICTURED CLIFFS | 2927 ft. | 3349 ft. | N | N | | CLIFF HOUSE | 4812 ft. | 5243 ft. | N | N | | MENEFEE | 5244 ft. | 5440 ft. | N | N | | POINT LOOKOUT | 5441 ft. | 5592 ft. | N | N | | DAKOTA | 7709 ft. | | N | N |
Formation DKTA Formation Classification: GW Status: AB - 11/3/2014 Interval Top: 7744 ft. Interval Bottom: 7996 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | N/A | Choke Size: | 0.500 in. | | Formation Name: | DAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/2/2005 | | Treatment Summary: | 114,331 GALS OF 70Q DELTA FOAM FRAC FLUID. PLACED 1485 SKS 20-40 SCL SAND W/ 1 TO 5.35# CONCENTRATE. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7749 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/5/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | CALC_BBLS_H2O | 0 | | CALC_MCF_GAS | 700 | | CASING_PRESS | 0 | | MCF_GAS | 700 | | TUBING_PRESS | 95 |
| | Perforation Data: | | Interval Top: | 7744 ft. | # Of Holes: | 212 | | Interval Bottom: | 7996 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/03/2014 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
