COGIS - WELL SCOUT CARD

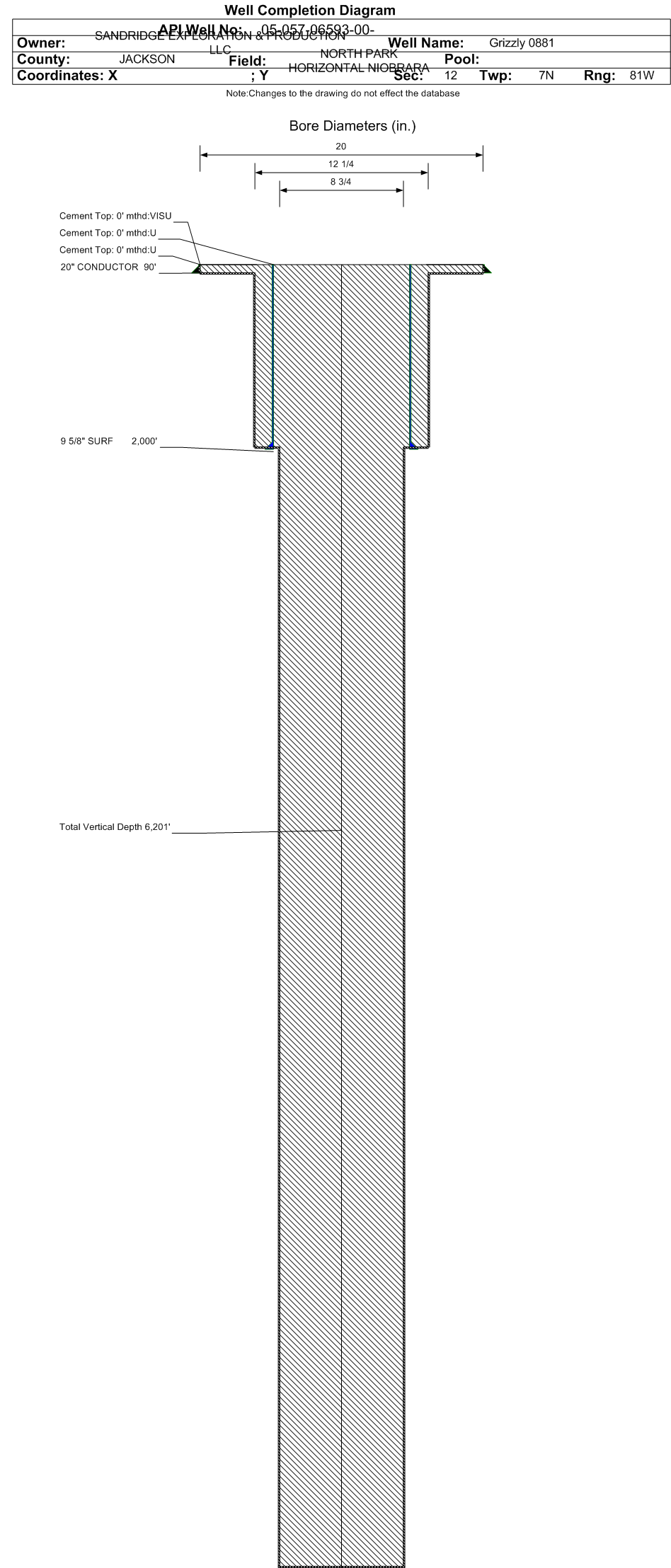

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06593		Well Classification: OW Status: PR - 10/1/2023
Well Name/No:Grizzly 0881 #2-1H36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2023
FacilityID:448969LocationID:448834
County:JACKSON #057Location:NENE 12 7N81W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8130 ft.
Basin:NORTH PARK BASIN
Planned Location:560FNL  11 FELLat/Long: 40.598147 / -106.425233Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.598150 / -106.425231Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 8/7/2017
End Date: 8/21/2017
Reported: 11/6/2017
Days to report: 77
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 8/16/2018             Measured TD: 14267 ft.    Vertical TD: 6201 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 8/16/2018
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:1/17/2019
Proposed Top PZ Location:Sec:36 Twp: 8N 81W Footage: 2184 FSL  861 FEL
Bottom Hole Location:Sec:36 Twp: 8N 81W Footage: 2184 FSL  861 FEL
Proposed Depth/Form:18008 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-43 , Unit Acreage: 1280, Drill Unit: Sec 1 & 36: ALL
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 189, Top: 0 ft., Bottom: 90 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 510, Top: 0 ft., Bottom: 2000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 18008 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 3114, Top: 0 ft., Bottom: 18008 ft.
Wellbore Completed
Completion Date:6/6/2017
Spud Date:6/4/2017Spud Date Is:ACTUAL
Measured TD:14267 ft.Measured PB depth:14267 ft.
True Vertical TD:6201 ft.True Vertical PB depth:6201 ft.
Bottom Hole Location:Sec:36 Twp: 8N 81WFootage: 2184 FSL  861 FEL
Log Types:Mud, MWD/LWD, (Triple Combo Open Hole in 057-06594)
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: 94 , Citings Type: ACTUAL
Cement:Sacks: 0, Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 2000 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2000 ft., Depth: 14267 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
COALMONT0 ft.
PIERRE3081 ft.
SUSSEX3765 ft.
SHANNON4336 ft.
MANCOS5636 ft.
NIOBRARA5966 ft.
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: PR - 10/1/2023             Measured TD: 17295 ft.    Vertical TD: 7123 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        PR - 10/1/2023
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:6/28/2019
Proposed Top PZ Location:Sec:1 Twp: 7N 81W Footage: 123 FSL  878 FEL
Bottom Hole Location:Sec:36 Twp: 8N 81W Footage: 116 FNL  980 FEL
Proposed Depth/Form:17264 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-43 , Unit Acreage: 1280, Drill Unit: Sec 1 & 36: ALL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 2000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17264 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 3168, Top: 0 ft., Bottom: 17264 ft.
Wellbore Completed
Completion Date:6/28/2017
Spud Date:6/4/2017Spud Date Is:ACTUAL
Measured TD:17295 ft.Measured PB depth:17193 ft.
True Vertical TD:7123 ft.True Vertical PB depth:7123 ft.
Top PZ Location:Sec:1 Twp: 7N 81WFootage: 123 FSL  878 FEL
Bottom Hole Location:Sec:36 Twp: 8N 81WFootage: 116 FNL  980 FEL
Log Types:CBL, Mud, MWD/LWD
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: 94 , Citings Type: ACTUAL
Cement:Sacks: 0, Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2000 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 2000 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17289 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 3170, Top: 1780 ft., Bottom: 17289 ft., Determination Method: CBL

Formation NBRR                     Formation Classification:  OW                     Status:  PR - 10/1/2023                 Interval Top: 6590 ft.    Interval Bottom: 17126 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/18/2017Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:8/7/2017Treatment End Date:8/21/2017
Treatment Summary:Perf & Plug Completion: 1,152 bbls of 15% HCL, 218,724 bbls of crosslink water, and 1,249,284 lbs of 40/70, 6,455,389 lbs of 30/50 and 2,599,128 lbs of 20/40 proppant.
Total fluid used in treatment (bbls):219876Max pressure during treatment (psi):8835
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:42
Total acid used in treatment (bbls):1152Min frac gradient (psi/ft):0.73
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):54335
Fresh water used in treatment (bbls):218724Disposition method For flowback:DISPOSAL
Total proppant used (lbs):10303801Green completions techniques utilized:No
Reason green techniques Not utilized: PIPELINE
Tubing Size:2.875 in.Tubing Setting Depth:6212 ft.
Tubing Packer Depth:6212 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/30/2017Test Method:
Hours Tested:24Gas Type:WET
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 2127
BBLS_OIL 648
BTU_GAS 1450
CALC_BBLS_H2O 2127
CALC_BBLS_OIL 648
CALC_GOR 372
CALC_MCF_GAS 241
CASING_PRESS 475
GRAVITY_OIL 38
MCF_GAS 241
TUBING_PRESS 160
Perforation Data:
Interval Top:6590 ft.# Of Holes:1260
Interval Bottom:17126 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)2121
Total Gas Produced (MCF)7086
GOR3340
GOR DeterminationBOE
Average BOE per Day9.188
Average MCFE per Day53.292

 Federal Financial Assurance  i

 Tribal Well  i No
