COGIS - WELL SCOUT CARD

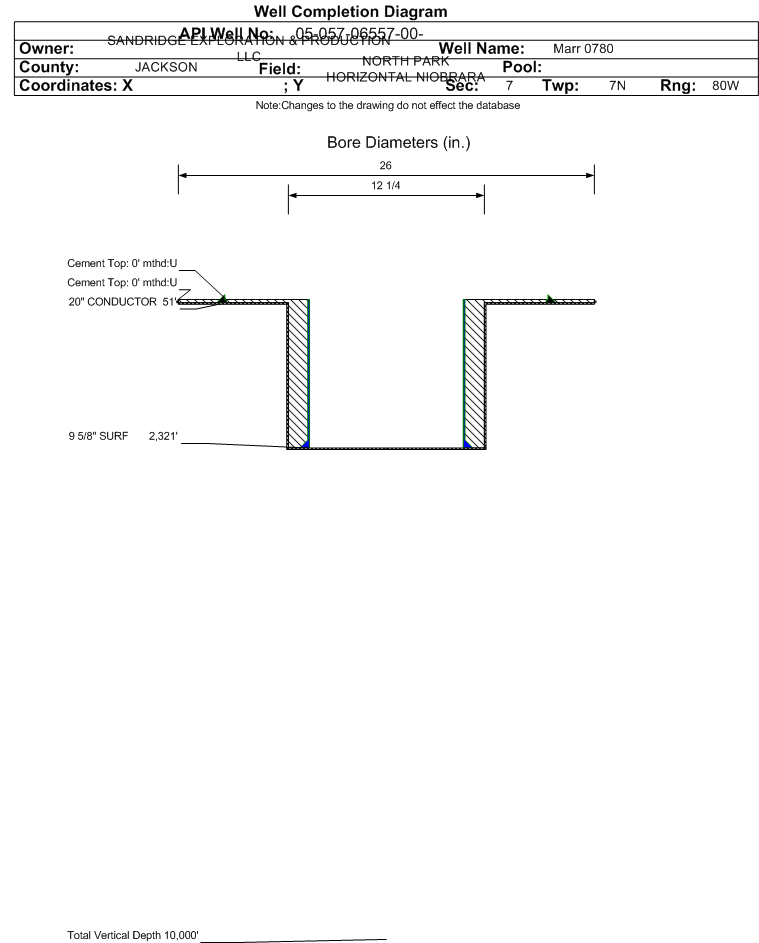

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-057-06557		Well Classification: OW Status: SO - 1/1/2021
Well Name/No:Marr 0780 #10-6H31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FULCRUM ENERGY OPERATING LLC - 10805
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SOStatus Date1/1/2021
FacilityID:446421LocationID:413754
County:JACKSON #057Location:NWNE 7 7N80W 6
Field:NORTH PARK HORIZONTAL NIOBRARA - #60120Elevation:8130 ft.
Basin:NORTH PARK BASIN
Planned Location:414FNL  2412 FELLat/Long: 40.598326 / -106.415652Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.598325 / -106.415653Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SO - 1/1/2021             Measured TD: 2321 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SO - 1/1/2021
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:3/2/2021
Proposed Top PZ Location:Sec:6 Twp: 7N 80W Footage: 550 FSL  1670 FEL
Bottom Hole Location:Sec:31 Twp: 8N 80W Footage: 100 FNL  1670 FEL
Proposed Depth/Form:17668 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 531-60 , Unit Acreage: 930, Drill Unit: S.6&31:W2,W2E2
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 90 ft., Weight: 65 , Citings Type: PLANNED
Cement:Sacks: 63, Top: 0 ft., Bottom: 90 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2400 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 630, Top: 0 ft., Bottom: 2400 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 17668 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: 3300, Top: , Bottom: 17668 ft.
Wellbore Completed
Completion Date:8/16/2016
Spud Date:8/14/2016Spud Date Is:ACTUAL
Measured TD:2321 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Bottom Hole Location:Sec:31 Twp: 8N 80WFootage: 100 FNL  1670 FEL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 51 ft., Weight: 106.5 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 51 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2321 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 599, Top: 0 ft., Bottom: 2321 ft., Determination Method: VISU
Additional Cement:String Type: SURF , Top: 0 ft., Depth: 0 ft., Bottom: , Sacks: 100, Method: 1 INCH
  No formation data to display.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/19/2025
Defined Inactive (SO)YLast Production
01/01/2021
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
