Wellbore #00 Wellbore Classification: OW Status: TA - 10/1/2025 Measured TD: 10800 ft. Vertical TD: 6559 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 10/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/20/2015 | | Proposed Top PZ Location: | Sec:7 Twp: 7N 80W | Footage: 704 FNL 2592 FEL | | Bottom Hole Location: | Sec:7 Twp: 7N 80W | Footage: 614 FSL 655 FWL | | Proposed Depth/Form: | 7600 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 531-2 , Unit Acreage: 628, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 405, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 7369 ft., Weight: 23#P110 , Citings Type: PLANNED | | Cement: | Sacks: 520, Top: 0 ft., Bottom: 7369 ft. | | Casing: | String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 11530 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 470, Top: 6619 ft., Bottom: 11530 ft. | | Casing: | String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7600 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

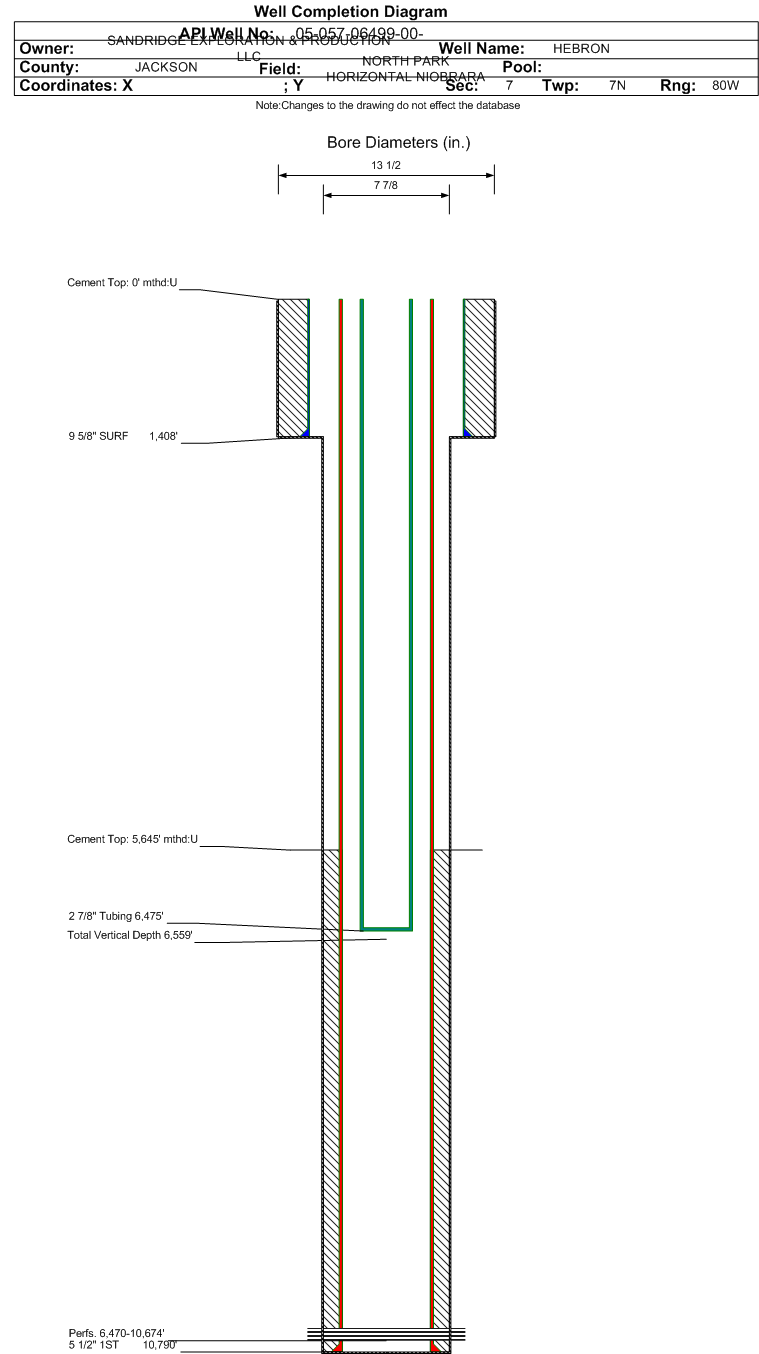

| Wellbore Completed | | Completion Date: | 8/31/2013 | | Spud Date: | 7/27/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10800 ft. | Measured PB depth: | 10790 ft. | | True Vertical TD: | 6559 ft. | True Vertical PB depth: | 6559 ft. | | Top PZ Location: | Sec:7 Twp: 7N 80W | Footage: 704 FNL 2592 FEL | | Bottom Hole Location: | Sec:7 Twp: 7N 80W | Footage: 614 FSL 655 FWL | | Log Types: | Gamma Ray, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1408 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 0 ft., Bottom: 1408 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 10790 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 5645 ft., Bottom: 10790 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE A | 3121 ft. | | N | N | | SUSSEX | 4950 ft. | | N | N | | PIERRE | 5130 ft. | | N | N | | NIOBRARA | 6230 ft. | | N | Y |
Formation NBRR Formation Classification: OW Status: TA - 10/1/2025 Interval Top: 6470 ft. Interval Bottom: 10674 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/9/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/24/2013 | Treatment End Date: | 9/26/2013 | | Treatment Summary: | Frac'd with 71,719 BBLS gelled/ fresh water; 4,127,851 lbs Ottowa proppant. | | Total fluid used in treatment (bbls): | 72219 | Max pressure during treatment (psi): | 8092 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.35 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | 500 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 34185 | | Fresh water used in treatment (bbls): | 71719 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4127851 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6475 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/9/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1419 | | BBLS_OIL | 495 | | BTU_GAS | 1133 | | CALC_BBLS_H2O | 1419 | | CALC_BBLS_OIL | 495 | | CALC_GOR | 1048 | | CALC_MCF_GAS | 519 | | CASING_PRESS | 250 | | GRAVITY_OIL | 38 | | MCF_GAS | 519 |
| | Perforation Data: | | Interval Top: | 6470 ft. | # Of Holes: | 960 | | Interval Bottom: | 10674 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
07/01/2025 |
| Defined Inactive (TA ) | Y | Defined Inactive
05/19/2025 |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
