Wellbore #00 Wellbore Classification: GW Status: PR - 3/3/2014 Measured TD: 8214 ft. Vertical TD: 8021 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/3/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/2/2015 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 94W | Footage: 1701 FNL 2103 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 1701 FNL 2103 | | Proposed Depth/Form: | 8187 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: Sec. 4: All | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1125 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 297, Top: 0 ft., Bottom: 1125 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8187 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 935, Top: , Bottom: 8187 ft. |
| | |

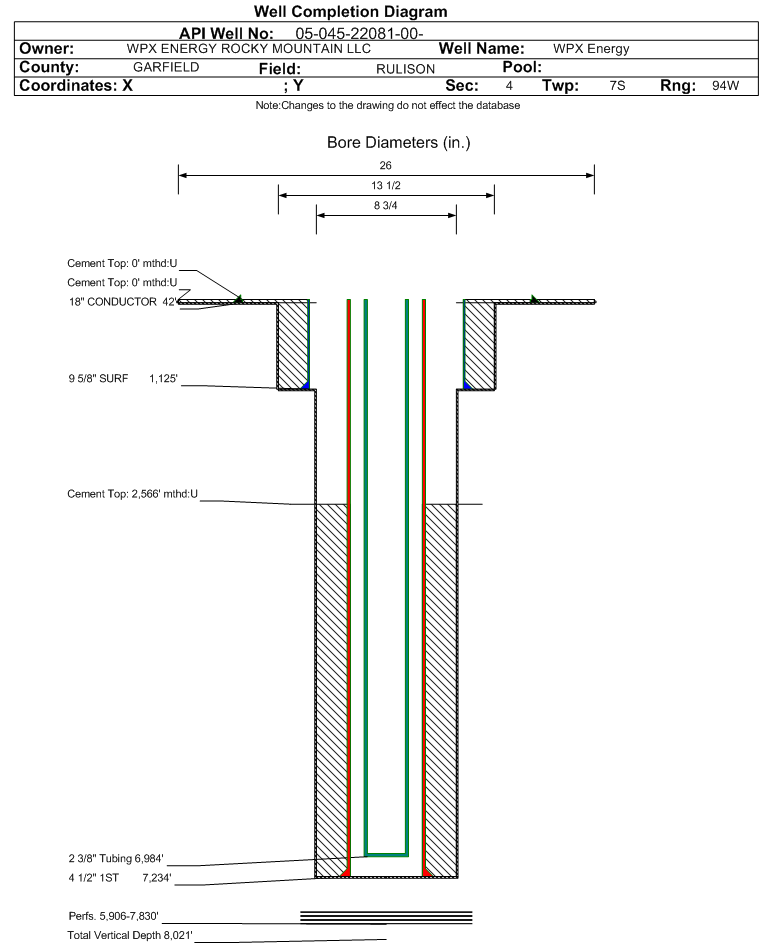

| Wellbore Completed | | Completion Date: | 12/15/2013 | | Spud Date: | 12/2/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8214 ft. | Measured PB depth: | 7201 ft. | | True Vertical TD: | 8021 ft. | True Vertical PB depth: | 7008 ft. | | Top PZ Location: | Sec:4 Twp: 7S 94W | Footage: 1685 FNL 2127 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 1702 FNL 2155 FEL | | Log Types: | SP/GR/HDIL/ZDL/CN/MUD and CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1125 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1125 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7234 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1370, Top: 2566 ft., Bottom: 7234 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2181 ft. | | | | | MESAVERDE | 4554 ft. | | | | | CAMEO | 7118 ft. | | | | | ROLLINS | 8012 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 3/3/2014 Interval Top: 5906 ft. Interval Bottom: 7830 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/1/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/30/2014 | Treatment End Date: | 2/4/2014 | | Treatment Summary: | 1481 Gals 7 1/2% HCL; 737603# 40/70 Sand; 32283# 20/40 Sand; 20962 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 20997 | Max pressure during treatment (psi): | 5647 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | 35 | Min frac gradient (psi/ft): | 0.84 | | Recycled water used in treatment (bbls): | 20962 | Total flowback volume recovered (bbls): | 9089 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 769886 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6984 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/3/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1068 | | CALC_MCF_GAS | 1368 | | CASING_PRESS | 1809 | | MCF_GAS | 1368 | | TUBING_PRESS | 1604 |
| | Perforation Data: | | Interval Top: | 5906 ft. | # Of Holes: | 78 | | Interval Bottom: | 7830 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 18669 |
| GOR | 518583 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.920 |
| Average MCFE per Day | 51.710 |
| Federal Financial Assurance | i | |
|
|
