Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2015 Measured TD: 5775 ft. Vertical TD: 5127 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/28/2015 | | Proposed Top PZ Location: | Sec:28 Twp: 7S 96W | Footage: 2265 FNL 2302 FEL | | Bottom Hole Location: | Sec:28 Twp: 7S 96W | Footage: 2226 FNL 2377 FEL | | Proposed Depth/Form: | 5800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1609 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 416, Top: 0 ft., Bottom: 1609 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5735 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 747, Top: 2372 ft., Bottom: 5735 ft. |
| | |

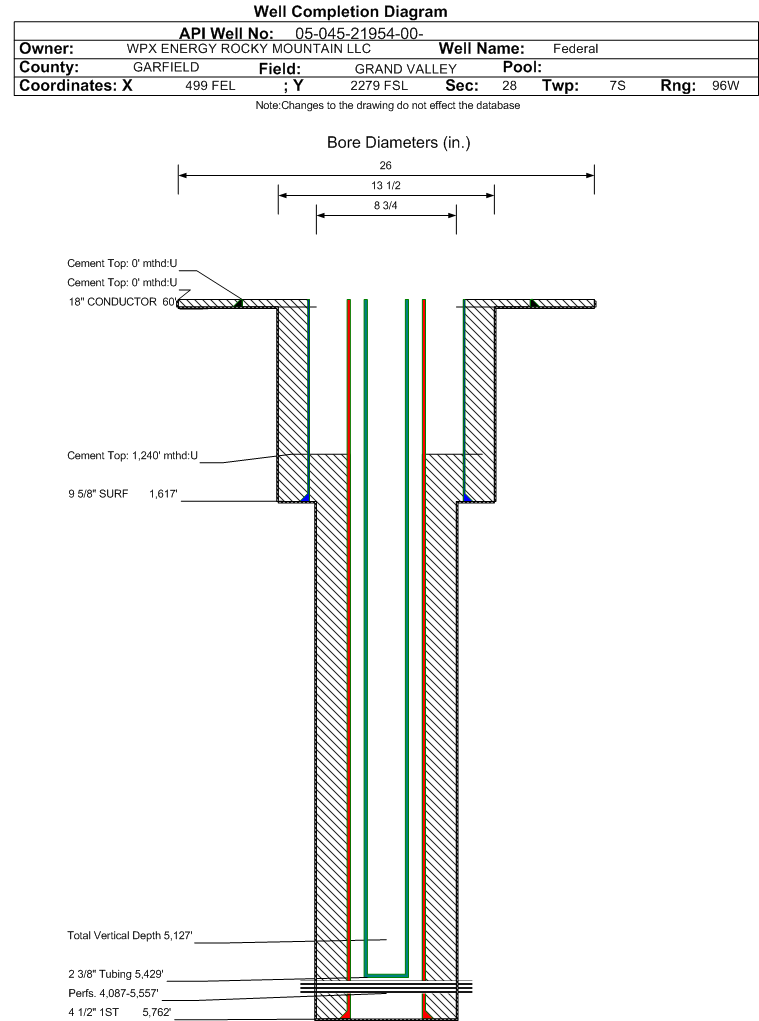

| Wellbore Completed | | Completion Date: | 10/8/2014 | | Spud Date: | 10/2/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 5775 ft. | Measured PB depth: | 5718 ft. | | True Vertical TD: | 5127 ft. | True Vertical PB depth: | 5070 ft. | | Top PZ Location: | Sec:28 Twp: 7S 96W | Footage: 2265 FNL 2302 FEL | | Bottom Hole Location: | Sec:28 Twp: 7S 96W | Footage: 2226 FNL 2377 FEL | | Log Types: | SP GR HDIL ZDL CN CBL MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1617 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 1617 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5762 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 955, Top: 1240 ft., Bottom: 5762 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 754 ft. | | N | | | MESAVERDE | 2613 ft. | | N | | | CAMEO | 5199 ft. | | N | | | ROLLINS | 5660 ft. | | N | |
Formation WFCM Formation Classification: OW Status: PR - 11/1/2015 Interval Top: 4087 ft. Interval Bottom: 5557 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/1/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/24/2014 | Treatment End Date: | 11/28/2014 | | Treatment Summary: | 5 STAGES; 718400 # 40/70 Sand: 27696 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 27696 | Max pressure during treatment (psi): | 5881 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.71 | | Recycled water used in treatment (bbls): | 27696 | Total flowback volume recovered (bbls): | 13699 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 718400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5429 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/9/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1103 | | CALC_MCF_GAS | 1384 | | CASING_PRESS | 1245 | | MCF_GAS | 1384 | | TUBING_PRESS | 1145 |
| | Perforation Data: | | Interval Top: | 4087 ft. | # Of Holes: | 104 | | Interval Bottom: | 5557 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 67 |
| Total Gas Produced (MCF) | 48214 |
| GOR | 719611 |
| GOR Determination | MCFE |
| Average BOE per Day | 22.952 |
| Average MCFE per Day | 133.104 |
| Federal Financial Assurance | i | Y |
|
|
