COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21931		Well Classification: GW Status: PR - 11/7/2013
Well Name/No:Bosely #SG 702-23-HN1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/7/2013
FacilityID:432184LocationID:334689
County:GARFIELD #045Location:SWSW 23 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5071 ft.
Basin:PICEANCE BASIN
Planned Location:789FSL  216 FWLLat/Long: 39.418143 / -108.086269Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.418144 / -108.086270Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #01
Start Date: 9/20/2013
End Date: 9/26/2013
Reported: 11/22/2013
Days to report: 57
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

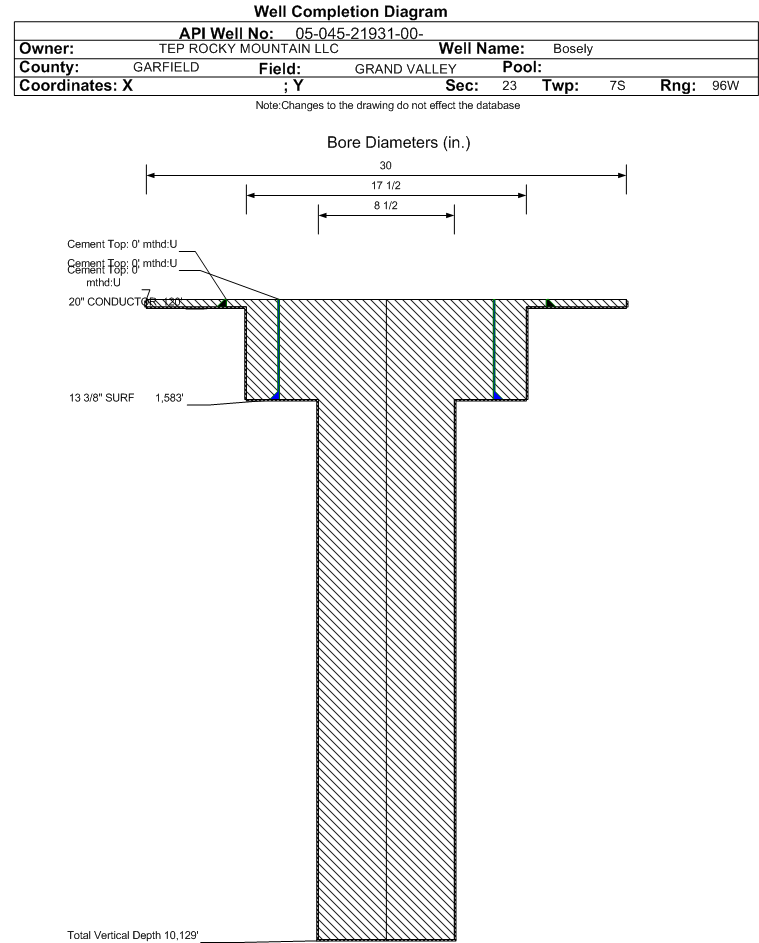

Wellbore #00             Wellbore Classification: GW             Status: AB - 3/31/2013             Measured TD: 10130 ft.    Vertical TD: 10129 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 3/31/2013
Wellbore Permit
Permit #: Expiration Date:3/14/2015
Proposed Top PZ Location:Sec:23 Twp: 7S 96W Footage: 60 FSL  292 FWL
Bottom Hole Location:Sec:26 Twp: 7S 96W Footage: 584 FSL  710 FWL
Proposed Depth/Form:10130 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DK-MC , Formation: DAKOTA-MANCOS , Order: 510-59 , Unit Acreage: 2606, Drill Unit: All 22,23,26,27
Formation And Spacing:Code: MWRY , Formation: MOWRY , Order: 510-59 , Unit Acreage: 2606, Drill Unit: All 22,23,26,27
Formation And Spacing:Code: NB-FR , Formation: NIOBRARA-FRONTIER , Order: 510-59 , Unit Acreage: 2606, Drill Unit: All 22,23,26,27
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.7# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1555 ft., Weight: 68# , Citings Type: PLANNED
Cement:Sacks: 850, Top: 0 ft., Bottom: 1555 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 8672 ft., Weight: 47# , Citings Type: PLANNED
Cement:Sacks: 1560, Top: 2035 ft., Bottom: 8672 ft.
Casing:String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 0 ft., Depth: 10130 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:5/6/2013
Spud Date:4/3/2013Spud Date Is:ACTUAL
Measured TD:10130 ft.Measured PB depth:8212 ft.
True Vertical TD:10129 ft.True Vertical PB depth:8212 ft.
Bottom Hole Location:Sec:23 Twp: 7S 96WFootage: 755 FSL  188 FWL
Log Types:Vertical pilot • Triple combo (Spectral gamma ray, DIL-SP, Neutron Density) • Spectroscopy log • Resistivity image log • Dipole sonic
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 94 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1583 ft., Weight: 68 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 1583 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 1583 ft., Depth: 10130 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: OPEN HOLE , Top: 8398 ft., Depth: 9255 ft., Bottom: 9255 ft., Sacks: 316, Method:
Additional Cement:String Type: OPEN HOLE , Top: 8212 ft., Depth: 8390 ft., Bottom: 8390 ft., Sacks: 593, Method:
FormationInterval TopLog BottomCoredDSTs
ROLLINS5139 ft.
COZZETTE5390 ft.
CORCORAN5634 ft.
NIOBRARA8611 ft.
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: PR - 11/7/2013             Measured TD: 14370 ft.    Vertical TD: 8884 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PR - 11/7/2013
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:3/14/2015
Proposed Top PZ Location:Sec:23 Twp: 7S 96W Footage: 164 FSL  277 FWL
Bottom Hole Location:Sec:26 Twp: 7S 96W Footage: 534 FSL  817 FWL
Proposed Depth/Form:14563 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-FR , Formation: NIOBRARA-FRONTIER , Order: 510-59 , Unit Acreage: 2606, Drill Unit: All, 22,23,26,27
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.7# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1555 ft., Weight: 68# , Citings Type: PLANNED
Cement:Sacks: 850, Top: 0 ft., Bottom: 1555 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 8672 ft., Weight: 47# , Citings Type: PLANNED
Cement:Sacks: 1560, Top: 2035 ft., Bottom: 8672 ft.
Casing:String Type: 1ST LINER, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 14558 ft., Weight: 17# , Citings Type: PLANNED
Cement:Sacks: 1000, Top: 8761 ft., Bottom: 14558 ft.
Wellbore Completed
Completion Date:7/1/2013
Spud Date:4/3/2013Spud Date Is:ACTUAL
Measured TD:14370 ft.Measured PB depth:14304 ft.
True Vertical TD:8884 ft.True Vertical PB depth:8888 ft.
Top PZ Location:Sec:23 Twp: 7S 96WFootage: 164 FSL  277 FWL
Bottom Hole Location:Sec:26 Twp: 7S 96WFootage: 534 FSL  817 FWL
Log Types:• LWD Gamma ray
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 94 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1583 ft., Weight: 68 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 1583 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 8673 ft., Weight: 47 , Citings Type: ACTUAL
Cement:Sacks: 1560, Top: 2000 ft., Bottom: 8673 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 14353 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1270, Top: 8438 ft., Bottom: 14353 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 587 ft., Depth: 3665 ft., Bottom: 3665 ft., Sacks: 765, Method: RETAINER
Additional Cement:String Type: 1ST , Top: 1315 ft., Depth: 1800 ft., Bottom: 1850 ft., Sacks: 150, Method: RETAINER
Additional Cement:String Type: 1ST , Top: 1315 ft., Depth: 1850 ft., Bottom: 1850 ft., Sacks: 150, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 1690 ft., Depth: 1850 ft., Bottom: 1850 ft., Sacks: 75, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 3625 ft., Depth: 3705 ft., Bottom: 3747 ft., Sacks: 730, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 1875 ft., Depth: 3981 ft., Bottom: 3981 ft., Sacks: 635, Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
ROLLINS5139 ft.
COZZETTE5390 ft.
CORCORAN5634 ft.
NIOBRARA8611 ft.

Formation NBRR                     Formation Classification:  GW                     Status:  PR - 11/30/2013                Interval Top: 9370 ft.    Interval Bottom: 14263 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/28/2013Choke Size:1.000 in.
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:9/20/2013Treatment End Date:9/26/2013
Treatment Summary:70832 Gals 7 1/2% HCL; 267858#40/70, 1856200# 100 Mesh Sand; 202533 Bbls Slickwater; (Summary) *All flowback water entries are total estimates based on comingled volumes.
Total fluid used in treatment (bbls):204219Max pressure during treatment (psi):10202
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):1686Min frac gradient (psi/ft):1.02
Recycled water used in treatment (bbls):202533Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):4464058Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:8744 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2013Test Method:flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 972
CALC_MCF_GAS 5988
CASING_PRESS 3156
MCF_GAS 5988
TUBING_PRESS 4496
Perforation Data:
Interval Top:9370 ft.# Of Holes:624
Interval Bottom:14263 ft.Hole Size:3.05 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)107
Total Gas Produced (MCF)83459
GOR779990
GOR DeterminationMCFE
Average BOE per Day39.707
Average MCFE per Day230.340

 Federal Financial Assurance  i

 Tribal Well  i No
