Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2024 Measured TD: 10117 ft. Vertical TD: 10034 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/25/2014 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 93W | Footage: 346 FSL 1766 FEL | | Bottom Hole Location: | Sec:32 Twp: 6S 93W | Footage: 346 FSL 1766 FEL | | Proposed Depth/Form: | 10133 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1108 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 292, Top: 0 ft., Bottom: 1108 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10133 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 985, Top: , Bottom: 10133 ft. |
| | |

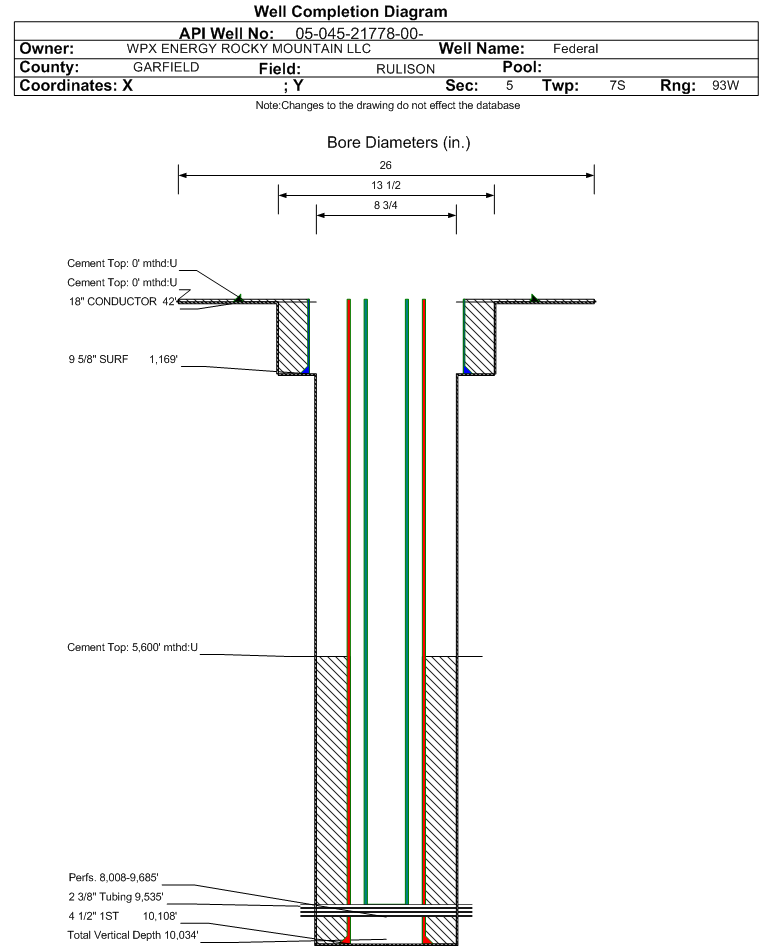

| Wellbore Completed | | Completion Date: | 4/20/2014 | | Spud Date: | 4/11/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10117 ft. | Measured PB depth: | 10076 ft. | | True Vertical TD: | 10034 ft. | True Vertical PB depth: | 9994 ft. | | Top PZ Location: | Sec:32 Twp: 6S 93W | Footage: 373 FSL 1746 FEL | | Bottom Hole Location: | Sec:32 Twp: 6S 93W | Footage: 359 FSL 1779 FEL | | Log Types: | RPM CBL MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1169 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1169 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10108 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1050, Top: 5600 ft., Bottom: 10108 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3694 ft. | | | | | MESAVERDE | 6250 ft. | | | | | CAMEO | 9125 ft. | | | | | ROLLINS | 9955 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 7/1/2024 Interval Top: 8008 ft. Interval Bottom: 9685 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/6/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/3/2014 | Treatment End Date: | 6/7/2014 | | Treatment Summary: | 6 STAGES; 1537 Gals 7 ½% HCL; 723700 # 40/70 Sand: 20143 Bbls Slickwater (Summary)
| | Total fluid used in treatment (bbls): | 20180 | Max pressure during treatment (psi): | 5108 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 36 | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 20143 | Total flowback volume recovered (bbls): | 10302 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 723700 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9535 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/24/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1097 | | CALC_MCF_GAS | 480 | | CASING_PRESS | 2071 | | MCF_GAS | 480 | | TUBING_PRESS | 1889 |
| | Perforation Data: | | Interval Top: | 8008 ft. | # Of Holes: | 138 | | Interval Bottom: | 9685 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 82 |
| Total Gas Produced (MCF) | 14574 |
| GOR | 177731 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.113 |
| Average MCFE per Day | 41.241 |
| Federal Financial Assurance | i | Y |
|
|
