Wellbore #00 Wellbore Classification: GW Status: PR - 3/30/2011 Measured TD: 7323 ft. Vertical TD: 7311 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/30/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/16/2012 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 91W | Footage: 2008 FSL 1990 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 2008 FSL 1990 FEL | | Proposed Depth/Form: | 7309 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Gibson Gulch | Unit Number: | COC-052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-65 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42# , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 760 ft., Weight: 36# , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 760 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 7309 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 510, Top: , Bottom: 7390 ft. |
| | |

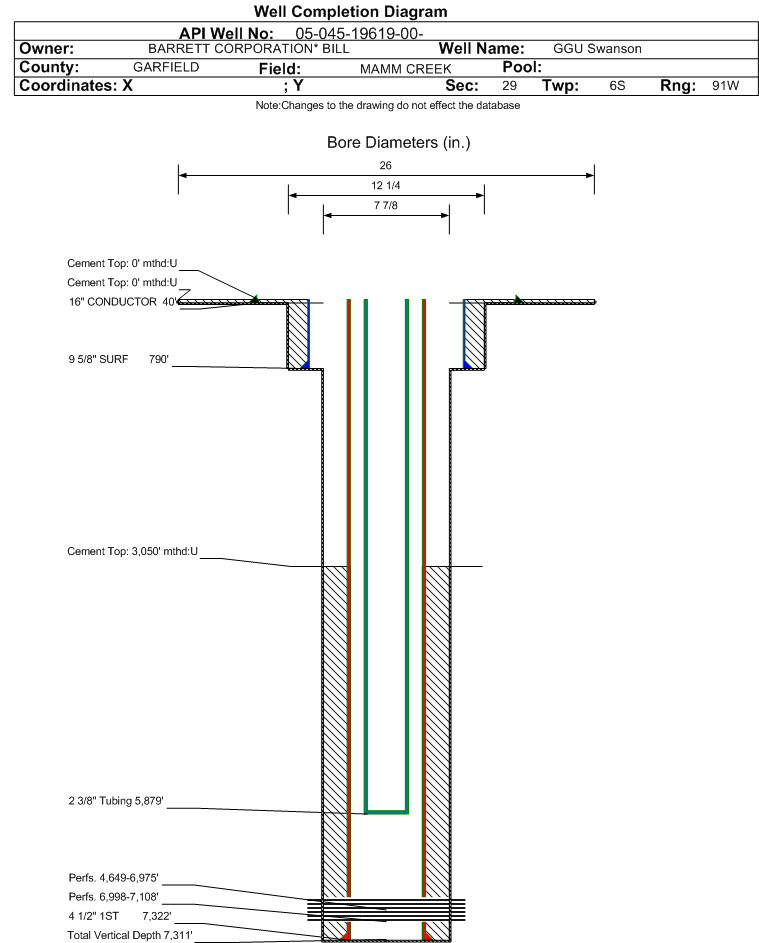

| Wellbore Completed | | Completion Date: | 11/9/2010 | | Spud Date: | 9/6/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7323 ft. | Measured PB depth: | 7276 ft. | | True Vertical TD: | 7311 ft. | True Vertical PB depth: | 7264 ft. | | Top PZ Location: | Sec:29 Twp: 6S 91W | Footage: 2025 FSL 1990 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 2020 FSL 1993 FEL | | Log Types: | | | Log Types: | Previously submitted: CBL, Mud, Temp., Caliper, Neutron/Density, Induction, Triple combo | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 790 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 807 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7322 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 3050 ft., Bottom: 7323 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3426 ft. | | | | | ROLLINS | 6993 ft. | | | |
Formation RLNS Formation Classification: GW Status: PR - 3/8/2011 Interval Top: 6998 ft. Interval Bottom: 7108 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 2/26/2011 | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/11/2011 | | Treatment Summary: | Treated with Williams Fork, see Williams Fork treatment |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5879 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/8/2011 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1205 | | CALC_MCF_GAS | 38 | | CASING_PRESS | 1390 | | MCF_GAS | 38 | | TUBING_PRESS | 900 |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 12 | | Interval Bottom: | 7108 ft. | Hole Size: | 0.3 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 2/11/2011 Interval Top: 4649 ft. Interval Bottom: 6975 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/26/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/11/2011 | | Treatment Summary: | 144,200 Lbs CRC Sand, 1,365,395 Lbs White Sand, 70,901 bbls Slick water |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5879 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/11/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 90 | | BBLS_OIL | 16 | | BTU_GAS | 1205 | | CALC_BBLS_H2O | 90 | | CALC_BBLS_OIL | 16 | | CALC_GOR | 45313 | | CALC_MCF_GAS | 725 | | CASING_PRESS | 1390 | | GRAVITY_OIL | 60 | | MCF_GAS | 725 | | TUBING_PRESS | 900 |
| | Perforation Data: | | Interval Top: | 4649 ft. | # Of Holes: | 208 | | Interval Bottom: | 6975 ft. | Hole Size: | 0.3 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 175 |
| Total Gas Produced (MCF) | 14822 |
| GOR | 84697 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.484 |
| Average MCFE per Day | 43.403 |
| Federal Financial Assurance | i | |
|
|
