COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-19087		Well Classification: GW Status: SI - 3/1/2023
Well Name/No:Story Gulch Unit #8505C-25 F25496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC61136
Facility Status:SIStatus Date3/1/2023
FacilityID:415543LocationID:415182
County:GARFIELD #045Location:SENW 25 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8298 ft.
Basin:PICEANCE BASIN
Planned Location:2321FNL  1859 FWLLat/Long: 39.674194 / -108.119933Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.674195 / -108.119932Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 3/1/2023             Measured TD: 12265 ft.    Vertical TD: 12177 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 3/1/2023
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/2/2012
Proposed Top PZ Location:Sec:25 Twp: 4S 96W Footage: 2203 FNL  696 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96W Footage: 2214 FNL  682 FWL
Proposed Depth/Form:13656 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:Stroy Gulch Unt Unit Number:COC69333X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 120 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 176, Top: 0 ft., Bottom: 120 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 3000 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 2069, Top: 0 ft., Bottom: 3000 ft.
Casing:String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 13656 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 857, Top: 7996 ft., Bottom: 13656 ft.

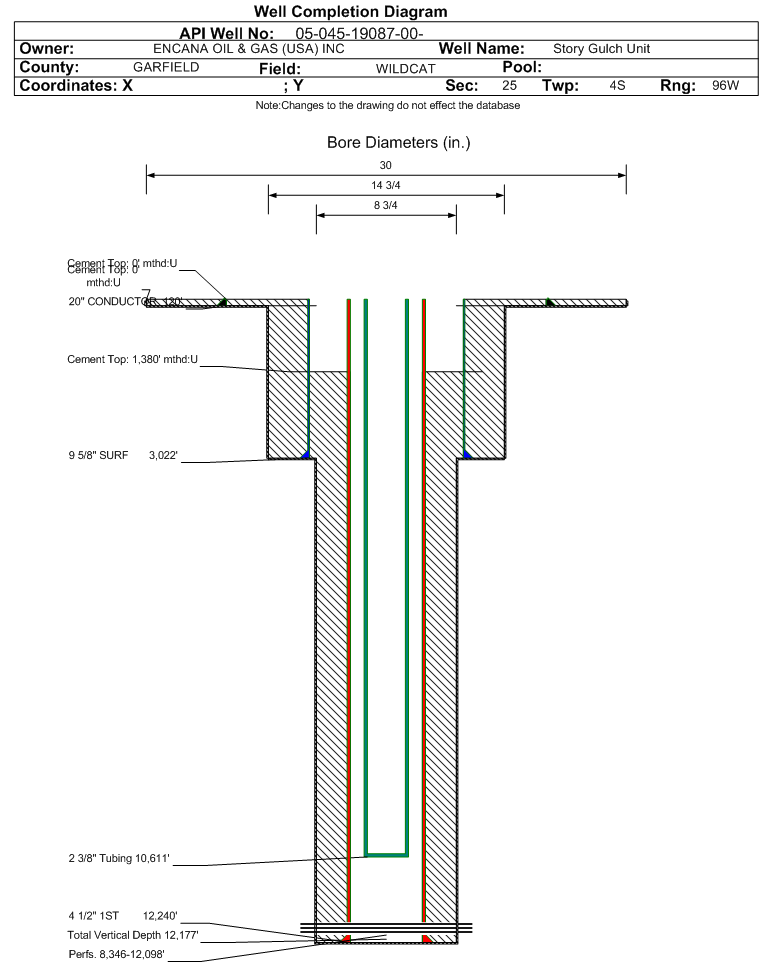

Wellbore Completed
Completion Date:6/11/2010
Spud Date:4/1/2010Spud Date Is:ACTUAL
Measured TD:12265 ft.Measured PB depth:12202 ft.
True Vertical TD:12177 ft.True Vertical PB depth:12114 ft.
Top PZ Location:Sec:25 Twp: 4S 96WFootage: 2203 FNL  696 FWL
Bottom Hole Location:Sec:25 Twp: 4S 96WFootage: 2214 FNL  682 FWL
Log Types:RST and IBC-Isolation Scanner Cement Bond Log
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 120 ft., Weight: 53# , Citings Type: ACTUAL
Cement:Sacks: 207, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3022 ft., Weight: 36# , Citings Type: ACTUAL
Cement:Sacks: 1109, Top: 0 ft., Bottom: 3022 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12240 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1774, Top: 1380 ft., Bottom: 12240 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK8263 ft.12222 ft.
ROLLINS12223 ft.12265 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 3/1/2023                  Interval Top: 8346 ft.    Interval Bottom: 12098 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/9/2010Choke Size:30.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/1/2010
Treatment Summary:Stages 1-13 treated with a total of 120320 bbl of slickwater, 662787lbs. 20-40 Sand, 138131 lbs. Sand.
Tubing Size:2.375 in.Tubing Setting Depth:10611 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/11/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1628
BTU_GAS 1170
CALC_BBLS_H2O 1628
CALC_MCF_GAS 2566
CASING_PRESS 2867
MCF_GAS 2566
TUBING_PRESS 2102
Perforation Data:
Interval Top:8346 ft.# Of Holes:390
Interval Bottom:12098 ft.Hole Size:0.42 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY10/04/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
02/28/2023
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
