Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2022 Measured TD: 8615 ft. Vertical TD: 8521 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20084390 | Expiration Date: | 9/2/2009 | | Proposed Top PZ Location: | Sec:16 Twp: 6S 92W | Footage: 1172 FNL 662 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 92W | Footage: 1172 FNL 662 FWL | | Proposed Depth/Form: | 8625 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-34 , Unit Acreage: 160, Drill Unit: NW/4 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-34 , Unit Acreage: 160, Drill Unit: NW/4 |
| | |

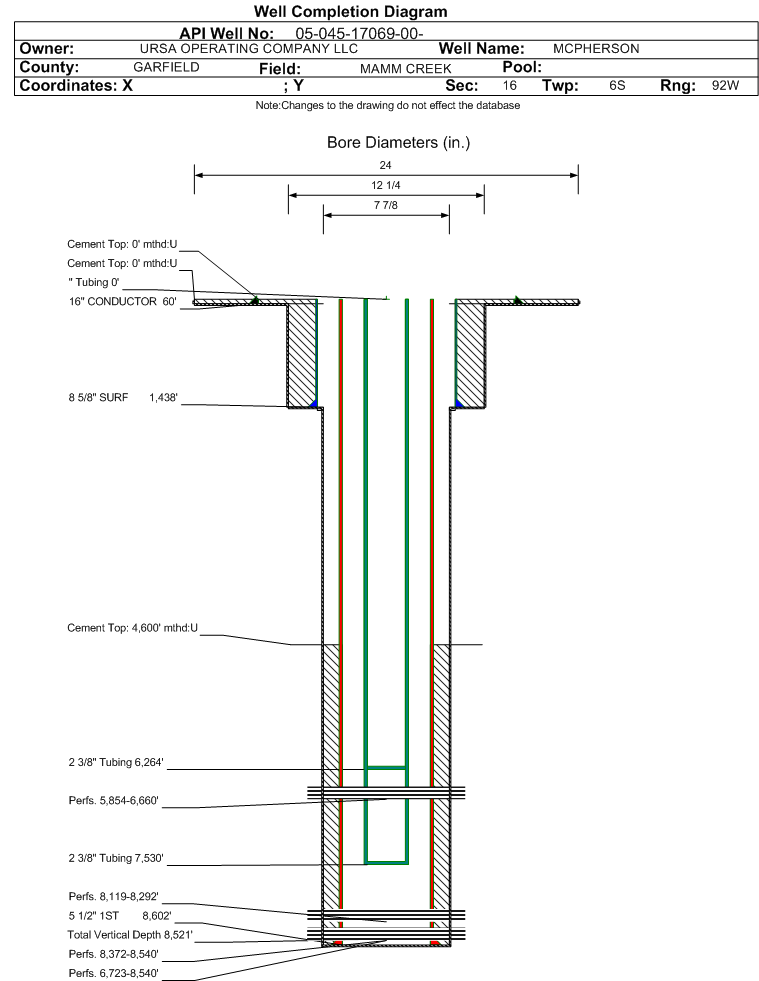

| Wellbore Completed | | Completion Date: | 9/24/2008 | | Spud Date: | 9/12/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8615 ft. | Measured PB depth: | 8556 ft. | | True Vertical TD: | 8521 ft. | True Vertical PB depth: | 8464 ft. | | Top PZ Location: | Sec:16 Twp: 6S 92W | Footage: 1172 FNL 662 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 92W | Footage: 1172 FNL 662 FWL | | Log Types: | CBL, T COMBO | | Log Types: | IND/DEN/NEU, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1438 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 695, Top: 0 ft., Bottom: 1482 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8602 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 4600 ft., Bottom: 8615 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4010 ft. | | N | N | | CAMEO | 6570 ft. | | N | N | | ROLLINS | 7552 ft. | | N | N | | COZZETTE | 8114 ft. | | N | N | | CORCORAN | 8353 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 4/1/2022 Interval Top: 8372 ft. Interval Bottom: 8540 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 11/18/2008 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/9/2008 | | Treatment Summary: | CORC FRAC'D W/ 9901 BBLS 2% KCL & 297,700# 30/50 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 123 | | BBLS_OIL | 0 | | BTU_GAS | 15 | | CALC_BBLS_H2O | 123 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 182 | | CASING_PRESS | 1525 | | MCF_GAS | 182 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 8372 ft. | # Of Holes: | 33 | | Interval Bottom: | 8540 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 4/1/2022 Interval Top: 8119 ft. Interval Bottom: 8292 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 11/18/2008 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/11/2008 | | Treatment Summary: | COZZ FRAC'D W/ 6296 BBLS 2% KCL & 178,400# 30/50 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 123 | | BBLS_OIL | 0 | | BTU_GAS | 15 | | CALC_BBLS_H2O | 123 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 182 | | CASING_PRESS | 1525 | | MCF_GAS | 182 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 8119 ft. | # Of Holes: | 30 | | Interval Bottom: | 8292 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: OW Status: CM - 12/9/2008 Interval Top: 6723 ft. Interval Bottom: 8540 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 11/18/2008 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/9/2008 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7530 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/9/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 451 | | BBLS_OIL | 0 | | BTU_GAS | 1039 | | CALC_BBLS_H2O | 451 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1353 | | CASING_PRESS | 2550 | | MCF_GAS | 1353 | | TUBING_PRESS | 1750 |
| | Perforation Data: | | Interval Top: | 6723 ft. | # Of Holes: | 180 | | Interval Bottom: | 8540 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 4/1/2022 Interval Top: 5854 ft. Interval Bottom: 6660 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/18/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/2/2013 | Treatment End Date: | 5/5/2013 | | Treatment Summary: | WFCM-Frac'd with 88,914 bbls 2% KCL Slickwater, 48 bbls 75% HCL Acid and 1,000,588 lbs 30/50 sand
| | Total fluid used in treatment (bbls): | 88914 | Max pressure during treatment (psi): | 7811 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 4 | | Total acid used in treatment (bbls): | 48 | Min frac gradient (psi/ft): | 0.89 | | Recycled water used in treatment (bbls): | 87818 | Total flowback volume recovered (bbls): | 35127 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1000588 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 11/11/2008 | | Treatment Summary: | WFCM FRAC'D W/ 29,392 BBLS 2% KCL & 874,600# 30/50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6264 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/22/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 272 | | BBLS_OIL | 14 | | BTU_GAS | 1180 | | CALC_BBLS_H2O | 272 | | CALC_BBLS_OIL | 14 | | CALC_GOR | 47571 | | CALC_MCF_GAS | 666 | | CASING_PRESS | 750 | | GRAVITY_OIL | 52 | | MCF_GAS | 666 | | TUBING_PRESS | 200 |
| | Perforation Data: | | Interval Top: | 5854 ft. | # Of Holes: | 88 | | Interval Bottom: | 6660 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
02/2025 - 01/2026 |
| Total Oil Produced (Barrels) | 4 |
| Total Gas Produced (MCF) | 463 |
| GOR | 115750 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.230 |
| Average MCFE per Day | 1.331 |
