COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-16093		Well Classification: GW Status: PR - 12/27/2008
Well Name/No:MILLER #34A-6-791
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/27/2008
FacilityID:296667LocationID:334708
County:GARFIELD #045Location:SESW 6 7S91W 6
Field:MAMM CREEK - #52500Elevation:6285 ft.
Basin:PICEANCE BASIN
Planned Location:243FSL  1860 FWLLat/Long: 39.469682 / -107.599280Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.469682 / -107.599279Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/27/2008             Measured TD: 7082 ft.    Vertical TD: 6654 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/27/2008
Wellbore PermitDIRECTIONAL
Permit #:20082968 Expiration Date:6/19/2009
Proposed Top PZ Location:Sec:6 Twp: 7S 91W Footage: 220 FSL  2016 FEL
Bottom Hole Location:Sec:6 Twp: 7S 91W Footage: 220 FSL  2016 FEL
Proposed Depth/Form:7004 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-6 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/4/2008
Spud Date:7/28/2008Spud Date Is:ACTUAL
Measured TD:7082 ft.Measured PB depth:7030 ft.
True Vertical TD:6654 ft.True Vertical PB depth:6602 ft.
Top PZ Location:Sec:6 Twp: 7S 91WFootage: 220 FSL  2016 FEL
Bottom Hole Location:Sec:6 Twp: 7S 91WFootage: 220 FSL  2016 FEL
Log Types:ARRAY IND./CPD/CDNT/TRIPLE COMBO; CBL, MUD, HOLE VOLUME

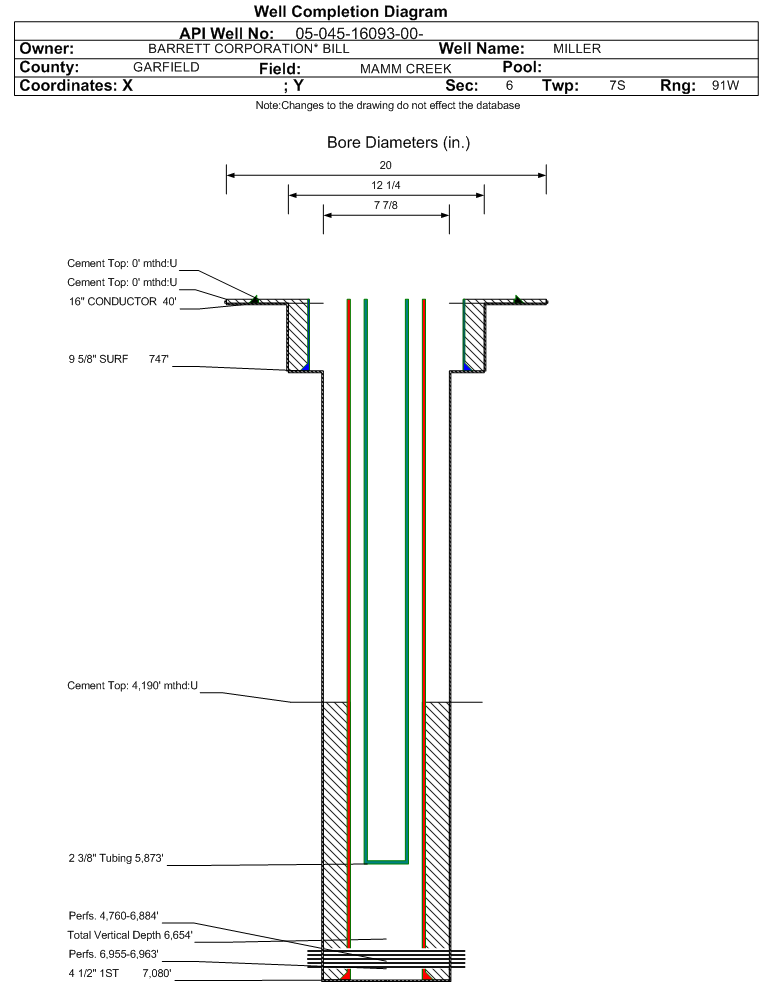

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 747 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 747 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7080 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 553, Top: 4190 ft., Bottom: 7080 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3011 ft.NN
ROLLINS6908 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 12/27/2008                Interval Top: 6955 ft.    Interval Bottom: 6963 ft.

 Completed Information for Formation ROLLINS
1st Production Date:12/14/2008Choke Size:0.344 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/10/2008
Treatment Summary:3,354 BBLS SLICKWATER; 74,030# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5873 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/27/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 3
CALC_BBLS_OIL 0
CALC_GOR 731187
CALC_MCF_GAS 88
CASING_PRESS 1325
MCF_GAS 88
TUBING_PRESS 1100
Perforation Data:
Interval Top:6955 ft.# Of Holes:6
Interval Bottom:6963 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/27/2008                Interval Top: 4760 ft.    Interval Bottom: 6884 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/14/2008Choke Size:0.344 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/10/2008
Treatment Summary:63,729 BBLS SLICKWATER; 1,480,600# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5873 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/27/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 49
BBLS_OIL 2
BTU_GAS 1170
CALC_BBLS_H2O 49
CALC_BBLS_OIL 2
CALC_GOR 718581
CALC_MCF_GAS 1667
CASING_PRESS 1325
MCF_GAS 1667
TUBING_PRESS 1100
Perforation Data:
Interval Top:4760 ft.# Of Holes:170
Interval Bottom:6884 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)110
Total Gas Produced (MCF)15397
GOR139972
GOR DeterminationMCFE
Average BOE per Day7.580
Average MCFE per Day43.959

 Federal Financial Assurance  i

 Tribal Well  i No
