Wellbore #00 Wellbore Classification: GW Status: PR - 9/30/2008 Measured TD: 7820 ft. Vertical TD: 7644 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/30/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076732 | Expiration Date: | 1/29/2009 | | Proposed Top PZ Location: | Sec:33 Twp: 6S 94W | Footage: 225 FNL 742 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 94W | Footage: 225 FNL 742 FEL | | Proposed Depth/Form: | 7776 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: E2 |
| | |

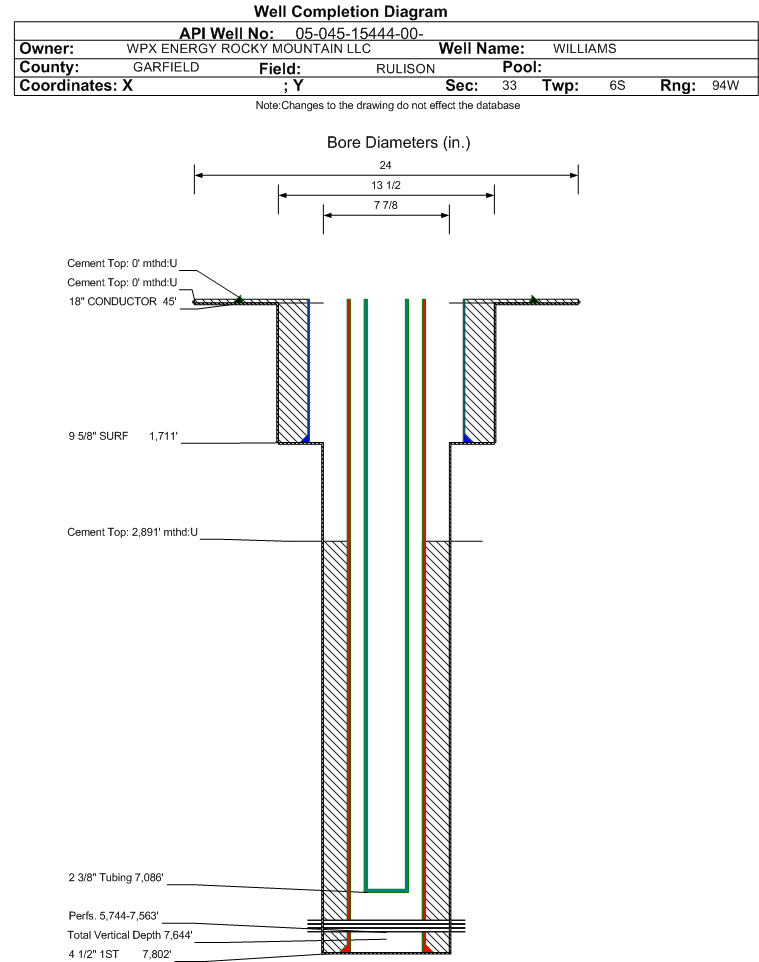

| Wellbore Completed | | Completion Date: | 3/23/2008 | | Spud Date: | 6/9/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7820 ft. | Measured PB depth: | 7770 ft. | | True Vertical TD: | 7644 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:33 Twp: 6S 94W | Footage: 225 FNL 742 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 94W | Footage: 225 FNL 742 FEL | | Log Types: | CBL, HIGH RES.IND.,SPECTRAL DENS.,DUAL SPACED NEUTRON; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1711 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 488, Top: 0 ft., Bottom: 1711 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7802 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1030, Top: 2891 ft., Bottom: 7802 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1526 ft. | | N | N | | MESAVERDE | 4025 ft. | | N | N | | CAMEO | 6770 ft. | | N | N | | ROLLINS | 7650 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/30/2008 Interval Top: 5744 ft. Interval Bottom: 7563 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/22/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/18/2008 | | Treatment Summary: | 3548 GALS 7.5% HCL; 736,000# 20/40 SAND; 22,271 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7086 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/30/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 988 | | CASING_PRESS | 1220 | | MCF_GAS | 988 | | TUBING_PRESS | 1041 |
| | Perforation Data: | | Interval Top: | 5744 ft. | # Of Holes: | 132 | | Interval Bottom: | 7563 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 29 |
| Total Gas Produced (MCF) | 15277 |
| GOR | 526793 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.301 |
| Average MCFE per Day | 42.357 |
| Federal Financial Assurance | i | Y |
|
|
