Wellbore #00 Wellbore Classification: GW Status: PR - 2/11/2009 Measured TD: 9930 ft. Vertical TD: 9356 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/11/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076457 | Expiration Date: | 1/7/2009 | | Proposed Top PZ Location: | Sec:29 Twp: 5S 95W | Footage: 1830 FNL 1216 FWL | | Bottom Hole Location: | Sec:29 Twp: 5S 95W | Footage: 1830 FNL 1216 FWL | | Proposed Depth/Form: | 11536 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

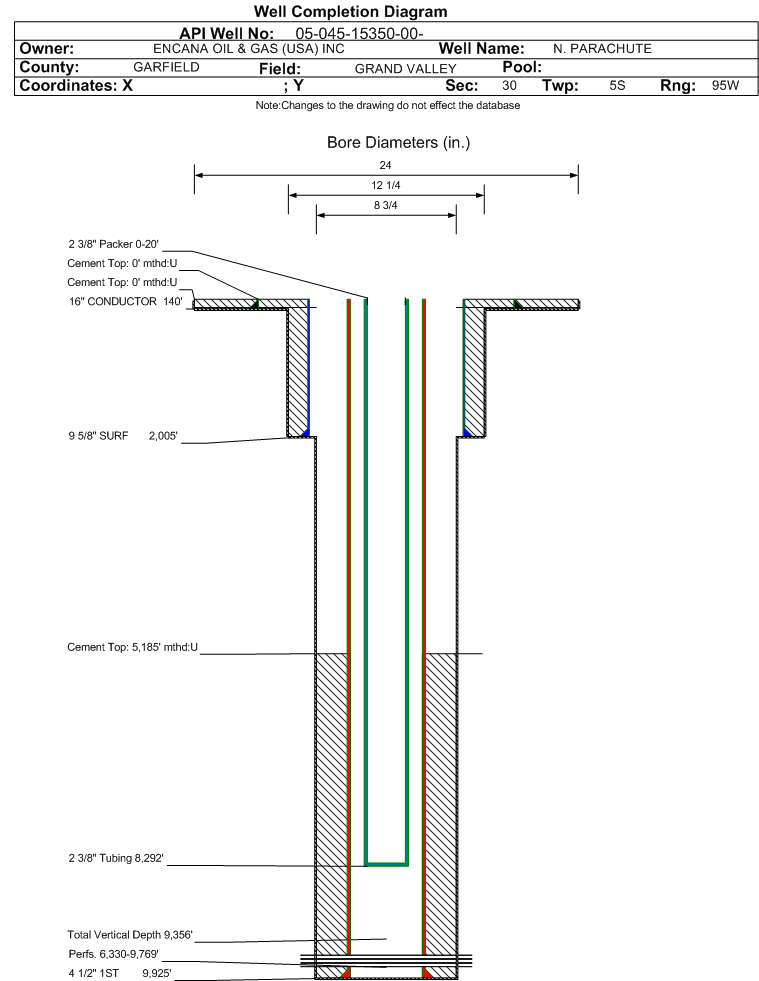

| Wellbore Completed | | Completion Date: | 8/30/2008 | | Spud Date: | 8/5/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9930 ft. | Measured PB depth: | 9893 ft. | | True Vertical TD: | 9356 ft. | True Vertical PB depth: | 9319 ft. | | Top PZ Location: | Sec:29 Twp: 5S 95W | Footage: 1830 FNL 1216 FWL | | Bottom Hole Location: | Sec:29 Twp: 5S 95W | Footage: 1830 FNL 1216 FWL | | Log Types: | MUD AND CBL. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 140 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2005 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 494, Top: 0 ft., Bottom: 2015 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9925 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1505, Top: 5185 ft., Bottom: 9930 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6210 ft. | 9837 ft. | N | N | | ROLLINS | 9837 ft. | 9930 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/11/2009 Interval Top: 6330 ft. Interval Bottom: 9769 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/9/2009 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/19/2008 | | Treatment Summary: | STAGES 1-10 TREATED WITH A TOTAL OF: 48,342 BBLS OF SLICKWATER, 385,060 LBS 20-40 SAND, 145,000 LBS 30-50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8292 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/11/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_GOR | 0 | | CASING_PRESS | 2450 | | MCF_GAS | 600 | | TUBING_PRESS | 1450 |
| | Perforation Data: | | Interval Top: | 6330 ft. | # Of Holes: | 300 | | Interval Bottom: | 9769 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 35 |
| Total Gas Produced (MCF) | 6252 |
| GOR | 178628 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.053 |
| Average MCFE per Day | 17.691 |
| Federal Financial Assurance | i | |
|
|
