Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2024 Measured TD: 11576 ft. Vertical TD: 11436 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20075193 | Expiration Date: | 11/14/2008 | | Proposed Top PZ Location: | Sec:27 Twp: 4S 96W | Footage: 1662 FSL 2359 FWL | | Bottom Hole Location: | Sec:27 Twp: 4S 96W | Footage: 1662 FSL 2359 FWL | | Proposed Depth/Form: | 12654 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | STORY GULCH UNI | Unit Number: | COC-69333X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

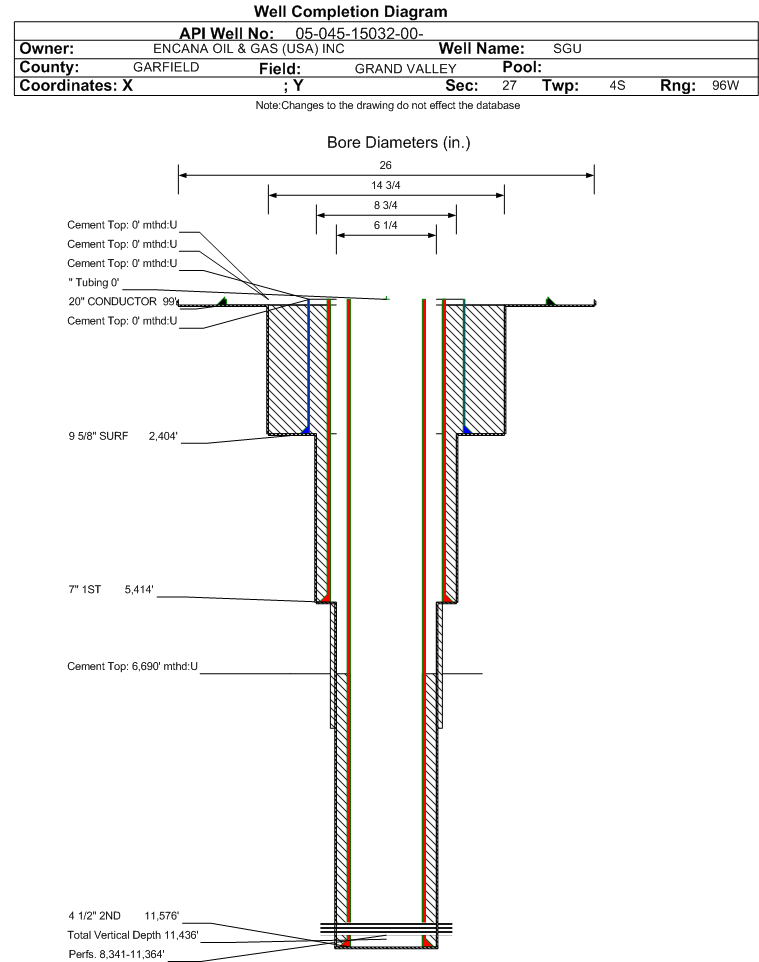

| Wellbore Completed | | Completion Date: | 8/5/2008 | | Spud Date: | 6/27/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 11576 ft. | Measured PB depth: | 11500 ft. | | True Vertical TD: | 11436 ft. | True Vertical PB depth: | 11360 ft. | | Top PZ Location: | Sec:27 Twp: 4S 96W | Footage: 1662 FSL 2359 FWL | | Bottom Hole Location: | Sec:27 Twp: 4S 96W | Footage: 1662 FSL 2359 FWL | | Log Types: | CBL (W/G.R., VDL) -- 2; MUD; G.R. - CCL -- TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 99 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 140, Top: 0 ft., Bottom: 99 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2404 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1368, Top: 0 ft., Bottom: 2404 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5414 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 7667, Top: 0 ft., Bottom: 7667 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 11576 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 347, Top: 6690 ft., Bottom: 11576 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 5883 ft. | | N | N | | OHIO CREEK | 7145 ft. | | N | N | | WILLIAMS FORK | 7578 ft. | | N | N | | CAMEO | 10926 ft. | | N | N | | ROLLINS | 11576 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2024 Interval Top: 8341 ft. Interval Bottom: 11364 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/18/2013 | Treatment End Date: | N/A | | Treatment Summary: | CIBP SET @ 8333' W/ 2 SX SAND, WHICH COVERS THE WILLIAMS FORK PERFS @ 8341'- 11364' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 10/1/2008 | | Treatment Summary: | FRACTURED WITH: 71793 BBLS SLICK WATER, 263165 LBS 100 MESH, 193639 LBS 40/80 HYDROPROP, 1104680 LBS 20/40 JORDAN UNIMIN |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1329 | | BBLS_OIL | 0 | | BTU_GAS | 1090 | | CALC_BBLS_H2O | 1329 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 700 | | CASING_PRESS | 3850 | | MCF_GAS | 700 | | TUBING_PRESS | 1775 |
| | Perforation Data: | | Interval Top: | 8341 ft. | # Of Holes: | 267 | | Interval Bottom: | 11364 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 75 |
| Total Gas Produced (MCF) | 38865 |
| GOR | 518200 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.541 |
| Average MCFE per Day | 107.540 |
| Federal Financial Assurance | i | Y |
|
|
