Wellbore #00 Wellbore Classification: GW Status: SI - 5/1/2025 Measured TD: 6605 ft. Vertical TD: 6553 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 5/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064406 | Expiration Date: | 10/12/2007 | | Proposed Top PZ Location: | Sec:34 Twp: 6S 92W | Footage: 1055 FSL 648 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 92W | Footage: 1055 FSL 648 FEL | | Proposed Depth/Form: | 6621 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 80, Drill Unit: S2SE |
| | |

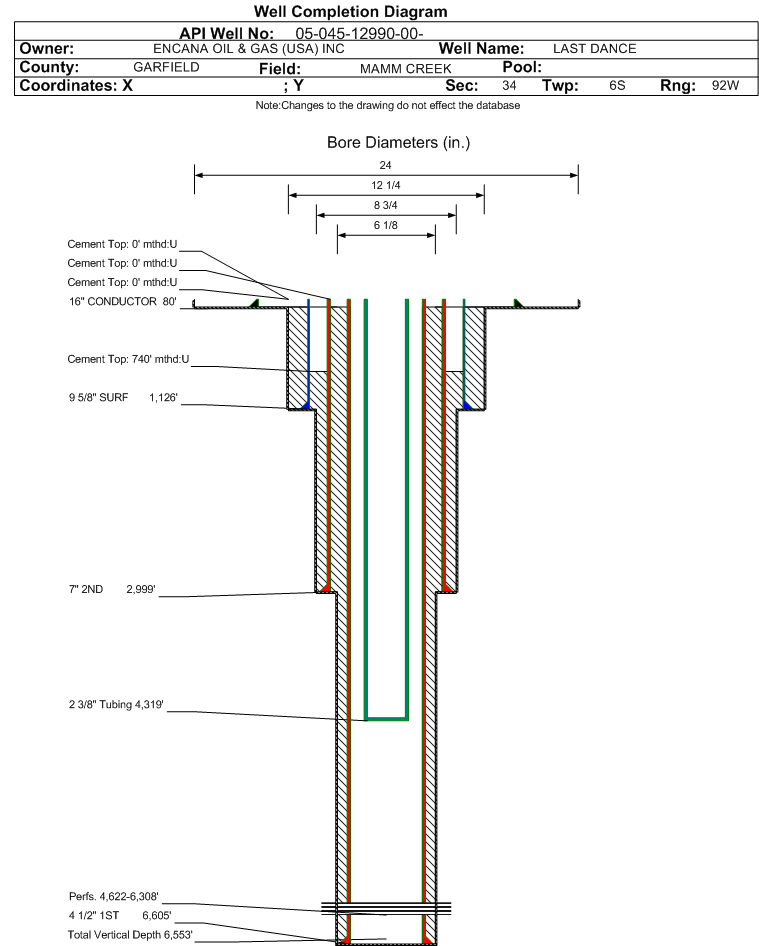

| Wellbore Completed | | Completion Date: | 7/30/2007 | | Spud Date: | 7/15/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6605 ft. | Measured PB depth: | | | True Vertical TD: | 6553 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 92W | Footage: 1055 FSL 648 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 92W | Footage: 1055 FSL 648 FEL | | Log Types: | CBL, CL/GR/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 1127 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 6605 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 6605 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 2999 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 740 ft., Bottom: 3000 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3328 ft. | N | N | | WILLIAMS FORK | 3329 ft. | 6428 ft. | N | N | | ROLLINS | 6429 ft. | 6605 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 5/1/2025 Interval Top: 4622 ft. Interval Bottom: 6308 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/30/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/21/2007 | | Treatment Summary: | STAGES 1-7 TREATED WITH A TOTAL OF 45,724 BBLS OF SLICKWATER, 1,075,718 LBS 20-40 WHITE SAND, AND 15,500 LBS NON API SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4319 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/12/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 550 | | BBLS_OIL | 2 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 550 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 311000 | | CALC_MCF_GAS | 622 | | CASING_PRESS | 2150 | | MCF_GAS | 622 | | TUBING_PRESS | 1325 |
| | Perforation Data: | | Interval Top: | 4622 ft. | # Of Holes: | 150 | | Interval Bottom: | 6308 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 14 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.006 |
| Average MCFE per Day | 0.039 |
| Federal Financial Assurance | i | |
|
|
