Wellbore #00 Wellbore Classification: GW Status: PR - 9/15/2006 Measured TD: 6930 ft. Vertical TD: 6766 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/15/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052989 | Expiration Date: | 9/26/2006 | | Proposed Top PZ Location: | Sec:33 Twp: 6S 92W | Footage: 205 FSL 1979 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 92W | Footage: 205 FSL 1979 FWL | | Proposed Depth/Form: | 6788 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 160, Drill Unit: SW/4 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 160, Drill Unit: SW/4 |
| | |

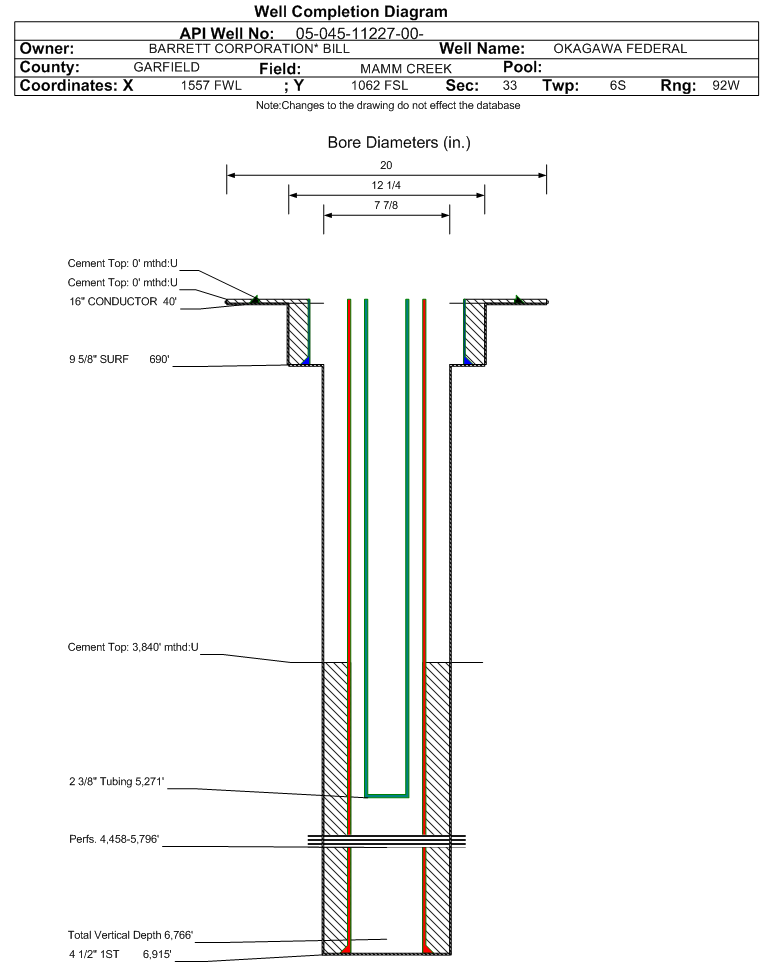

| Wellbore Completed | | Completion Date: | 7/29/2006 | | Spud Date: | 6/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6930 ft. | Measured PB depth: | 6872 ft. | | True Vertical TD: | 6766 ft. | True Vertical PB depth: | 6708 ft. | | Top PZ Location: | Sec:33 Twp: 6S 92W | Footage: 205 FSL 1979 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 92W | Footage: 205 FSL 1979 FWL | | Log Types: | HALLIBURTON HRI/SD/DSN/;SCHLUMBERGER CBL/GR/CCL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 690 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 690 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6915 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 3840 ft., Bottom: 6930 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 2658 ft. | | N | N | | ROLLINS | 6588 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/15/2006 Interval Top: 4458 ft. Interval Bottom: 5796 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/3/2006 | Choke Size: | 0.640 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/31/2006 | | Treatment Summary: | 48,173 BBLS SLICKWATER; 1,069,600 LBS OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5271 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/15/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1 | | CALC_MCF_GAS | 886 | | MCF_GAS | 886 |
| | Perforation Data: | | Interval Top: | 4458 ft. | # Of Holes: | 144 | | Interval Bottom: | 5796 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 97 |
| Total Gas Produced (MCF) | 20135 |
| GOR | 207577 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.788 |
| Average MCFE per Day | 56.782 |
| Federal Financial Assurance | i | Y |
|
|
