COGIS - WELL SCOUT CARD

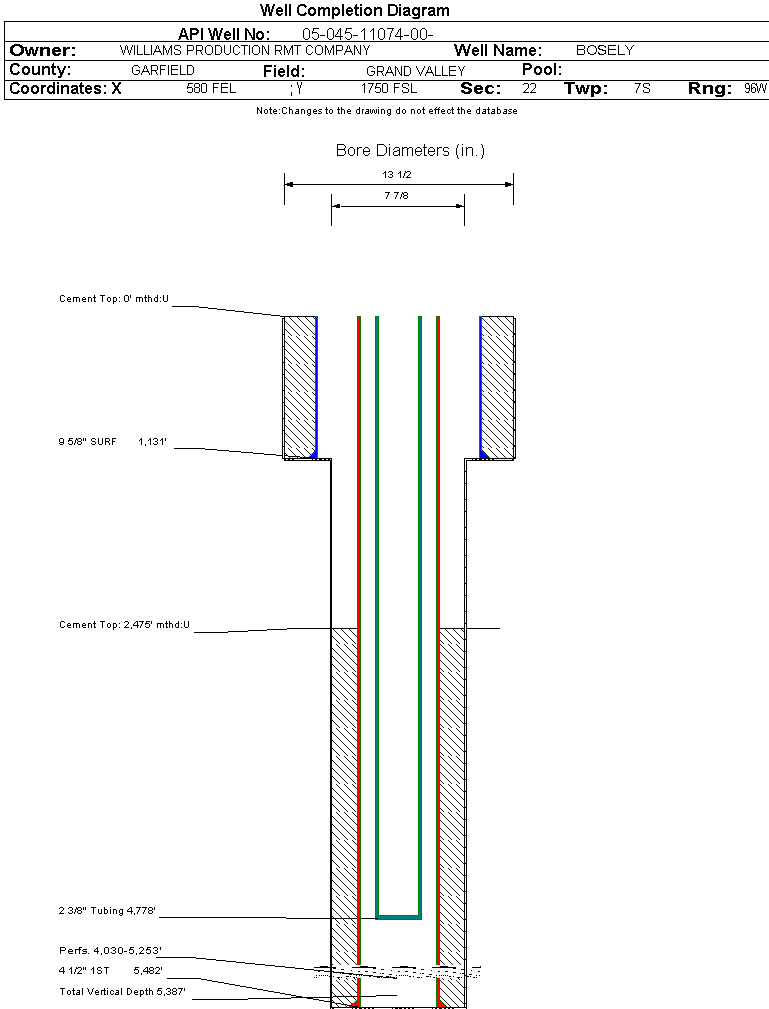

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11074		Well Classification: GW Status: PR - 7/9/2006
Well Name/No:BOSELY #SG 543-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/9/2006
FacilityID:279733LocationID:334580
County:GARFIELD #045Location:NESE 22 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5123 ft.
Basin:PICEANCE BASIN
Planned Location:1750FSL  580 FELLat/Long: 39.420639 / -108.089035Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.420669 / -108.089062Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/9/2006             Measured TD: 5486 ft.    Vertical TD: 5387 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/9/2006
Wellbore PermitDIRECTIONAL
Permit #:20052730 Expiration Date:9/1/2006
Proposed Top PZ Location:Sec:22 Twp: 7S 96W Footage: 2497 FSL  830 FEL
Bottom Hole Location:Sec:22 Twp: 7S 96W Footage: 2497 FSL  830 FEL
Proposed Depth/Form:5478 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:5/15/2006
Spud Date:5/8/2006Spud Date Is:ACTUAL
Measured TD:5486 ft.Measured PB depth:5455 ft.
True Vertical TD:5387 ft.True Vertical PB depth:
Top PZ Location:Sec:22 Twp: 7S 96WFootage: 2497 FSL  830 FEL
Bottom Hole Location:Sec:22 Twp: 7S 96WFootage: 2497 FSL  830 FEL
Log Types:CBL;HIGH RESOLUTION INDUCTION,SPECTRAL DENSITY,DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1131 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1131 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5482 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 2475 ft., Bottom: 5481 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G765 ft.NN
FORT UNION1165 ft.NN
MESAVERDE2513 ft.NN
CAMEO4830 ft.NN
ROLLINS5322 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/9/2006                  Interval Top: 4030 ft.    Interval Bottom: 5253 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/1/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/31/2006
Treatment Summary:3001 GAL 7 1/2% HCL; 785500 # 30/50 SAND; 17318 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:4778 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/9/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1267
CASING_PRESS 1425
MCF_GAS 1267
TUBING_PRESS 1353
Perforation Data:
Interval Top:4030 ft.# Of Holes:109
Interval Bottom:5253 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)33
Total Gas Produced (MCF)26503
GOR803121
GOR DeterminationMCFE
Average BOE per Day12.605
Average MCFE per Day73.094

 Federal Financial Assurance  i

 Tribal Well  i No
