Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 8908 ft. Vertical TD: 8822 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062839 | Expiration Date: | 8/16/2007 | | Proposed Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 2274 FNL 2136 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 2274 FNL 2136 FWL | | Proposed Depth/Form: | 8824 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CRCRN , Formation: CORCORAN , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

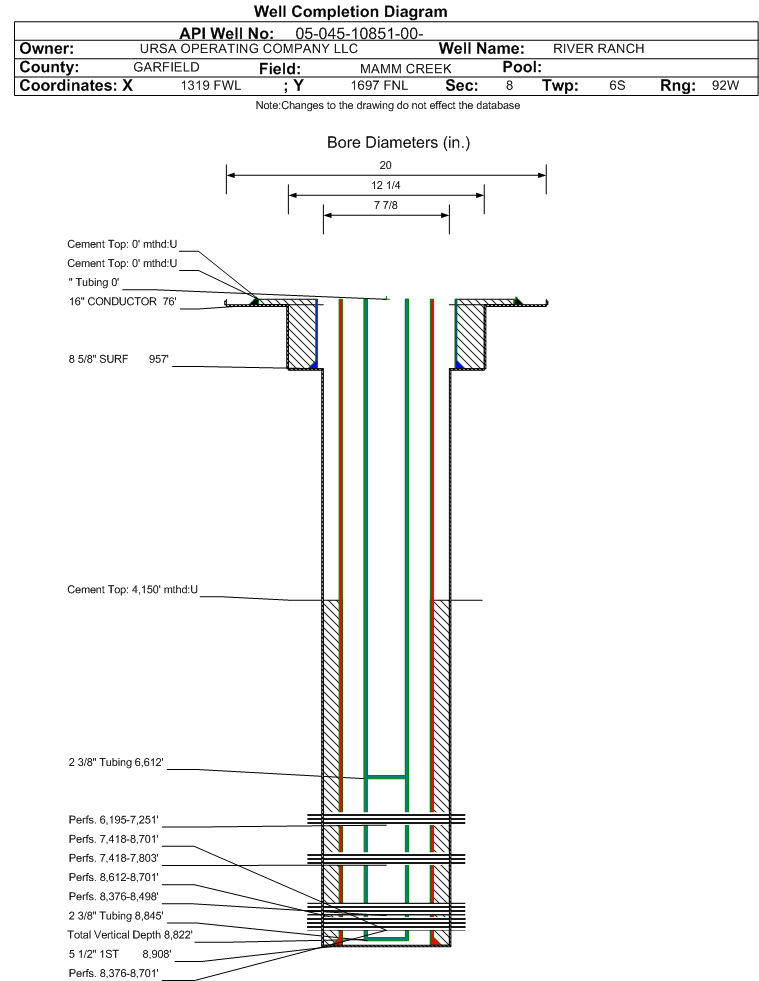

| Wellbore Completed | | Completion Date: | 2/12/2007 | | Spud Date: | 10/28/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8908 ft. | Measured PB depth: | 8855 ft. | | True Vertical TD: | 8822 ft. | True Vertical PB depth: | 8769 ft. | | Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 2274 FNL 2136 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 2274 FNL 2136 FWL | | Log Types: | HRI; DSN/SD; CBL/GR/CCL/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 76 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 351, Top: 0 ft., Bottom: 76 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 957 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 965 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8908 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1125, Top: 4150 ft., Bottom: 8908 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4184 ft. | | N | N | | CAMEO | 6751 ft. | | N | N | | ROLLINS | 7812 ft. | | N | N | | COZZETTE | 8357 ft. | | N | N | | CORCORAN | 8612 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 8612 ft. Interval Bottom: 8701 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 3/9/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/26/2007 | | Treatment Summary: | CORC-COZZ FRAC WITH 14,318 BBLS OF 2% KCL, 314,900 LBS 30/50 SAND AND 202,700 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8612 ft. | # Of Holes: | 376 | | Interval Bottom: | 8701 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 8376 ft. Interval Bottom: 8498 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 3/9/2007 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/26/2007 | | Treatment Summary: | CORC-COZZ FRAC WITH 14,318 BBLS OF 2% KCL, 314,900 LBS 30/50 SAND AND 202,700 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8376 ft. | # Of Holes: | 376 | | Interval Bottom: | 8498 ft. | Hole Size: | 0.42 in. |
|
Formation CZ-CR Formation Classification: GW Status: CM - 3/13/2007 Interval Top: 8376 ft. Interval Bottom: 8701 ft.| Completed Information for Formation COZZETTE-CORCORAN | | 1st Production Date: | 3/9/2007 | Choke Size: | 0.281 in. | | Formation Name: | COZZETTE-CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/26/2007 | | Treatment Summary: | COZZ-CORC- FRAC W/ 14,318 BBLS OF 2% KCL, 314,900# OF 30/50 SAND & 202,700# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8845 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/13/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 685 | | CALC_BBLS_H2O | 685 | | CALC_MCF_GAS | 743 | | CASING_PRESS | 2580 | | MCF_GAS | 743 | | TUBING_PRESS | 1386 |
| | Perforation Data: | | Interval Top: | 8376 ft. | # Of Holes: | 376 | | Interval Bottom: | 8701 ft. | Hole Size: | 0.42 in. |
|
Formation CMEO Formation Classification: GW Status: CM - 11/15/2007 Interval Top: 7418 ft. Interval Bottom: 7803 ft.| Completed Information for Formation CAMEO | | 1st Production Date: | 3/9/2007 | Choke Size: | | | Formation Name: | CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/27/2007 | | Treatment Summary: | CAMEO- FRAC W/ 18,884 BBLS OF 2% KCL, 432,000# OF 30/50 SAND & 283,200# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CMEO. |
| | Perforation Data: | | Interval Top: | 7418 ft. | # Of Holes: | 470 | | Interval Bottom: | 7803 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 3/13/2007 Interval Top: 7418 ft. Interval Bottom: 8701 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 3/9/2007 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/26/2007 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8845 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/13/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 685 | | BBLS_OIL | 0 | | BTU_GAS | 1023 | | CALC_BBLS_H2O | 685 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 743 | | CASING_PRESS | 2580 | | MCF_GAS | 743 | | TUBING_PRESS | 1386 |
| | Perforation Data: | | Interval Top: | 7418 ft. | # Of Holes: | 846 | | Interval Bottom: | 8701 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 6195 ft. Interval Bottom: 7251 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/9/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/12/2013 | Treatment End Date: | 4/13/2013 | | Treatment Summary: | WFCM - Frac'd with 109,174 bbls 2% KCL Slickwater, 60 bbls 7.5% HCL Acid and 788950 lbs 30/50 sand | | Total fluid used in treatment (bbls): | 109174 | Max pressure during treatment (psi): | 7957 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 4 | | Total acid used in treatment (bbls): | 60 | Min frac gradient (psi/ft): | 0.92 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 43178 | | Fresh water used in treatment (bbls): | 107946 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 788950 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 2/27/2007 | | Treatment Summary: | FRAC'D W/ 18,884 BBLS OF 2% KCL, 432,000# 30/50 SAND & 283,200 @ 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6612 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/20/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 300 | | BBLS_OIL | 6 | | BTU_GAS | 1180 | | CALC_BBLS_H2O | 300 | | CALC_BBLS_OIL | 6 | | CALC_GOR | 75833 | | CALC_MCF_GAS | 455 | | CASING_PRESS | 1079 | | GRAVITY_OIL | 52 | | MCF_GAS | 455 | | TUBING_PRESS | 456 |
| | Perforation Data: | | Interval Top: | 6195 ft. | # Of Holes: | 192 | | Interval Bottom: | 7251 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 358 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.168 |
| Average MCFE per Day | 0.969 |
