COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09500		Well Classification: GW Status: PR - 5/6/2005
Well Name/No:WILLIAMS #GM 314-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/6/2005
FacilityID:270242LocationID:334925
County:GARFIELD #045Location:NWSW 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5236 ft.
Basin:PICEANCE BASIN
Planned Location:1397FSL  1140 FWLLat/Long: 39.463429 / -108.063595Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463496 / -108.063793Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/6/2005             Measured TD: 6475 ft.    Vertical TD: 6342 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/6/2005
Wellbore PermitDIRECTIONAL
Permit #:20043133 Expiration Date:1/2/2006
Proposed Top PZ Location:Sec: Twp: Footage: 478 FSL  774 FWL
Bottom Hole Location:Sec: Twp: Footage: 478 FSL  774 FWL
Proposed Depth/Form:6649 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-10 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:4/10/2005
Spud Date:3/5/2005Spud Date Is:ACTUAL
Measured TD:6475 ft.Measured PB depth:6288 ft.
True Vertical TD:6342 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 478 FSL  774 FWL
Bottom Hole Location:Sec: Twp: Footage: 478 FSL  774 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

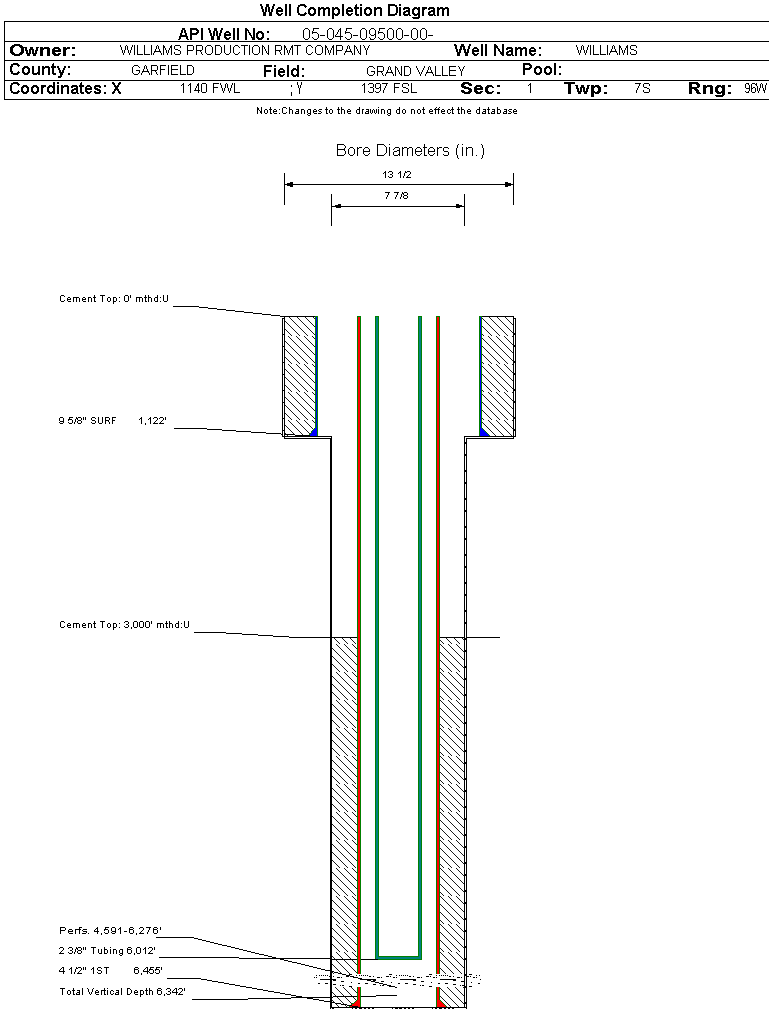

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1122 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1122 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6455 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 855, Top: 3000 ft., Bottom: 6455 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1531 ft.NN
FORT UNION1832 ft.NN
MESAVERDE3402 ft.NN
CAMEO5911 ft.NN
ROLLINS6397 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/6/2005                  Interval Top: 4591 ft.    Interval Bottom: 6276 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.234 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/10/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 623400# 30/50, 12562 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6012 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/6/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1428
CASING_PRESS 1342
MCF_GAS 1428
TUBING_PRESS 1231
Perforation Data:
Interval Top:4591 ft.# Of Holes:90
Interval Bottom:6276 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)20400
GOR755555
GOR DeterminationMCFE
Average BOE per Day9.710
Average MCFE per Day56.331

 Federal Financial Assurance  i

 Tribal Well  i No
