COGIS - WELL SCOUT CARD

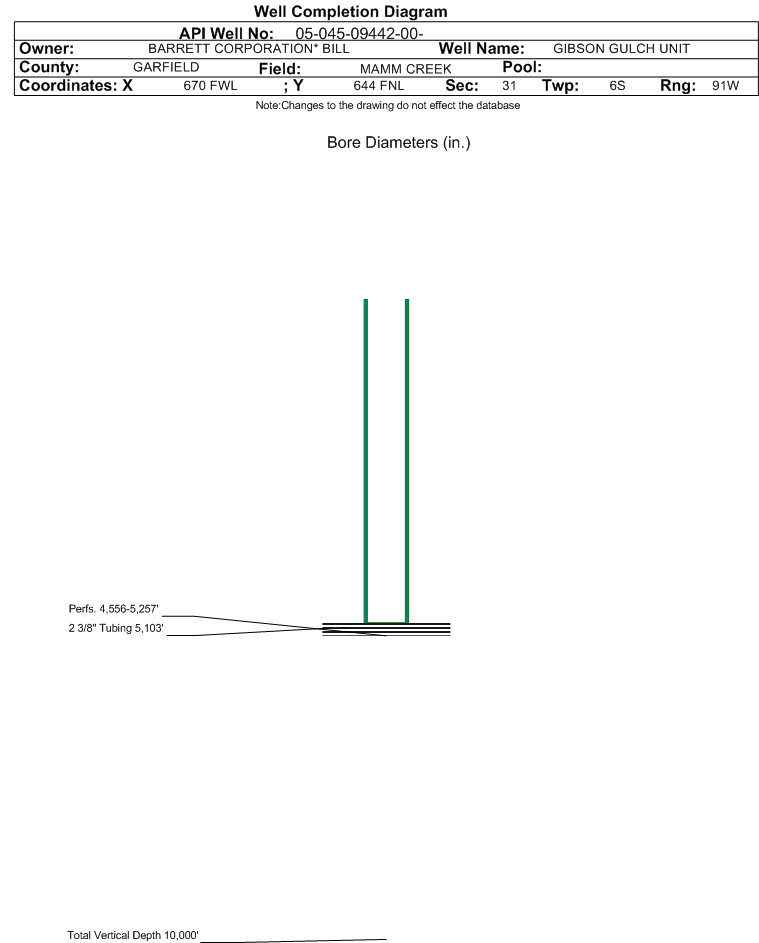

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09442		Well Classification: GW Status: PR - 4/4/2004
Well Name/No:GIBSON GULCH UNIT #5-31B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/4/2004
FacilityID:270053LocationID:335290
County:GARFIELD #045Location:NWNW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5953 ft.
Basin:PICEANCE BASIN
Planned Location:644FNL  670 FWLLat/Long: 39.489381 / -107.603621Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.489431 / -107.603475Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/4/2004             Measured TD: 5705 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/4/2004
Wellbore PermitDIRECTIONAL
Permit #:20032058 Expiration Date:11/9/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1980 FNL  670 FWL
Bottom Hole Location:Sec: Twp: Footage: 1980 FNL  670 FWL
Proposed Depth/Form:6022 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/31/2004
Spud Date:1/13/2004Spud Date Is:ACTUAL
Measured TD:5705 ft.Measured PB depth:5658 ft.
True Vertical TD:True Vertical PB depth:5335 ft.
Top PZ Location:Sec: Twp: Footage: 1980 FNL  670 FWL
Bottom Hole Location:Sec: Twp: Footage: 1980 FNL  670 FWL
Log Types:CBL/CCL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 740 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 740 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5704 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 1000 ft., Bottom: 5704 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3402 ft.NN
OHIO CREEK3402 ft.3920 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/4/2004                  Interval Top: 4556 ft.    Interval Bottom: 5257 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/31/2004
Treatment Summary:4930-5257 - FRAC'D W/245,000# SAND IN 4837 BBLS WATER; 4556-4740 - FRAC'D W/134,779# SAND IN 3487 BBLS WATER
Tubing Size:2.375 in.Tubing Setting Depth:5103 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/4/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 7
BBLS_OIL 3
BTU_GAS 1190
CALC_BBLS_H2O 7
CALC_BBLS_OIL 3
CALC_GOR 414000
CALC_MCF_GAS 1242
CASING_PRESS 1350
GRAVITY_OIL 40
MCF_GAS 1242
TUBING_PRESS 1260
Perforation Data:
Interval Top:4556 ft.# Of Holes:36
Interval Bottom:5257 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)2264
GOR188666
GOR DeterminationMCFE
Average BOE per Day1.098
Average MCFE per Day6.398

 Federal Financial Assurance  i

 Tribal Well  i No
