COGIS - WELL SCOUT CARD

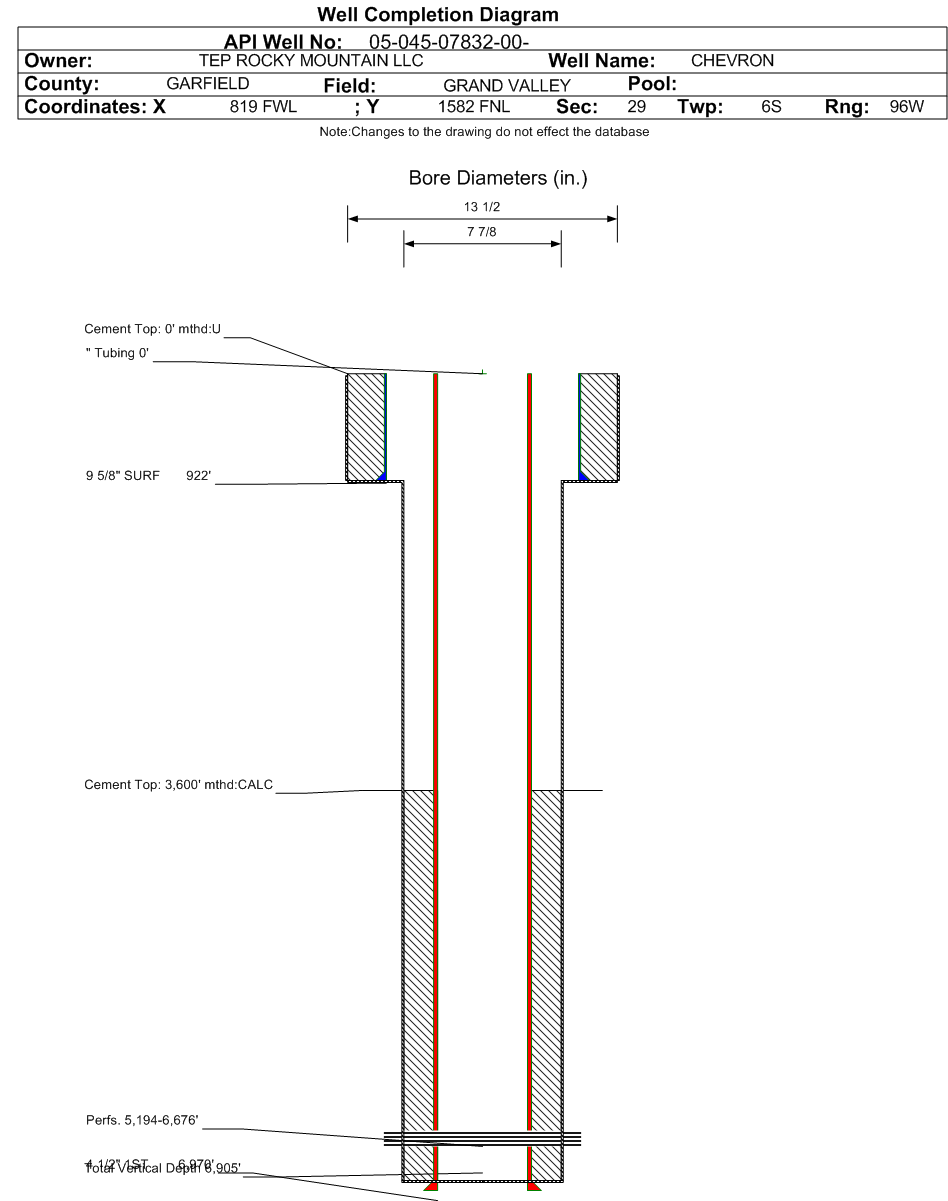

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07832		Well Classification: GW Status: PR - 2/8/2022
Well Name/No:CHEVRON #GM 11-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC56547
Facility Status:PRStatus Date2/8/2022
FacilityID:260219LocationID:335260
County:GARFIELD #045Location:SWNW 29 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5856 ft.
Basin:PICEANCE BASIN
Planned Location:1582FNL  819 FWLLat/Long: 39.498038 / -108.138937Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498065 / -108.138941Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/8/2022             Measured TD: 6973 ft.    Vertical TD: 6905 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/8/2022
Wellbore Permit
Permit #:011036 Expiration Date:5/24/2002
Proposed Top PZ Location:Sec: Twp: Footage: 860 FNL  525 FWL
Bottom Hole Location:Sec: Twp: Footage: 814 FNL  493 FWL
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:1/12/2002
Spud Date:10/30/2001Spud Date Is:ACTUAL
Measured TD:6973 ft.Measured PB depth:6884 ft.
True Vertical TD:6905 ft.True Vertical PB depth:6816 ft.
Top PZ Location:Sec: Twp: Footage: 860 FNL  525 FWL
Bottom Hole Location:Sec: Twp: Footage: 814 FNL  493 FWL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY WITH CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 922 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 922 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6970 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 685, Top: 3600 ft., Bottom: 6970 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2201 ft.NN
FORT UNION2541 ft.NN
MESAVERDE3911 ft.NN
CAMEO6444 ft.NN
ROLLINS6942 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/8/2022                  Interval Top: 5194 ft.    Interval Bottom: 6676 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/12/2002
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1078
CALC_BBLS_OIL 0
CALC_MCF_GAS 1026
CASING_PRESS 1612
MCF_GAS 1026
TUBING_PRESS 1276
Perforation Data:
Interval Top:5194 ft.# Of Holes:88
Interval Bottom:6676 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)14090
GOR704500
GOR DeterminationMCFE
Average BOE per Day6.714
Average MCFE per Day38.940

 Federal Financial Assurance  i Y

 Tribal Well  i No
