Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2020 Measured TD: 6750 ft. Vertical TD: 6725 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2020 | | Wellbore Permit | | | Permit #: | 990659 | Expiration Date: | 9/20/2000 | | Proposed Top PZ Location: | Sec:17 Twp: 6S 91W | Footage: 674 FSL 2047 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 91W | Footage: 850 FSL 2069 FEL | | Proposed Depth/Form: | 6205 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 320, Drill Unit: S2 |
| | |

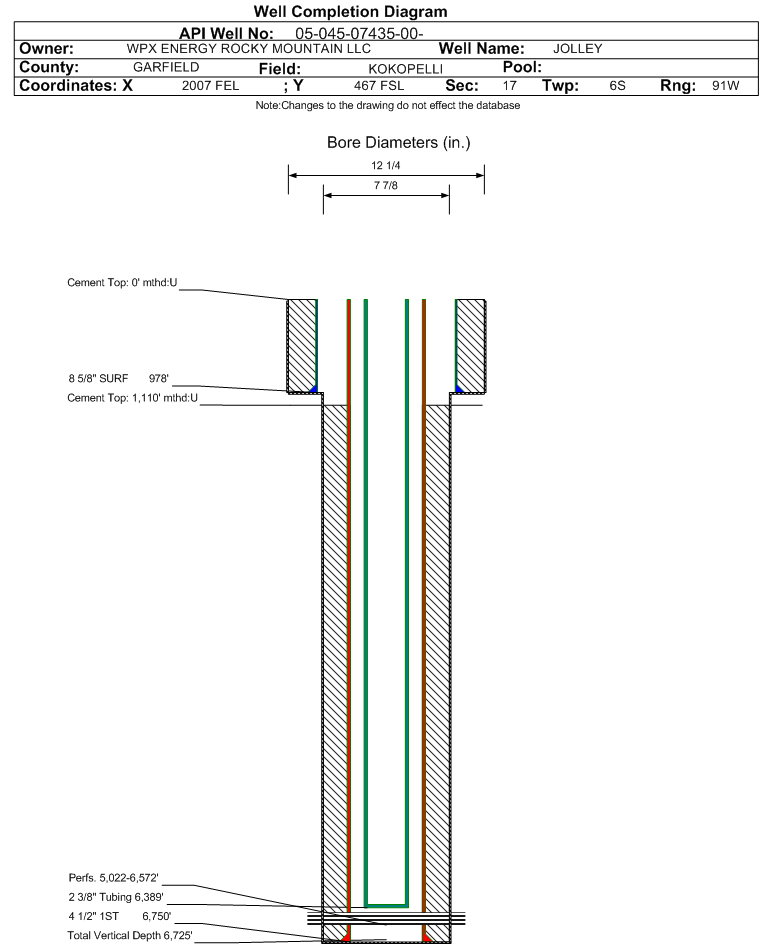

| Wellbore Completed | | Completion Date: | 2/19/2000 | | Spud Date: | 2/6/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 6750 ft. | Measured PB depth: | 6703 ft. | | True Vertical TD: | 6725 ft. | True Vertical PB depth: | 6678 ft. | | Top PZ Location: | Sec:17 Twp: 6S 91W | Footage: 674 FSL 2047 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 91W | Footage: 850 FSL 2069 FEL | | Log Types: | DUAL INDUCTION-NEUTRON DENSITY; SPECTRAL GAMMA RAY LOG | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 978 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 475, Top: 0 ft., Bottom: 978 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6750 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 1110 ft., Bottom: 6750 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 2462 ft., Depth: 2530 ft., Bottom: 2562 ft., Sacks: 100, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 2480 ft., Depth: 2480 ft., Bottom: 2580 ft., Sacks: 75, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3550 ft. | 5980 ft. | N | N | | COAL | 5980 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/1/2020 Interval Top: 5022 ft. Interval Bottom: 6572 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/6/2000 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/19/2000 | | Treatment Summary: | COMMINGLED THREE COMPLETIIONS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6389 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/7/2000 | Test Method: | FLOWING TO SALE | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 7 | | BTU_GAS | 1190 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 7 | | CALC_MCF_GAS | 477 | | CASING_PRESS | 890 | | MCF_GAS | 477 | | TUBING_PRESS | 600 |
| | Perforation Data: | | Interval Top: | 5022 ft. | # Of Holes: | 61 | | Interval Bottom: | 6572 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 8704 |
| GOR | 725333 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.142 |
| Average MCFE per Day | 24.022 |
